(058) - GENERATOR MOUNTING PARTS, (188) DIESEL ENGINE, FOR D27034 GENERATOR

Запчасти Case 450 (058) - GENERATOR MOUNTING PARTS, (188) DIESEL ENGINE, FOR D27034 GENERATOR (06) - ELECTRICAL SYSTEMS

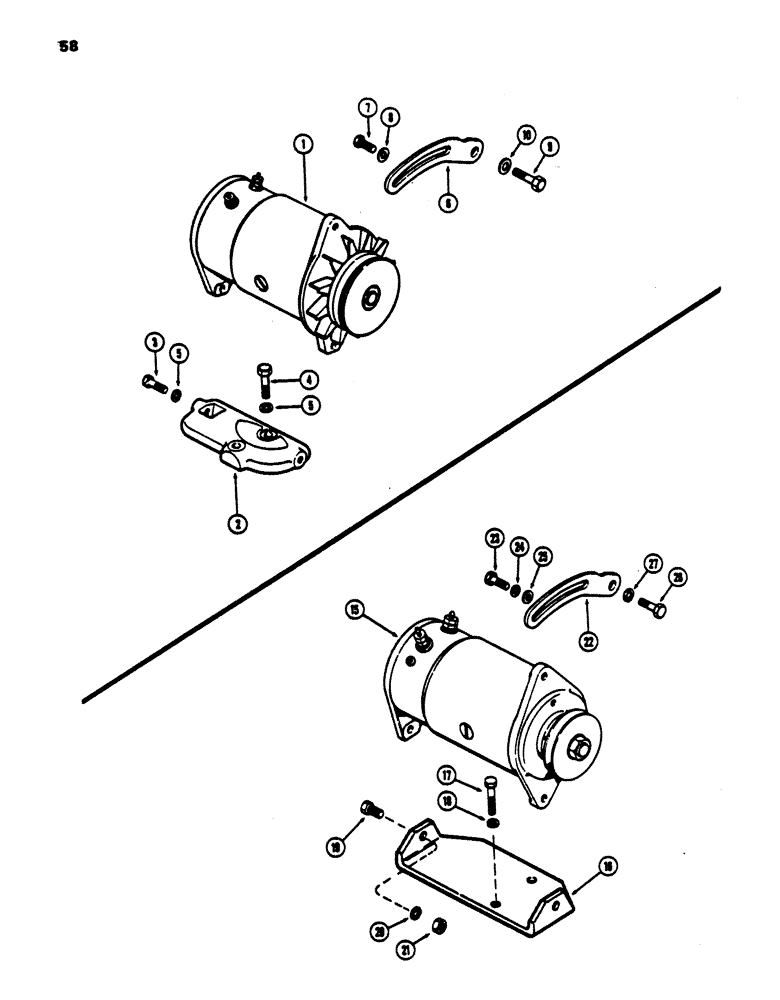

Схема запчастей Case 450 - (058) - GENERATOR MOUNTING PARTS, (188) DIESEL ENGINE, FOR D27034 GENERATOR (06) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D27034

GENERATOR

ASSY. - (Fig. 54)

1шт.

87297306

REMAN-GENERATOR

Remanufactured GENERATOR - N.A. Only

1шт.

87297307

CORE-GENERATOR

Return No, GENERATOR - N.A. Only

1шт.

2

A38746

BRACKET

- generator mounting

1шт.

3

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Gen. to brkt. Hex, 5/16"-18 x 1 1/8", G5

2шт.

4

113-126

BOLT

- brkt. to engine (5/16 x 1" N.C. hex.)

1шт.

4

113-127

X

BOLT - brkt. to engine (5/16 x 1-1/2" N.C. hex.)

1шт.

5

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

6

A37017

STRAP

- generator adjusting

1шт.

7

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Strap to gen. Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Strap to engine Hex, 3/8"-16 x 2", G5

1шт.

10

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

15

D34009

GENERATOR

ASSY. - ( Fig. 56), for D34009 generator

1шт.

16

D34012

BRACKET

- generator mounting, for D34009 generator

1шт.

17

113-125

X

BOLT - brkt. to engine (5/16 x 3/4" N.C. hex.), for D34009 generator

2шт.

18

92-5

LOCK WASHER,5/16"

WASHER - lock, , for D34009 generator 5/16"

3шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Gen. to bracket, for D34009 generator Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

20

95-6

WASHER,3/8"

- lock, for D34009 generator 3/8"

2шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex, for d34009 generator

2шт.

22

A37017

STRAP

- generator adjusting, D34009

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Strap to gen., for D34009 generator Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

WASHER - lock, , for D34009 generator 5/16"

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64"), for D34009 generator

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Strap to engine, for D34009 generator Hex, 3/8"-16 x 2", G5

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, , for D34009 generator 3/8"

1шт.
