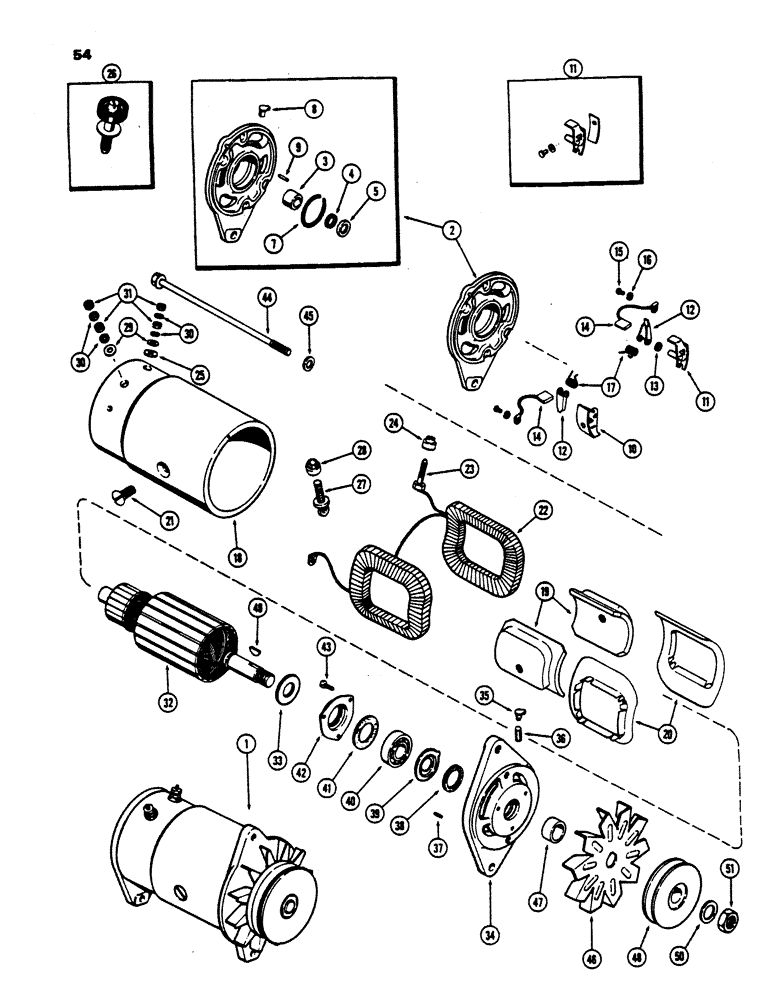

Запчасти Case 450 (054) - D27034 GENERATOR, (188) DIESEL ENGINE, VENTILATED TYPE (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASSY. - (Delco #1100404), Includes: Ref#2 - 9

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

1

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

1

104018A1C

CORE-GENERATOR

Return Number

1шт.

2

A40679

HOUSING

FRAME ASSY. - commutator end, Includes: Ref. 3 - 9

1шт.

3

A25459

BUSHING

BUSHING - armature shaft

1шт.

4

R16157

WASHER

WASHER - felt

1шт.

5

R16156

CUP

CUP - felt retainer

1шт.

7

A41417

WICK

WICK - oil

1шт.

8

219-203

OILER

OILER

1шт.

9

R15095

SPARE PART PIN - dowel, end frame locating

1шт.

10

A40703

NOZZLE HOLDER

HOLDER ASSY. - brush (grounded)

1шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - brush (insulated)

1шт.

12

R15090

ARM

ARM - brush pressure

2шт.

13

A43328

SPARE PART WASHER - brush arm spacer

2шт.

14

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

15

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6 x 1/4" N.C., rd. hd.)

2шт.

16

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

17

R16161

VALVE SPRING

SPRING - brush arm tension

2шт.

18

NSS

NOT SOLD SEPARAT

FRAME - generator body

1шт.

19

A40700

SPARE PART SHOE - pole

2шт.

20

R16152

INSULATOR

INSULATION - coil

2шт.

21

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.F. flat hd.)

2шт.

22

R16149

COIL ASSY.

COIL ASSY. - field, Includes: Ref.#23

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 26)

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field term. (Order ref. 26)

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - insulation, field term. (Order ref. 26)

1шт.

26

A40702

STUD

STUD KIT

1шт.

27

A40701

STUD

STUD - armature terminal

1шт.

28

R16147

BUSHING

BUSHING - insulation, armature terminal

1шт.

29

A41927

WASHER

WASHER - terminal studs, plain

2шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

31

129-18

NUT,#12-24

NUT - terminal studs (#12 N.C. hex.)

4шт.

32

A25428

ARM ASSY.

ARMATURE

1шт.

33

R15100

SPARE PART WASHER - thrust, drive end

1шт.

34

A25442

HOUSING

FRAME ASSY. - drive end, Includes: Ref.#35 & 36

1шт.

35

219-202

OILER

OILER

1шт.

36

R16165

SPARE PART WICK - oiler

1шт.

37

R15041

SPARE PART PIN - dowel, drive end locating

1шт.

38

R16168

WASHER

SEAL - felt, drive end

1шт.

39

R16169

LARGE PLATE

PLATE, LARGE PLATE - felt seal & bearing retainer

1шт.

40

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

41

R16170

GASKET

GASKET - bearing retainer plate

1шт.

42

R15101

PLATE

PLATE - bearing retainer

1шт.

43

A41959

SCREW,#10 - 32 x 3/8"

SCREW - bearing retainer plate

3шт.

44

A40129

BOLT

BOLT - thru

2шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

46

A25449

FAN

FAN - ventilating

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25454

PULLEY

PULLEY - generator drive

1шт.

49

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8"

1шт.

50

R16171

SPRING WASHER

WASHER - 11/16" lock

1шт.

51

A25546

NUT

NUT - pulley retaining

1шт.
