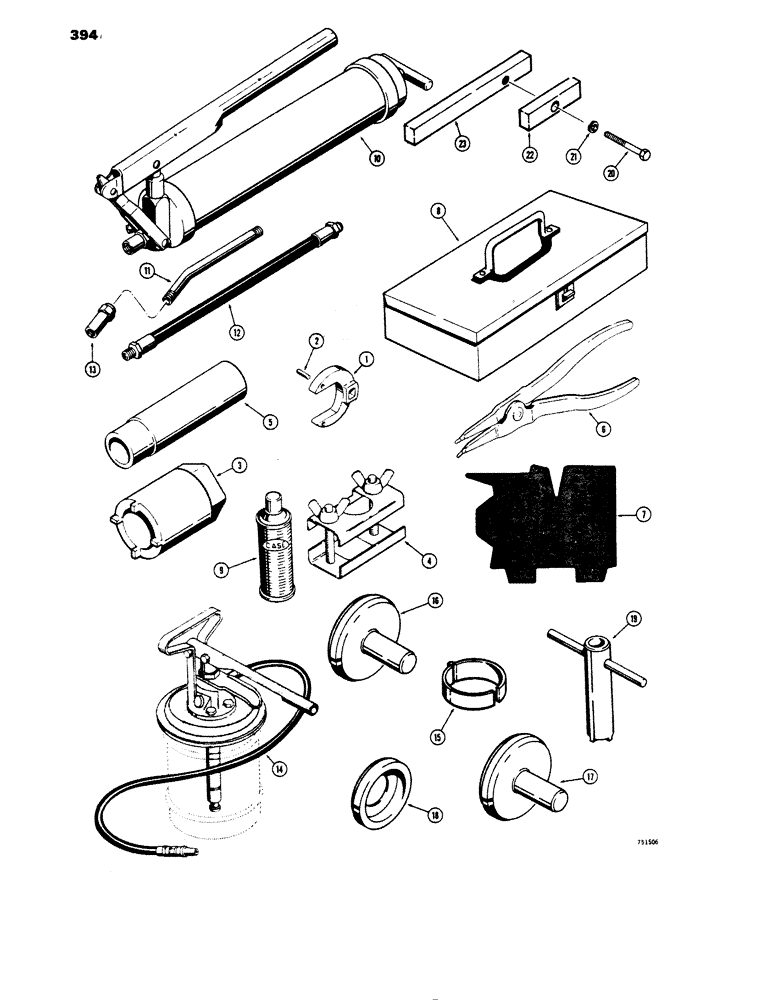

Запчасти Case 450 (394) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

D44110

OPEN END WRENCH

WRENCH SET - spanner (For removing and installing packing glands in threades gland type hydraulic cylinders), Includes: Ref.#1 - 2

1шт.

1

D44111

OPEN END WRENCH

WRENCH - spanner, 2-1/2' I.D. cylinder with 1-1/4" or 1-1/2" dia. piston rods

1шт.

1

D44112

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-1/2" dia. piston rod

1шт.

1

D44113

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-3/4" dia. piston rod

1шт.

1

D44114

OPEN END WRENCH

WRENCH - spanner, 3-1/2" I.D. cylinder with 1-3/4" or 2" dia. piston rods

1шт.

1

G33235

OPEN END WRENCH

WRENCH - spanner, 4-1/2" or 5" I.D. cylinders with dia. piston rod

1шт.

1

G33234

OPEN END WRENCH

WRENCH - spanner, 4" I.D. cylinder with 2" or 2-1/4" dia. piston rod, Includes: Ref.#2

1шт.

2

D30107

PIN

- spanner wrench, 2-1/2" through 4" I.D. cylinders

3шт.

2

D44118

SPARE PART

PIN - spanner wrench, G33234 and G33235 wrenchs

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader and dozer control valves, Includes: Ref.#3, 4 & 5

1шт.

3

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

4

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

5

NSS

NOT SOLD SEPARAT

TOOL - snap ring installing

1шт.

6

D32049

TOOL

PLIERS - retaining, snap ring

1шт.

7

D44717

NO LONGER SERVICED

GAUGE - wear, track components, Models with 25 tooth D43349 sprocket or 25 tooth D43409 sprocket, Serial Range: -3045010

1шт.

7

R24739

GAUGE

- wear, track components (Sn. 3039110 thru 3050800) Models with D43409 or D50421 27 tooth sprockets

1шт.

7

R37317

ELECTRICAL GAUGE

GAUGE - wear, track components, Start Serial: 3050801

1шт.

8

CAS10079

TOOL

KIT - optional, includes one each: 6"slip joint plier, 1-5/16" x 4 screwdriver, 1-5/16" x 6" screwdriver, 1-1/2 " ball peen hammer, set of 7 double open end wrenches (3/8" - 1-1/8") 12" adjustable wrench, taper punch, 1/2" cut chisel, 18" jimmy bar

1шт.

9

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

10

219-101

GUN, GREASE

GREASE GUN - complete

1шт.

11

NSS

NOT SOLD SEPARAT

EXTENSION - nozzle

1шт.

12

D28957

HOSE

- flex (12" long)

1шт.

13

D28958

COUPLING, QUICK, FEM

COUPLING - hydraulic

1шт.

14

71261

GUN - grease, bucket type

1шт.

15

R34490

TOOL - seal installation, R33565 roller

1шт.

16

A50387

DRIVER - seal, A50244 or A50545 final drive seal kits

1шт.

17

A43008

TOOL

DRIVER - spacer, A50555 final drive seal kit

1шт.

18

A43007

TOOL

DRIVER - seal, A50555 final drive seal kit

1шт.

19

D40608

OPEN END WRENCH

TOOL - seal remover, valve

1шт.

R35858

KIT - track seal installation, Includes: Ref.#20 - 23

1шт.

20

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

2шт.

22

R35857

BAR

- small

2шт.

23

R35856

BAR - large, tapped

2шт.
