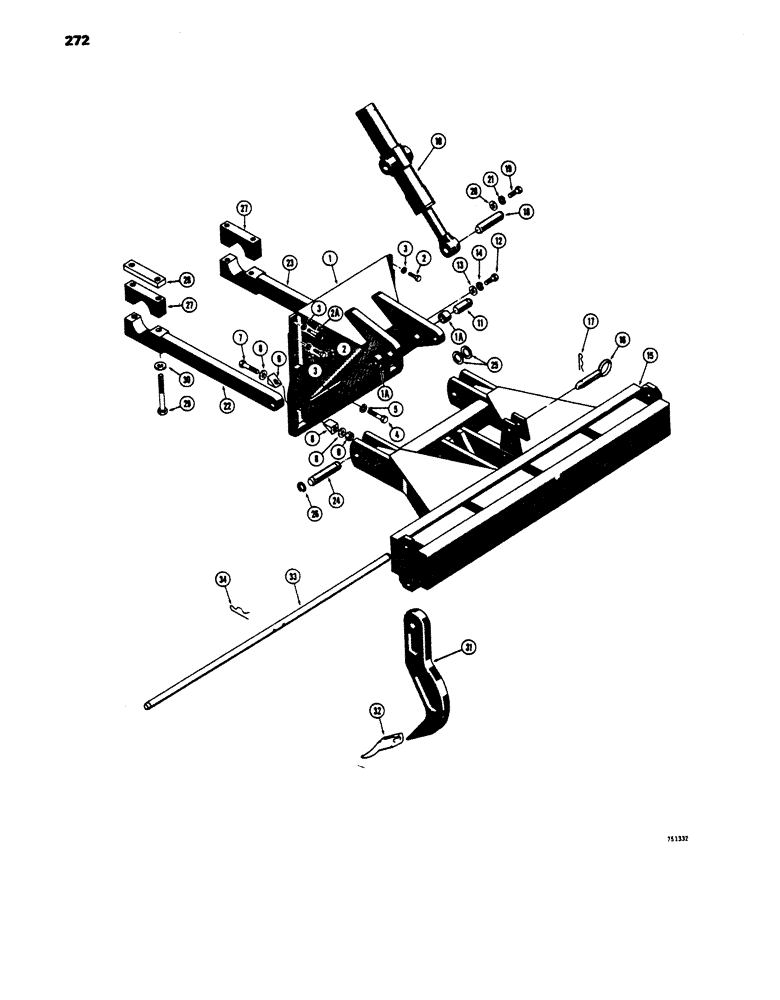

Запчасти Case 450 (272) - RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

D34686

PLATE

- mounting, ripper, Serial Range: -3045010

1шт.

1

R24190

PLATE

- mounting, ripper, Includes: Ref.#1A, Start Serial: 3040510

1шт.

1a

D32890

BUSHING

- D34686 and R24190 plates

2шт.

2

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

HHCS - 5/8" - 11 NC x 1-1/2"

4шт.

2a

166-131

BOLT,12 Pt Flg, 3/4"-10 x 1 1/4", G8

- ferry head, 3/4" - 10 x 1 1/4"

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

4

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

D34678

BLOCK

- wedge

4шт.

7

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

8

D34705

WASHER

- special (1/2")

4шт.

9

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" - 13 NC

2шт.

10

REF

INSTRUCTION

CYLINDER - ripper (See Fig. 340 for cylinders)

1шт.

11

D34706

PIN,31.75mm OD x 60.33mm L

- trunnion

2шт.

12

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

13

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special (5/8")

2шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

D35886

FRAME

- ripper

1шт.

16

D34715

PIN

ASSEMBLY - latch

1шт.

17

136-112

PIN

- hair pin

1шт.

18

D36174

AXLE PIN,31.75mm OD x 123.83mm L

PIN - attaching, cylinder rod to ripper frame

1шт.

19

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

20

D25022

WASHER

- special (1/2")

2шт.

21

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

22

D34743

ARM

- mounting, ripper (L.H.) Loader-Ripper Models only

1шт.

Ref. 22 & 23, Center to Center 29 1/4".

1шт.

D34693

ARM - mounting, ripper (L.H.) Dozer-Ripper Models only

1шт.

23

D34744

ARM - mounting, ripper (R.H.) Loader-Ripper Models only

1шт.

Ref. 22 & 23, Center to Center 29 1/4".

1шт.

D34693

ARM - mounting, ripper (R.H.) Dozer-Ripper Models only

1шт.

24

D36614

PIN,38.1mm OD x 107.95mm L

- attaching, ripper frame to mounting arms

2шт.

25

R15389

SPACER

- mounting pin

2шт.

26

D26918

SNAP RING,#125, Ext

RING, Snap, , mounting pin #125, Ext

4шт.

27

D34663

CLAMP

- mounting arm

2шт.

28

D34722

BLOCK

- tapped

2шт.

29

13-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

HHCS - 7/8" - 9 NC x 7-1/2"

4шт.

30

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special (7/8")

4шт.

31

D35885

SHANK

- tooth, ripper

3шт.

32

R33815

POINT

TOOTH - ripper

3шт.

33

D35900

ROD

- attaching, ripper teeth

1шт.

34

136-112

PIN

- hair pin

2шт.
