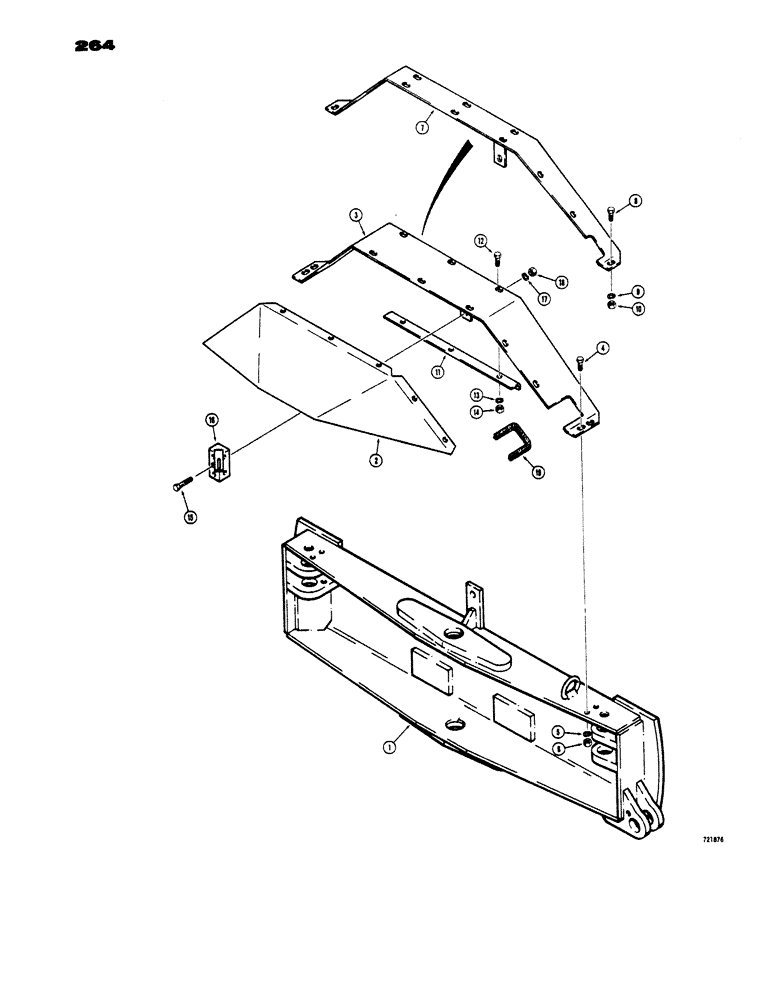

Запчасти Case 450 (264) - HYDRAULIC GUARDS - POWER ANGLE TILT DOZER, MODELS WITH 95-1/2" WIDE DOZING BLADE (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

BEAM - leveling (Parts list Fig. 262)

1шт.

2

D51271

GUARD - hood

1шт.

3

D51266

GUARD - mounting (Early production 6-5/16" wide)

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

7

R24065

GUARD - mounting (Late production 3-13/32" wide)

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

11

D51322

ANGLE - reinforcement, guard

1шт.

12

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 1/2" - 13 NC x 1/2"

10шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

10шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

10шт.

15

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

16

D36202

BLOCK

- manifold, front

1шт.

17

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

1шт.

19

D33500

LINING

TRIM - hose guard, rubber composition, Serial Range: (Cut-length)

1шт.
