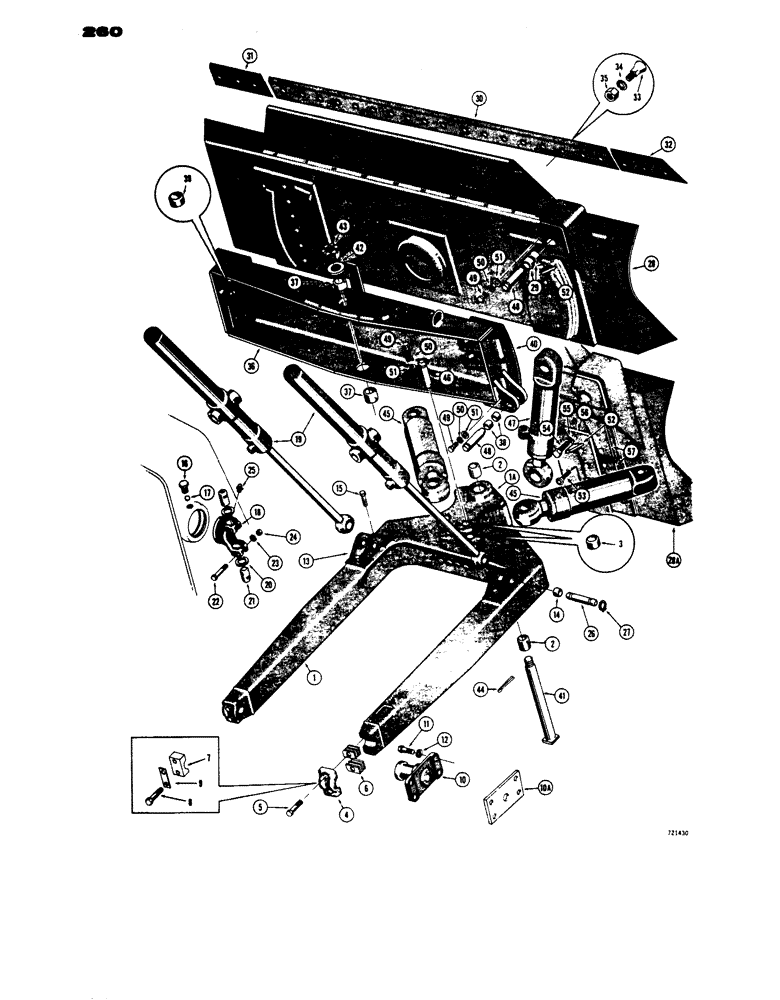

Запчасти Case 450 (260) - POWER ANGLE TILT DOZER, MODELS WITH 95 1/2" WIDE DOZING BLADE (05) - UPPERSTRUCTURE CHASSIS

1

D34786

"C" FRAME - Power Angle-Tilt Dozer, Includes: Ref.#1A - 4

1шт.

On the end where ref # 4 fits on., the weldment part number is D34798.

1шт.

1a

D14319

KIT - "C" frame reinforcement

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- "C" frame, blade mounting

2шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- "C" frame, angling cylinder mounting

4шт.

4

NSS

NOT SOLD SEPARAT

CAP - end, "C" frame (For service, use D40378 kit)

2шт.

5

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

6

D34794

SHIM,1/32" Thk

"C" frame mounting 1/32" Thk

1шт.

D40378

CAP

KIT - end cap, Includes: Ref.#7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

CAP - end, "C" frame

1шт.

8

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

9

D40377

PLATE - lock

1шт.

10

D34793

TRUNNION

- push, "C" frame mounting (50" Gauge models)

2шт.

10

D50535

TRUNNION

- push, "C" frame mounting (52" Gauge models)

2шт.

10a

R27967

SPACER

- trunnion, Start Serial: 3050801

2шт.

11

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

, Serial Range: -3050801

8шт.

11

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

, Start Serial: 3050801

8шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

D37113

BRACKET

- lift cylinders to "C" frame, Includes: Ref.#14

2шт.

14

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

- lift cylinder bracket

2шт.

15

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

16

D28481

PLUG

- special

2шт.

17

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

18

D36155

TRUNNION

- inner race

2шт.

The race for the Trunnion is D31317.

1шт.

19

REF

INSTRUCTION

CYLINDER - lift (See Fig. 338 for cylinders)

2шт.

20

D24516

WASHER

- thrust

4шт.

21

D24508

PIN,31.74mm OD x 50.8mm L

- trunnion to lift cylinder

4шт.

22

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

23

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

26

D34797

PIN

- mounting, lift cylinder to "C" frame

2шт.

27

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retainer

4шт.

D34787

MOLDBOARD ASSEMBLY - dozer, When stock is exhausted, order D48003 moldboard and Refs. 53 - 57 for service, Serial Range: -3040902

1шт.

D48003

MOLDBOARD ASSEMBLY - dozer, Start Serial: 3040902

1шт.

28

NSS

NOT SOLD SEPARAT

MOLDBOARD - dozer (Used in D34787 moldboard only)

1шт.

Ring and plate D34855 Ring and D34854 Plate.

1шт.

28a

NSS

NOT SOLD SEPARAT

MOLDBOARD - Power Angle-Tilt Dozer (Used in D48003 moldboard only), Includes: Ref.#29

1шт.

29

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- moldboard, tilt cylinder mounting ears

2шт.

30

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

31

D34841

BLADE

- cutting, L.H.

1шт.

D43406

EDGE, CUTTING

BLADE - cutting, L.H. (Optional cast)

1шт.

32

D34842

BLADE

- cutting, R.H.

1шт.

D43407

EDGE, CUTTING

BLADE - cutting, R.H. (Optional cast)

1шт.

33

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

24шт.

34

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

24шт.

35

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

24шт.

36

D34788

BEAM ASSY.

BEAM - leveling, complete, Includes: Ref.#37 - 40

1шт.

Inner race is P/N D34869

1шт.

37

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- leveling beam, center

2шт.

38

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- leveling beam, tilt cylinder mounting ears

4шт.

39

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- leveling beam, angling cylinder mounting ears

4шт.

40

D34868

PLATE

- guide

2шт.

41

D34789

AXLE PIN

PIN - swivel

1шт.

42

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- flat (1-1/2")

1шт.

43

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex., slotted (1-1/2" - 6 NC)

1шт.

44

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

45

REF

INSTRUCTION

CYLINDER - angling (See Fig. 338 for cylinders)

2шт.

46

D34795

AXLE PIN,35.87mm OD x 136.4mm L

PIN - mounting, angling cylinder

4шт.

47

REF

INSTRUCTION

CYLINDER - tilt (See Fig. 340 for cylinders)

1шт.

48

D34796

PIN

- mounting, tilt cylinder

2шт.

49

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

51

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat (5/8")

6шт.

D15837

KIT

- moldboard guide, Includes: Ref. #52 - 58

1шт.

52

D42402

GAUGE

- indicator, blade level

1шт.

53

164-81

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 1 1/2"

SCREW - hex. socket head (5/8" - 11 NC x 1-1/2") Used in lower 4 holes of R.H. guide only

4шт.

54

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

56

D47764

PLATE ASSY.

GUIDE PLATE - leveling beam

2шт.

57

D47911

SHIM,.0359" Thk

Guide plate .0359" Thk

1шт.

58

NSS

NOT SOLD SEPARAT

PLATE - anchor (Not shown)

2шт.
