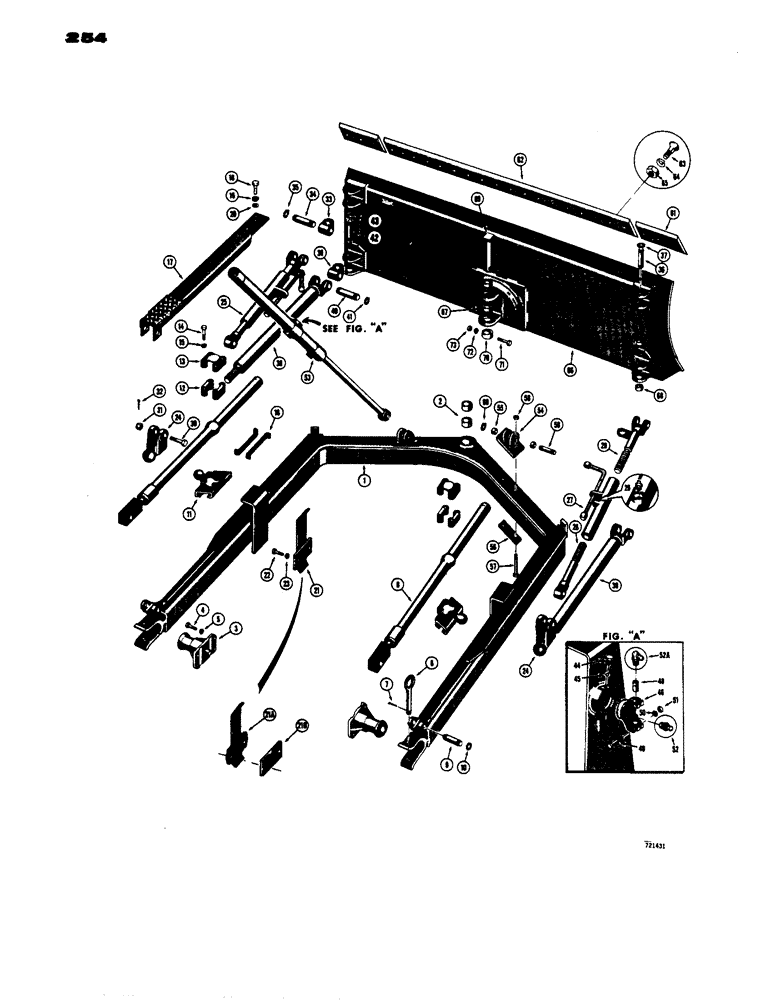

Запчасти Case 450 (254) - POWER ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D34300

"C" FRAME - Power Angling Dozer, Includes: Ref.#2

1шт.

2

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- "C" frame

2шт.

3

D34307

TRUNNION - push, Serial Range: -3050801

2шт.

3

D34307

TRUNNION - push, Start Serial: 3050801

2шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

D34313

PIN

- mounting, "C" frame

2шт.

7

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

8

REF

INSTRUCTION

CYLINDER - angling (See Fig. 338 for cylinders)

2шт.

9

D34315

PIN

- mounting

2шт.

10

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

4шт.

11

D34305

BRACKET

- slide, L.H. (Includes: Ref. # 12 -15

1шт.

D34306

BRACKET

- slide, R.H.

1шт.

12

D34364

SHIM

- slide bracket

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - slide bracket

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

16

D34314

STRIP

- wear, slide bracket

4шт.

17

D34308

GUARD ASSY.

GUARD - angling cylinder (L.H.)

1шт.

D34309

GUARD ASSY.

GUARD - angling cylinder (R.H.)

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

20

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

21

D34310

BRACKET - rub, Serial Range: -3050801

2шт.

21a

R27960

BRACKET

- rub, Start Serial: 3050801

2шт.

21b

R27963

SPACER - R27960 bracket only

2шт.

22

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(D34310 bracket) Hex, 5/8"-11 x 2", G5

4шт.

22

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

HHCS - 5/8" - 11 NC x 1-1/2" (R27960 bracket)

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

D34311

BRACKET

- strut, R.H.

1шт.

D34312

BRACKET

- strut, L.H.

1шт.

25

D34303

SHAFT

STRUT - upper, complete, Includes: Ref.#26 - 29

2шт.

26

D34360

SCREW

- strut, eye

1шт.

27

NSS

NOT SOLD SEPARAT

TURNBUCKLE - strut

1шт.

28

D34361

YOKE

SCREW - strut, yoke

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

30

D32802

BOLT

- special

2шт.

31

25-2316

SLOTTED NUT

- hex., special

2шт.

32

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

33

D35443

UNIVERSAL JOINT

JOINT - universal, moldboard attaching

2шт.

34

D25075

PIN

- attaching, upper strut to universal joint

2шт.

35

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

4шт.

36

D34316

PIN

- attaching, universal, Serial Range: join-moldboard

2шт.

37

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

38

D34304

STAY

STRUT - lower

2шт.

39

D35443

UNIVERSAL JOINT

JOINT - universal, moldboard attaching

2шт.

40

D25075

PIN

- attaching, lower strut to universal joint

2шт.

41

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

4шт.

42

D34316

PIN

- attaching, universal, Serial Range: joint-moldboard

2шт.

43

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

4шт.

44

D28481

PLUG

- special

2шт.

45

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

46

D27045

RACE

TRUNNION - inner race

2шт.

See illustration Fig. A Trunnion Ref. 46

1шт.

Ref.46 Yoke width is 4-5/8"

1шт.

The race is P/N D31317

1шт.

48

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, lift cylinder

4шт.

49

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

50

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

4шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

4шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

52a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

53

REF

INSTRUCTION

CYLINDER - lift (See Fig. 339 for cylinders)

2шт.

54

D36531

BRACKET

- lift cylinder (R.H.), Includes: Ref.#55

1шт.

55

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- bracket, lift cylinder

2шт.

D36530

BRACKET

- lift cylinder mounting (L.H.), Includes: P/N 34359

1шт.

34359

X

BUSHING - bracket, lift cylinder

2шт.

56

D36529

PLATE

- backing

2шт.

57

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

HHCS - 5/8" - 11 NC x 6-1/2"

4шт.

58

25-1010

NUT,5/8"-11, G5

4шт.

59

D34317

PIN

- mounting, lift cylinder to "C" frame

2шт.

60

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, D34317 pin

4шт.

D34299

MOLDBOARD - complete, Includes: Ref.#61 - 68

1шт.

61

D34323

END

BLADE - cutting, end

2шт.

D43406

EDGE, CUTTING

BLADE - cutting, L.H. (Optional cast)

1шт.

D43407

EDGE, CUTTING

BLADE - cutting, R.H. (Optional cast)

1шт.

62

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

63

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 12 NC x 1-3/4")

24шт.

64

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

24шт.

65

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

24шт.

66

NSS

NOT SOLD SEPARAT

MOLDBOARD - Includes: Ref.#67 and 68

1шт.

67

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- moldboard, "C" frame mounting

2шт.

68

D34337

BUSHING

- moldboard, strut mounting

8шт.

69

D34318

PIN

- mounting, moldboard to "C" frame

1шт.

70

D34319

NUT

COLLAR - mounting pin

1шт.

71

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

72

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock 3/8"

1шт.

73

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

1шт.
