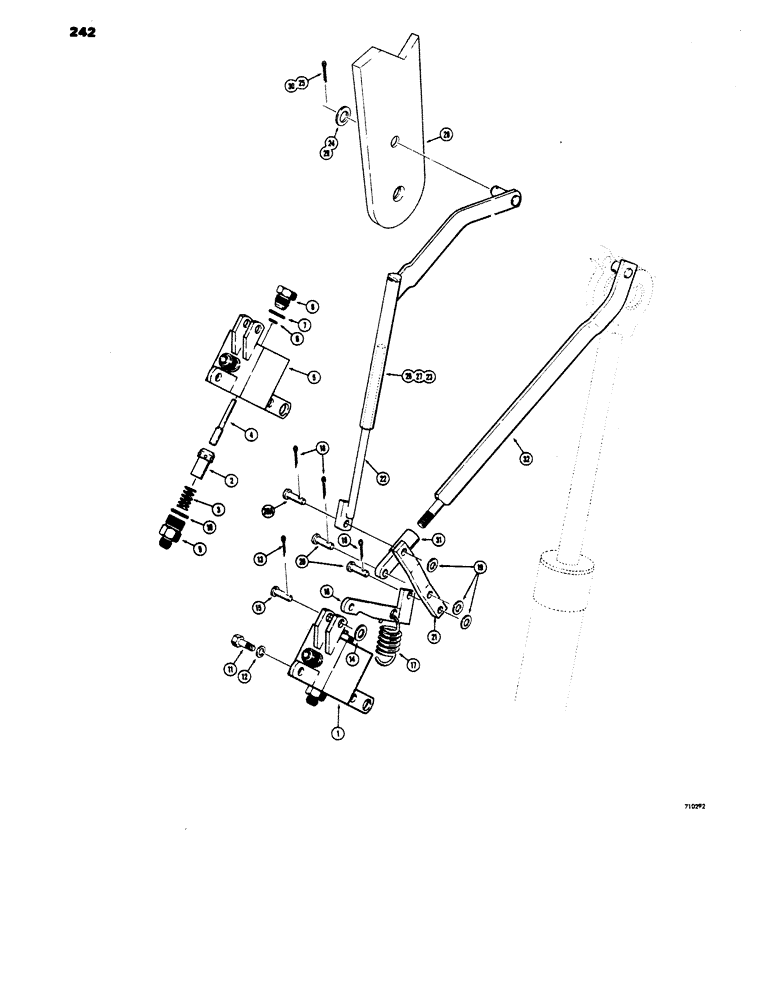

Запчасти Case 450 (242) - LOADER ANTI-ROLLBACK PARTS, USED BEFORE TRACTOR SN. 3056521 (05) - UPPERSTRUCTURE CHASSIS

1

D43550

VALVE

- anti-rollback, hydraulic lock, Includes: Ref.#2 - 10

1шт.

2

D41036

FITTING

RESTRICTOR - check valve

1шт.

3

D43831

SPRING

- check valve

1шт.

4

D41060

PLUNGER

- check valve

1шт.

5

D43549

VALVE

BODY - valve

1шт.

6

D41038

SEAL

- "O" ring, Disagrin

1шт.

8

D41051

GLAND

- valve

1шт.

9

D43896

ADAPTER - special, Includes: Ref.#10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

13

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

14

195-25

WASHER,3/8"

- med. sect. lock () 3/8"

1шт.

15

D42809

PIN

- valve control, Serial Range: lever-valve

1шт.

16

D41059

LEVER

- anti-rollback control at valve

1шт.

17

D41041

SPRING

- lever return

1шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

19

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

20a

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - clevis (3/8" x 1-1/4")

1шт.

21

D43128

- connecting, rollback adjustment rod and push rod

1шт.

22

D43127

ROD

- push, valve closing

1шт.

23

D43131

TUBE - push rod engagement For service use 1 - D45566 kit, Serial Range: -3038739

1шт.

D45566

TUBE

KIT - push rod repair (D43131 tube), Includes: Ref.#24 - 26

1шт.

24

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

25

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

26

NLS

NO LONGER SERVICED

TUBE - push link

1шт.

27

NLS

NO LONGER SERVICED

TUBE - push link, Start Serial: 3038739

1шт.

28

D44628

LINK

- inner (R.H.)

1шт.

29

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

30

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

31

D41044

ROD

END - rollback adjusting

1шт.

32

D41066

ROD

- rollback adjustment

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.
