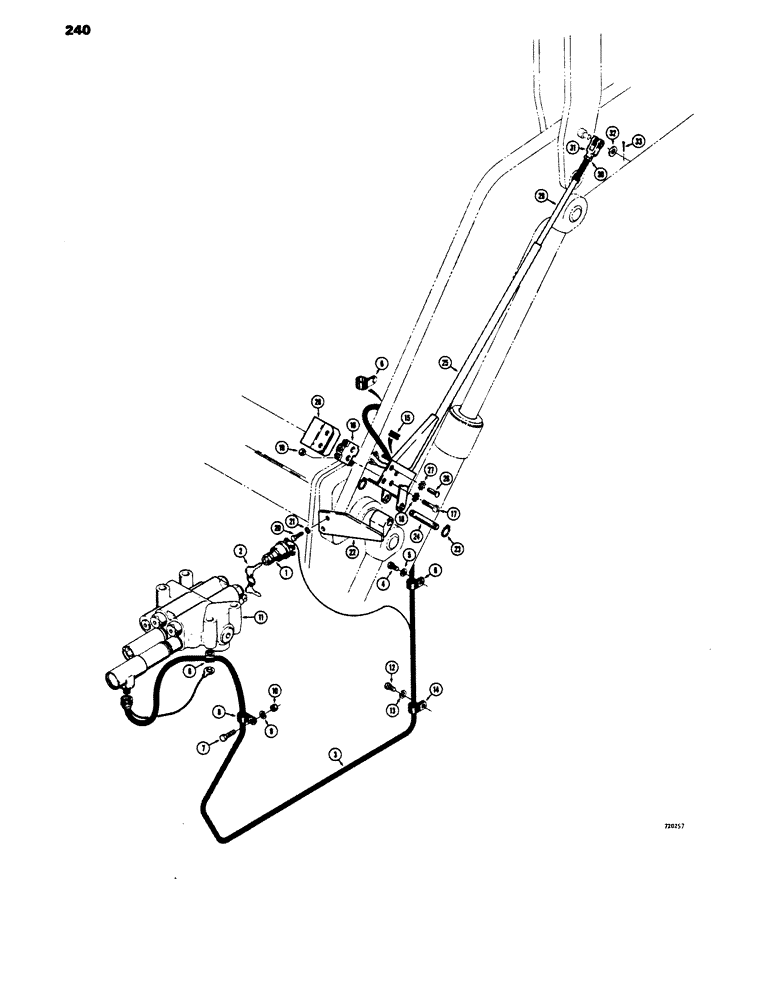

Запчасти Case 450 (240) - LOADER RETURN TO DIG PARTS, USED TRACTOR SN. 3048572 THRU 3056521 (05) - UPPERSTRUCTURE CHASSIS

D35092

SWITCH

AND KEY - electrical, Includes: Ref.#1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, pair

1шт.

3

R24133

HARNESS

- electrical, wire

1шт.

4

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

6

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness

2шт.

9

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

1шт.

11

REF

INSTRUCTION

VALVE - loader control (See Figs. 290, 292 and 296 for proper valves)

1шт.

12

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

14

80049853

YOKE

- harness

1шт.

15

A23870

GROMMET

- rubber

1шт.

16

D40921

SWITCH

- limit

1шт.

17

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- machine, fillister head (#6 - 32 NC x 1-1/2")

2шт.

18

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

19

129-15

NUT,#6-32

2шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

22

R24217

BRACKET

- limit switch box

1шт.

23

A11538

SNAP RING,#50, Ext

Ring, Snap, , pin #50, Ext

2шт.

24

R24214

PIN

- mounting, link

1шт.

25

R24220

SUPPORT

TUBE AND BOX - rod and switch support

1шт.

26

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- machine, round head (#8 - 32 NC x 5/16")

2шт.

27

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

28

R24212

COVER

- switch

1шт.

29

R24221

ROD

- return-to-dig

1шт.

30

25-112

NUT

- hex. (3/4" - 16 NF)

1шт.

31

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE END - threaded

1шт.

32

195-45

WASHER,3/4"

1шт.

33

132-70

PIN

- cotter (5/32" x 1-1/8")

1шт.
