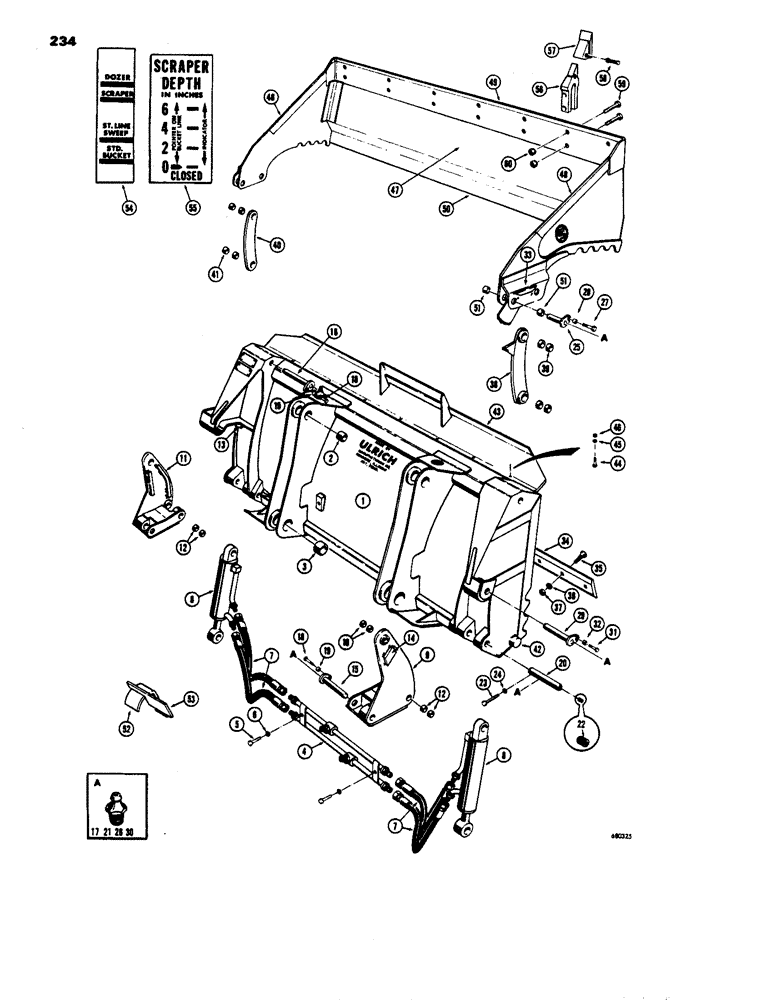

Запчасти Case 450 (234) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS

D42275

ULRICH BUCKET - without teeth (1 yd.) Machinery item, Includes: Ref.#1 - 46

1шт.

D42417

BLADE ASSEMBLY - bucket, Includes: Ref.#1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39175

BUSHING - upper

4шт.

3

D39176

BUSHING - lower

4шт.

4

D39159

TUBE ASSEMBLY - hydraulic

1шт.

5

164-53

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/2"

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

7

D39081

HOSE ASSY.

HOSE - hydraulic, 19-1/2" long

4шт.

8

D42415

CYLINDER - hydraulic (Parts list Fig. 338)

2шт.

9

D42414

BELLCRANK - R.H., Includes: Ref.#10

1шт.

10

D42423

BUSHING

- bellcrank

8шт.

11

D42413

BELLCRANK - L.H., Includes: Ref.#12

1шт.

12

D42423

BUSHING

- bellcrank

8шт.

13

D39164

STOP BLOCK - clam open

2шт.

14

D39162

STOP BLOCK - clam closed

2шт.

15

D42419

PIN -, Serial Range: bellcrank-cylinder

2шт.

16

D42418

PIN -, Serial Range: blade-cylinder

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

18

113-449

HHCS - 1/2" - 13 NC x 3/4"

4шт.

19

D40607

BUSHING - pin

4шт.

20

D42422

PIN -, Serial Range: bellcrank-blade

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

22

221-841

PLUG

- hex. socket head (1/4" NPT)

2шт.

23

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

24

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

25

D42421

PIN - clevis

4шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

27

113-449

HHCS - 1/2" - 13 NC x 3/4"

4шт.

28

D40607

BUSHING - pin

4шт.

29

D42420

PIN -, Serial Range: link-blade

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

31

113-449

HHCS - 1/2" - 13 NC x 3/4"

2шт.

32

D40607

BUSHING - pin

2шт.

33

D42416

LOCK - pin

2шт.

34

D39166

CUTTING EDGE - blade

1шт.

35

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

11шт.

36

92-8

LOCK WASHER,1/2"

11шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

11шт.

38

D42408

LINK - blade to clam (R.H.), Includes: Ref.#39

1шт.

39

D42423

BUSHING

- link

4шт.

40

D42409

LINK - blade to clam (L.H.), Includes: Ref.#41

1шт.

41

D42423

BUSHING

- link

4шт.

42

D39339

STOP - clam

2шт.

43

D42412

GUARD - spill

1шт.

44

21-616

BOLT - step (3/8" - 16 NC x 1")

8шт.

45

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

8шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

8шт.

D42411

CLAM ASSEMBLY - bucket, Includes: Ref.#47 - 54

1шт.

47

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

48

D42431

CUTTING EDGE - side

1шт.

49

D39156

WEAR PLATE - clam, front

1шт.

50

D39177

WEAR PLATE - clam, rear

1шт.

51

D42423

BUSHING

- clam

8шт.

D39169

INDICATOR ASSEMBLY - Includes: Ref.#52 - 54

1шт.

52

D39072

PLATE - indicator, loader arm

1шт.

53

D39071

POINTER - indicator, loader arm

1шт.

54

D39168

DECAL - bucket position, loader arm

1шт.

55

D39064

DECAL - scraper depth, on bucket

1шт.

D40203

TOOTH

ASSEMBLY - Includes: Ref.#56 & 58

7шт.

56

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

57

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

58

D39094

BUCKET TOOTH KEY

FLEX PIN, bucket teeth optional

1шт.

59

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", bucket teeth optional

14шт.

60

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2" - 20 NF), bucket teeth optional

14шт.
