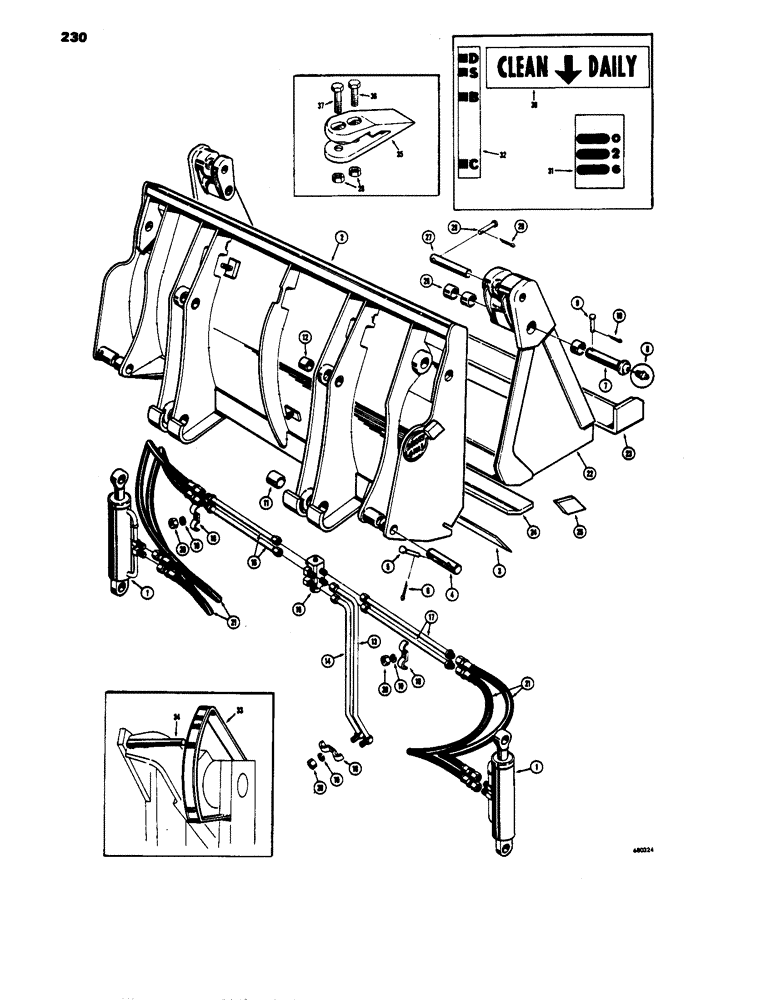

Запчасти Case 450 (230) - D36951 DROTT 4-IN-1 BUCKET, USED BEFORE BUCKET SN 4183801 (05) - UPPERSTRUCTURE CHASSIS

D36951

BUCKET - Drott, without teeth (1 yard) Machinery item, Includes: Ref.#1 - 34

1шт.

1

D39218

CYLINDER

- clam (Parts list Fig. 338)

2шт.

D39305

BLADE ASSEMBLY - bucket, Includes: Ref.#2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

3

D39316

EDGE, CUTTING

CUTTING EDGE - blade assembly

1шт.

4

D39306

PIN

-, Serial Range: cylinder-blade

2шт.

5

A18664

CLEVIS PIN

PIN - clevis (2-3/8" x 3/8")

2шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

7

A18663

PIN

- clam to blade, Includes: Ref.#8

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

9

A18666

PIN

- clevis (4" x 1/2")

2шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

11

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- loader mounting pins(Lower)

4шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- loader mounting pins (Upper)

4шт.

13

D39299

TUBE

- loader control valve to Drott relief valve (R.H.)

1шт.

14

D39300

TUBE

- loader control valve to Drott relief valve (L.H.)

1шт.

15

D39297

RELIEF VALVE ASSEMBLY - complete (Parts list Fig. 288)

1шт.

16

D39302

TUBE

- relief valve to clam cyl. (L.H.)

2шт.

17

D39301

TUBE

- relief valve to clam cyl. (R.H.)

2шт.

18

A17696

COLLAR CLAMP

CLAMP

3шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

3шт.

21

D39245

HOSE

- clam cyl. to relief valve (Replaces D39313)

4шт.

D39309

CLAM ASSEMBLY - bucket, Includes: Ref.#22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

23

D39310

EDGE, CUTTING

CUTTING EDGE - clam

1шт.

24

D39312

PLATE

WEAR PLATE - clam

1шт.

25

D35641

HOOK

GRAB HOOK

2шт.

26

A18662

BUSHING

-, Serial Range: clam-blade

6шт.

27

D39311

PIN

-, Serial Range: clam-cylinder

2шт.

28

S10786

CLEVIS PIN

PIN, CLEVIS (3-3/4" x 3/8")

2шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

30

A18673

DECAL

- cleanout

2шт.

31

D39303

DECAL

- clam opening

1шт.

32

D39304

DECAL

- bucket position

1шт.

33

D39314

BAND

PLATE - indicator

1шт.

34

D39315

PIN

POINTER - indicator

1шт.

35

D35642

TOOTH

- bucket optional

6шт.

36

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Bucket teeth optional Hex, 1/2"-13 x 2", G5

6шт.

37

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4', bucket teeth optional

6шт.

38

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108), Bucket teeth optional 1/2"-13, G5

12шт.
