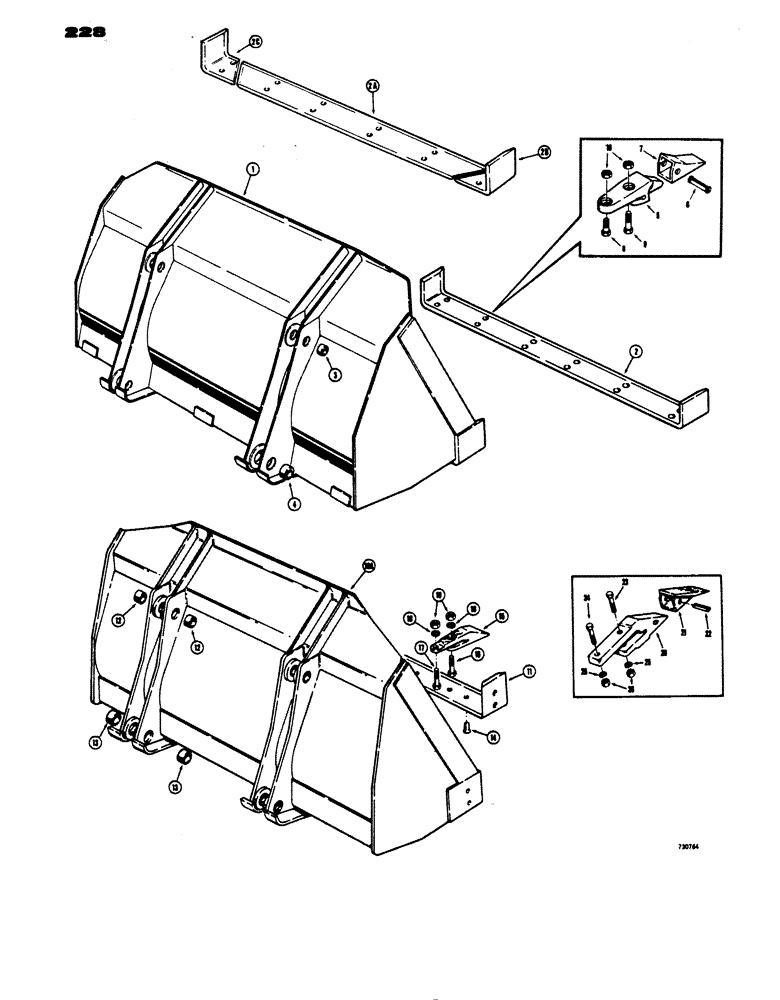

Запчасти Case 450 (228) - D49578 LOADER BUCKET, 1 CU. YD. BUCKET WITH WELD ON CUTTING (05) - UPPERSTRUCTURE CHASSIS

D49578

BUCKET - Loader, complete (Machinery item), Includes: Ref.#1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D51886

EDGE, CUTTING

EDGE - cutting, one piece (If used)

1шт.

Ref. 2, (3/4" thick).

1шт.

2a

D49585

BLADE

EDGE - cutting, center (If used)

1шт.

2b

D49583

EDGE - cutting, R.H. (If used)

1шт.

2c

D49584

EDGE - cutting, L.H. (If used)

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- bucket mounting (Upper)

4шт.

4

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- bucket mounting (Lower)

4шт.

D50780

TOOTH

ASSEMBLY - complete, bucket optional, Includes: Ref.#5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth optional

1шт.

7

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket optional

1шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth optional

6шт.

9

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", bucket teeth optional

6шт.

10

25-1010

NUT,5/8"-11, G5

Bucket teeth optional 5/8"-11, G5

12шт.

D34499

BUCKET - loader, complete with teeth (Machinery item) Use D49578 bucket for service, 1cu. yd. w/ rivited on cutting edge

1шт.

D34500

BUCKET - loader, without teeth (Machinery item) Use D49578 bucket for service, D34499 1cu. yd. w/ rivited on cutting edge, Includes: Ref.#10A - 19

1шт.

10a

NSS

NOT SOLD SEPARAT

BUCKET - loader, D34499 1cu. yd. w/ rivited on cutting edge

1шт.

11

D34486

BLADE

CUTTING EDGE - bucket, D3449991cu. yd. w/ rivited on cutting edge

1шт.

Ref. 11, (5/8" Thick).

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- bucket mounting (Upper), D34499 1cu. yd. w/ rivited on cutting edge

4шт.

13

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- bucket mounting (Lower), D34499 1cu. yd. w/ rivited on cutting edge

4шт.

14

46-828

RIVET,Csk, 1/2" x 1 3/4"

- D34499 bucket 1cu. yd. w/ rivited on cutting edge

6шт.

15

D33033

TOOTH

- bucket, D34499 1cu. yd. w/ rivited on cutting edge

6шт.

16

18-840

BOLT

- plow (1/2" - 13 NC x 2-1/2"), D34499 bucket 1cu. yd. w/ rivited on cutting edge

6шт.

17

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Replaces 13-832), D34499 bucket 1cu. yd. w/ rivited on cutting edge Hex, 1/2"-13 x 2", G5

6шт.

18

92-8

LOCK WASHER,1/2"

D34499 bucket 1cu. yd. w/ rivited-on cutting edge 1/2"

12шт.

19

NUT - hex. (1/2" - 13 NC) (Replaces 25-108), D34499 bucket 1cu. yd. w/ rivited on cutting edge

12шт.

D40449

TOOTH

ASSEMBLY - service option, Includes: Ref.#20 - 22

6шт.

20

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

21

D39093

TOOTH

POINT - tooth, bucket optional

1шт.

22

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth optional

1шт.

23

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Bucket teeth optional Hex, 1/2"-13 x 3 1/2", G5

6шт.

24

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2", bucket teeth optional

6шт.

25

92-8

LOCK WASHER,1/2"

med. sect., bucket teeth optional 1/2"

12шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108), Bucket teeth optional 1/2"-13, G5

12шт.
