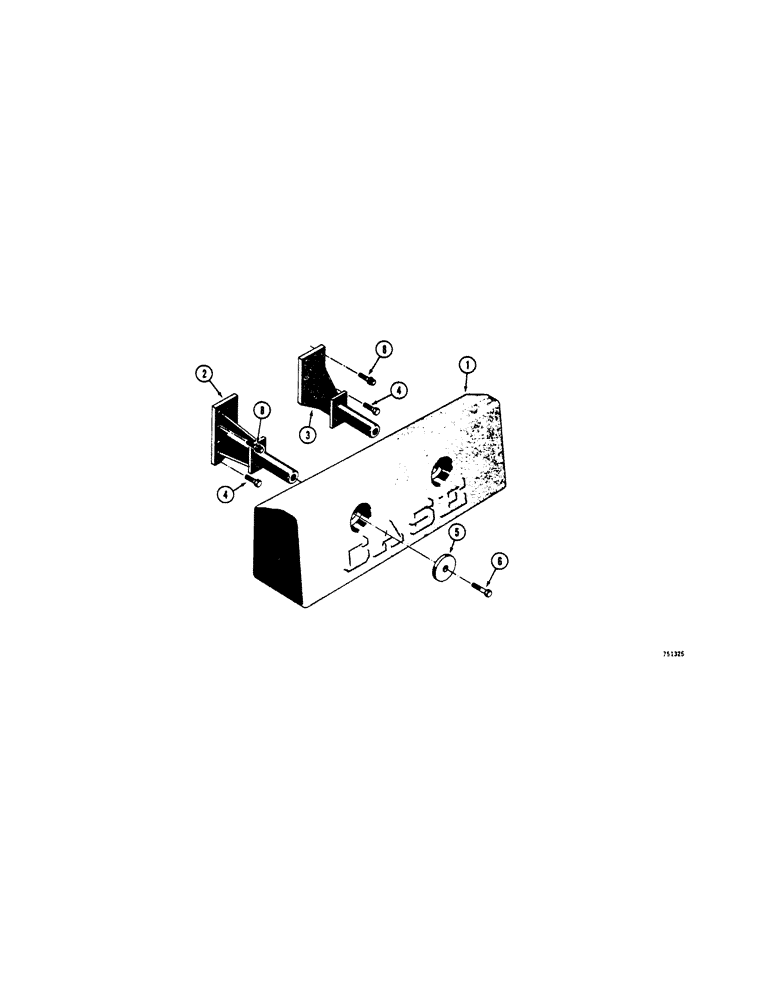

Запчасти Case 450 (222[1]) - REAR COUNTERWEIGHT WITHOUT REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

D34737

WEIGHT

COUNTERWEIGHT - rear, 1665 lbs. (Cast Iron)

1шт.

1

R32712

WEIGHT

COUNTERWEIGHT - rear, 1535 lbs. (Fabricated) Not shown

1шт.

2

R35978

BRACKET - mounting, L.H. (3/4" dia. bolt)

1шт.

2

D36753

BRACKET

- mounting, L.H. (5/8" dia. bolt)

1шт.

3

R35979

BRACKET - mounting, R.H. (3/4" dia. bolt)

1шт.

3

BRACKET - mounting, R.H. (5/8" dia. bolt)

1шт.

4

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(If used) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

8шт.

4

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

HHCS - 3/4" - '0 NC x 1-3/4" (If used)

8шт.

5

R17607

WASHER

- special

2шт.

6

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(D34737 counterweight) Hex, 3/4"-10 x 2 1/2", G5

2шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(R32712 counterweight) Hex, 3/4"-10 x 3", G5

2шт.

8

166-132

BOLT - ferry head, 3/4" - 10 NC x 1-3/4"

4шт.
