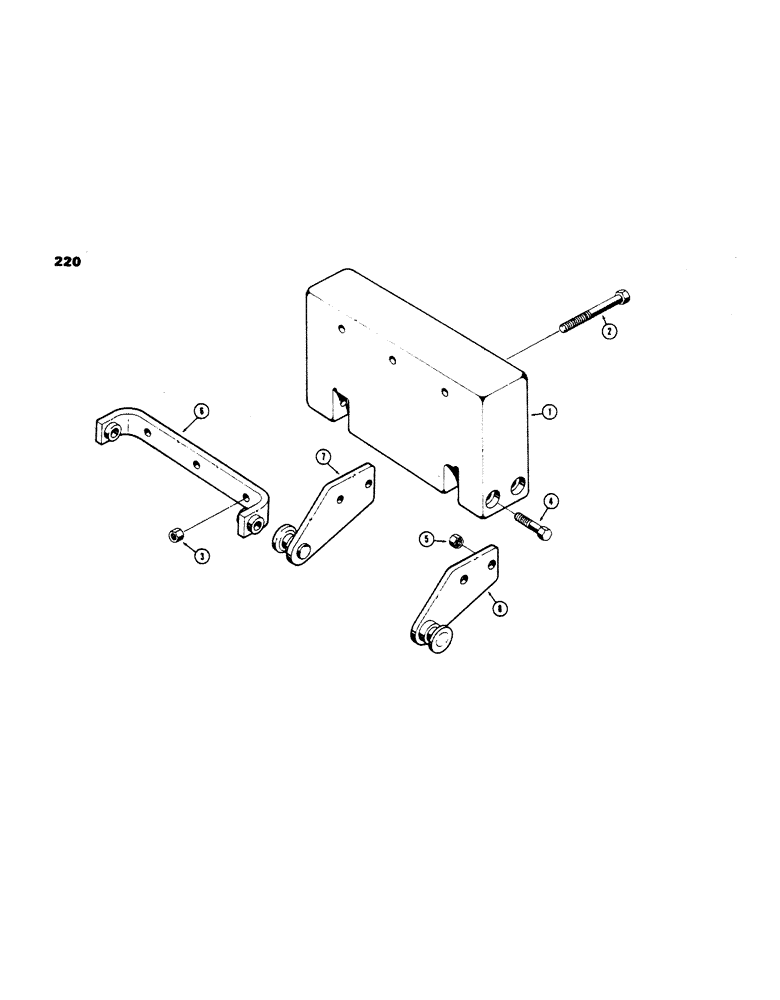

Запчасти Case 450 (220) - REAR MOUNTED COUNTERWEIGHTS, BACKHOE MODELS ONLY (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear (1400 lbs.)

1шт.

2

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

3

230-41116

NUT,1"-8, GA

NUT - hex, lock (1" - 8 NC)

2шт.

4

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

6

D37534

BRACKET - counterweight mounting, upper

1шт.

7

D37134

ARM

SUPPORT ARM - lower, at counterweight (R.H.)

1шт.

8

D37135

ARM

SUPPORT ARM - lower, at counterweight (L.H.)

1шт.
