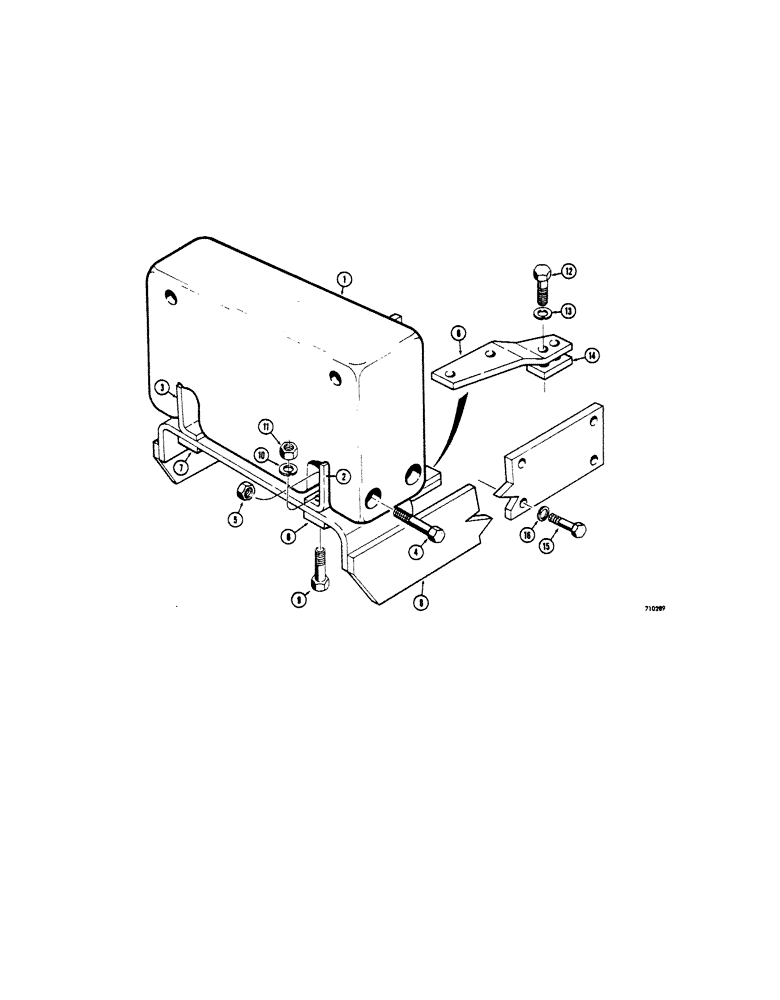

Запчасти Case 450 (220[1]) - WINCH MODELS ONLY (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 900 lbs

1шт.

2

D43368

BRACKET - mounting, R.H.

1шт.

3

D43367

BRACKET - mounting, L.H.

1шт.

4

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

6

D44013

BRACKET - support, R.H.

1шт.

7

D44012

BRACKET - support, L.H.

1шт.

8

D43373

ARM - support, counterweight

1шт.

9

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1010

NUT,5/8"-11, G5

4шт.

12

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

D43365

SPACER

- use on models without fairleads

2шт.

15

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
