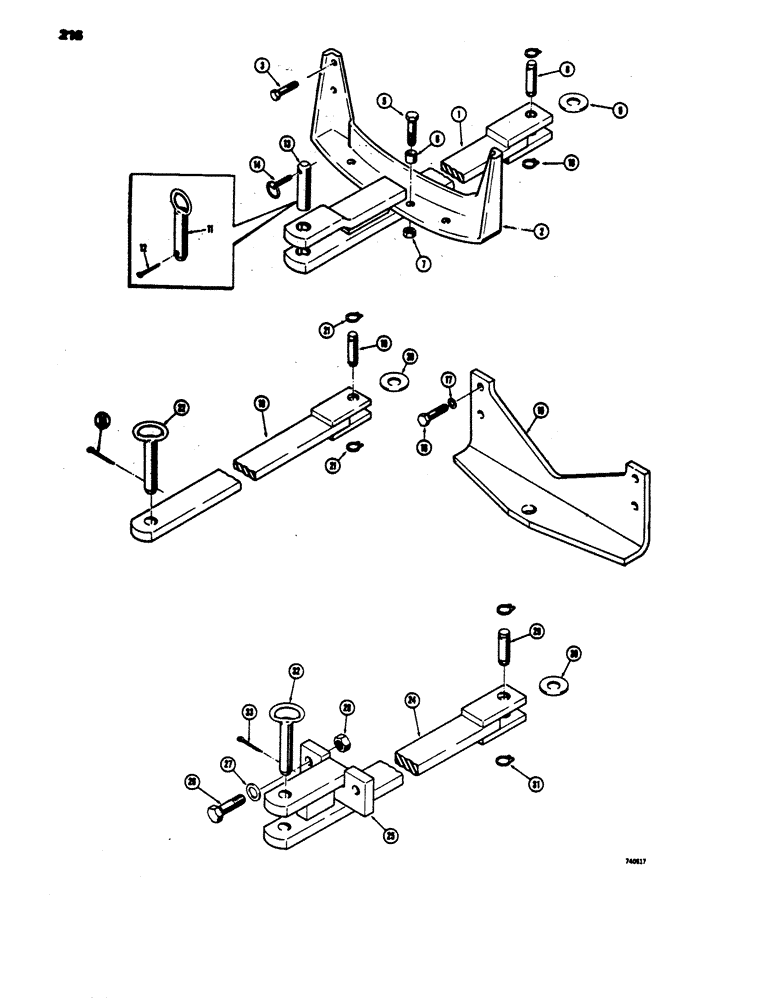

Запчасти Case 450 (216) - DRAWBARS (MODELS WITHOUT WINCH), MODELS WITHOUT REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

D35204

DRAWBAR

- Drawbar and Dozer Models only (When stock is exhausted, use D44147 drawbar and D25993 pin for service) Used before tractor serial no. 3038727

1шт.

1

D44147

BAR

DRAWBAR - Drawbar and Dozer Models only, Start Serial: 3038727

1шт.

1

D35205

X

DRAWBAR - Loader Counterweight Models only (When stock is exhausted, use D44148 Drawbar and D25993 pin for service) Used before tractor serial no. 3038727

1шт.

1

D44148

DRAWBAR, SWINGING

DRAWBAR - Loader Counterweight Models only, Start Serial: 3038727

1шт.

2

R25742

GUIDE

- drawbar, Uses 5/8" dia. bolt

1шт.

2

R30272

GUIDE

- drawbar, Uses 3/4" dia. bolt

1шт.

3

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

R25742 guide Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

HHCS - 3/4" - 10 NC x 1-1/2", R25742 guide

4шт.

5

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

6

T29173

BUSHING

- stop

2шт.

7

129-108

NUT,3/4"-10, G5

(Replaces 25-1012) 3/4"-10, G5

2шт.

8

D34720

AXLE PIN

PIN - mounting (Used on D35204 and D35205 drawbars)

1шт.

8

D25993

PIN

- mounting (Used on D44147 and D44148 drawbars)

1шт.

9

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4")

1шт.

10

D26918

SNAP RING,#125, Ext

RING, Snap, #125, Ext

2шт.

11

R24105

DRAWBAR

PIN - mounting, equipment (D35204 and D44147 drawbar)

1шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

13

D35202

PIN

- mounting, equipment (D35205 and D44148 drawbar)

1шт.

14

D33805

PIN

- Klik

1шт.

15

D43709

DRAWBAR - rigid

1шт.

16

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

D44146

DRAWBAR

- Loader Models, used w/ ripper

1шт.

18

D34690

X

DRAWBAR - Loader Models (When stock is exhausted, use D44146 drawbar and D25993 pin for service) Used before tractor serial no. 3038727, used w/ ripper

1шт.

18

D44146

DRAWBAR

- Loader Models, used w/ ripper, Start Serial: 3038727

1шт.

18

D34691

X

DRAWBAR - Dozer Models , used w/ ripper, Serial Range: -3038727

1шт.

18

D44152

BAR

DRAWBAR - Dozer Models used w/ ripper, Start Serial: 3038727

1шт.

19

D34720

AXLE PIN

PIN - mounting (Used on D34690 and D34691 drawbars), used on models w/ ripper

1шт.

19

D46467

PIN

- mounting (Used on D44146 and D44152 drawbars) (Replaces D25993), used on models w/ ripper

1шт.

20

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4"), used on models w/ rippet

1шт.

21

D26918

SNAP RING,#125, Ext

RING, Snap, , used on models w/ ripper #125, Ext

2шт.

22

R24105

DRAWBAR

PIN - mounting, equipment, used on models w/ ripper

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on models w/ ripper 1/4" x 2"

1шт.

24

D39518

DRAWBAR

- Dozer Models used w/ ripper, Serial Range: -3038727

1шт.

24

D44153

DRAWBAR

- Dozer Models used w/ ripper, Start Serial: 3038727

1шт.

24

D39520

X

DRAWBAR - Loader Models used w/ ripper, Serial Range: -3038727

1шт.

24

D44151

DRAWBAR, SWINGING

DRAWBAR - Loader Models used w/ ripper, Start Serial: 3038727

1шт.

25

D39519

BRACKET

- locking, drawbar, used on models w/ripper

1шт.

26

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3", used on models w/ ripper

2шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, used on models w/ ripper

2шт.

28

129-110

NUT,1"-8, G5

(Replaces 25-1016), Used on models w/ ripper 1"-8, G5

2шт.

29

D34720

AXLE PIN

PIN - mounting (Used on D39518 and D39520 drawbars), used on models w/ ripper

1шт.

29

D46467

PIN

- mounting (Used on D44153 and D44151 drawbars) (Replaces D25993), used on model w/ ripper

1шт.

30

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4"), used on models w/ ripper

1шт.

31

D26918

SNAP RING,#125, Ext

RING, Snap, , used on models w/ ripper #125, Ext

2шт.

32

R24105

DRAWBAR

PIN - mounting, equipment, used on models w/ ripper

1шт.

33

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on models w/ ripper 1/4" x 2"

1шт.
