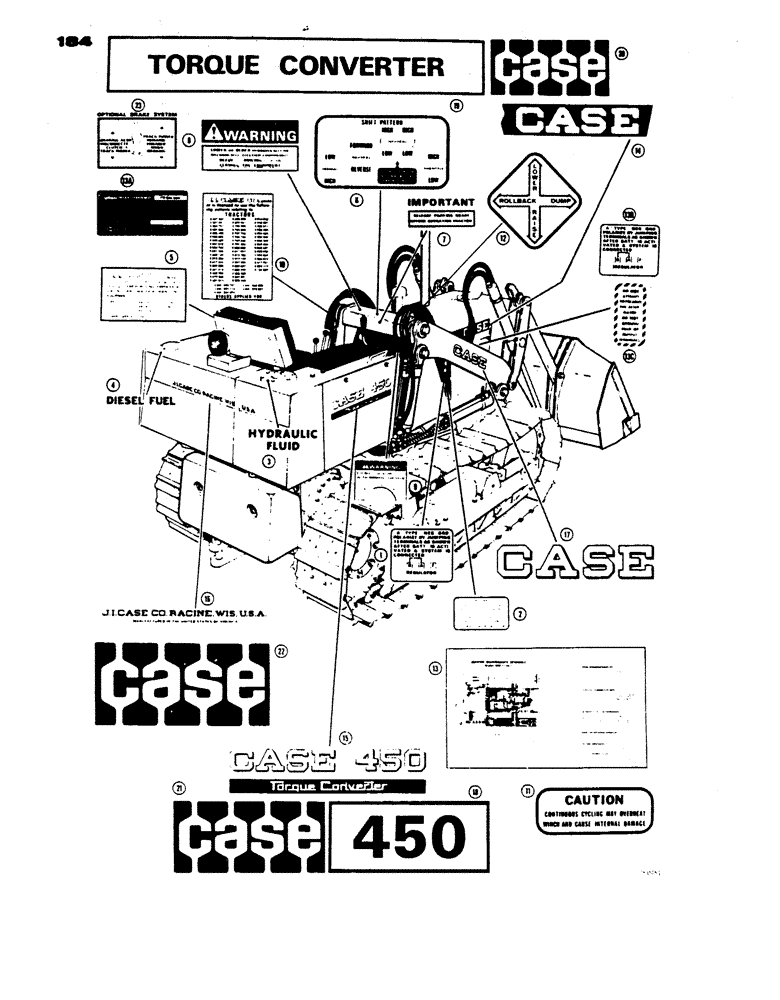

Запчасти Case 450 (184) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-766

DECAL

- polarizing instructions

1шт.

2

321-2101

DECAL

- oil filter replacement, engine

1шт.

3

321-229

DECAL

- hydraulic fluid, R.H. top of tank

1шт.

4

321-230

DECAL

- diesel fuel, L.H. top of tank

1шт.

5

321-246

DECAL

- patent, tractor (L.H. side of tank)

1шт.

6

321-801

DECAL

- controls, basic, on dash

1шт.

7

321-2387

DECAL

- parking brake, on dash

1шт.

8

321-3042

DECAL

- warning, block for service (On dash)

1шт.

9

321-3040

DECAL

- warning, starting (At starter switch)

1шт.

10

321-663

DECAL

- patent, equipment (L.H. side of crawler)

1шт.

11

321-912

DECAL

- caution, winch (R.H. arm rest)

1шт.

12

321-920

DECAL

- loader controls, on dash

1шт.

13

321-763

DECAL

MASTER MAINTENANCE SCHEDULE - under L.H. arm rest

1шт.

13a

321-1730

DECAL

- air cleaner instructions, on air cleaner

1шт.

13b

321-766

DECAL

- generator instructions

1шт.

13c

321-1061

DECAL

- alternator instructions

1шт.

14

321-1054

DECAL

- Case, R.H. hood, early production

1шт.

14

321-1055

DECAL

- Case, L.H. hood (Not shown), early production

1шт.

15

321-764

DECAL

- Case 450, on side of tank, early production

2шт.

16

321-765

DECAL

- address, rear of tank, early production

1шт.

17

321-675

DECAL

- Case, loader arm, early production

2шт.

18

321-1477

DECAL

- 450, side of tank, late production

2шт.

19

321-1483

DECAL

- Torque Converter, on hood, late production

2шт.

20

321-1438

DECAL

- Case, 3" high (On hood) Reflective, late production

2шт.

20

321-2425

DECAL

- Case, 3" high (On hood) Non-reflective, late production

2шт.

21

321-1440

DECAL

- Case, 4" high (On side of tank) Reflective,late production

2шт.

21

321-1572

DECAL

- Case, 4" high (On side of tank) Non-reflective, late production

2шт.

22

321-1443

DECAL

- Case, 7" high (On rear of tank) Reflective, late production

1шт.

22

321-1574

DECAL

- Case, 7" high (On rear of tank) Non-reflective, late production

1шт.

R24004

DECAL

KIT - decal, all decals except Refs. 1, 11, 14, 15, 16, 17 and

1шт.

23

321-2114

DECAL

- optional brake system (On heel plate), late production

1шт.
