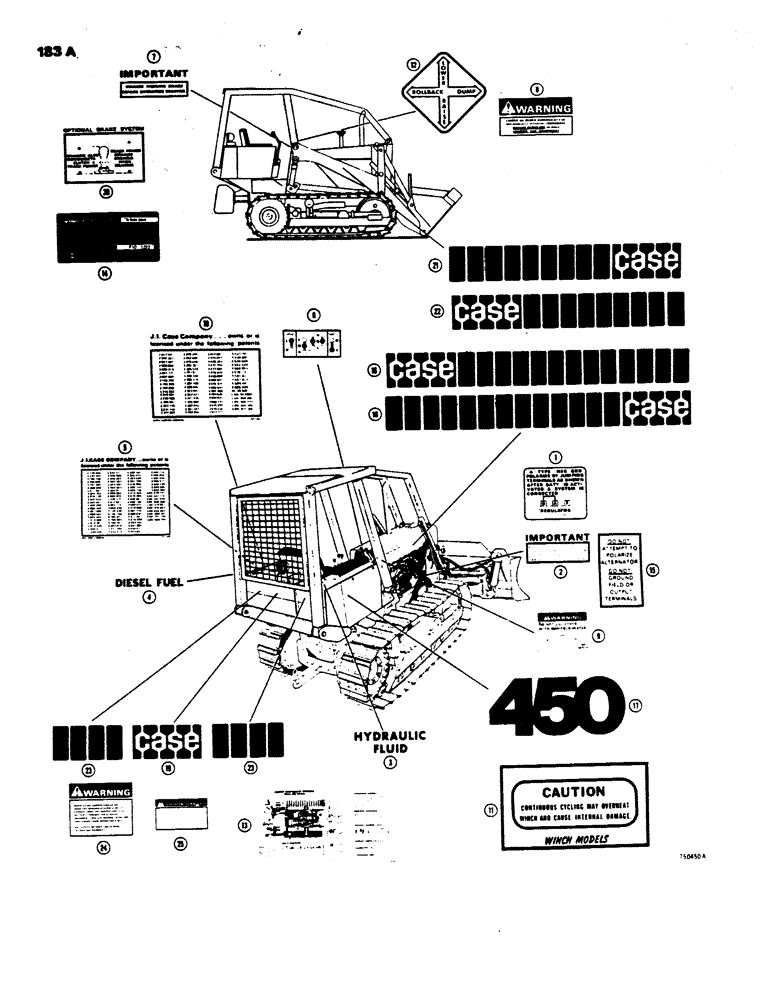

Запчасти Case 450 (183A) - DECALS (05) - UPPERSTRUCTURE CHASSIS

R35751

DECAL

KIT - decal, Includes: Ref.#1 - 25

1шт.

1

321-766

DECAL

- polarizing instructions

1шт.

2

321-2101

DECAL

- oil filter replacement, engine

1шт.

3

321-229

DECAL

- hydraulic fluid, R.H. top of tank

1шт.

4

321-230

DECAL

- diesel fuel, L.H. top of tank

1шт.

5

321-246

DECAL

- patent, tractor (L.H. side of tank)

1шт.

6

321-801

DECAL

- controls, basic, on dash

1шт.

7

321-2387

DECAL

- parking brake, on dash

1шт.

8

321-3042

DECAL

- warning, block for service (On dash)

1шт.

9

321-3040

DECAL

- warning, starting (At starter switch)

1шт.

10

321-663

DECAL

- patent, equipment (L.H. side of crawler)

1шт.

11

321-912

DECAL

- caution, winch (R.H. arm rest)

1шт.

12

321-920

DECAL

- loader controls, on dash

1шт.

13

321-763

DECAL

- Master Maintenance Scheduled

1шт.

14

321-1730

DECAL

- air cleaner instructions, on air cleaner

1шт.

15

321-1061

DECAL

- alternator instructions

1шт.

16

321-3111

DECAL

- Case and treads marks, L.H.

1шт.

17

321-3113

DECAL

- 450, side of tank

2шт.

18

321-3110

DECAL

- Case and tread marks, R.H.

1шт.

19

321-3117

DECAL

- Case, (On rear of tank)

1шт.

20

321-2114

DECAL

- optional brake system (On heel plate)

1шт.

21

321-3090

DECAL

- Case and tread marks, R.H.

1шт.

22

321-3091

DECAL

- Case and tread marks, L.H.

1шт.

23

321-3116

DECAL

- tread marks

1шт.

24

321-2788

DECAL

- jump starting

1шт.

25

321-2996

DECAL

- battery hazard

1шт.
