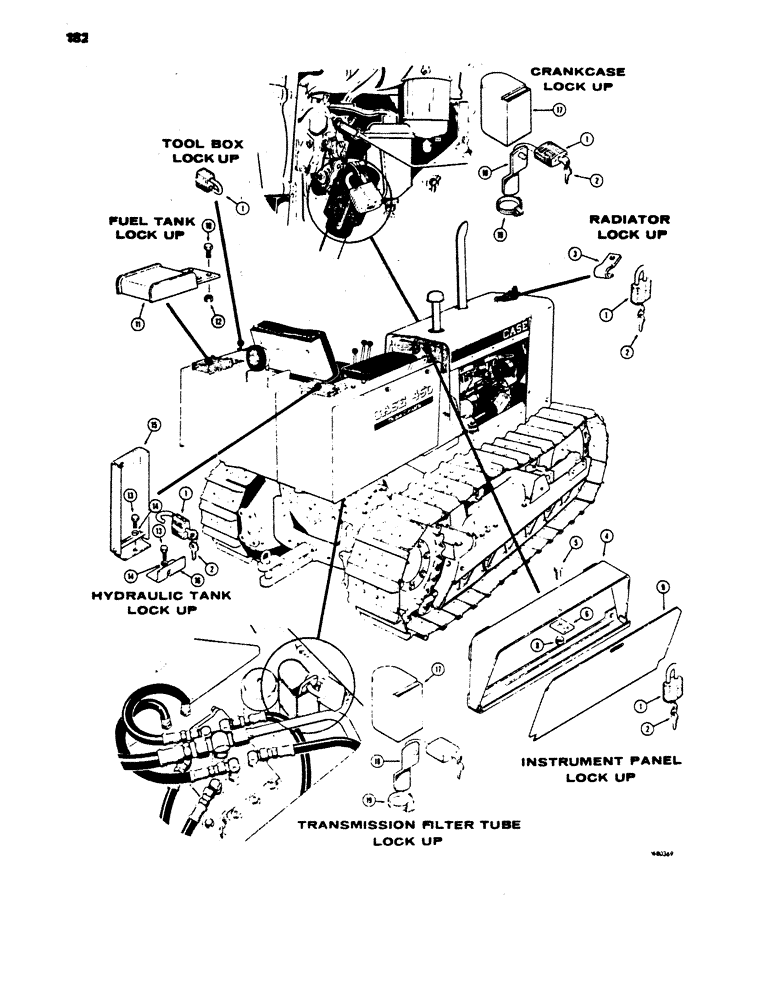

Запчасти Case 450 (182) - LOCK UP PARTS, PADLOCK AND KEYS (05) - UPPERSTRUCTURE CHASSIS

1

D40678

LOCK

PADLOCK - crawler lock up (Master #X 2138)

6шт.

2

D40679

KEY

- D40679 padlock, Master #X 2138 (Set of two)

1шт.

1

R29554

LOCK

PADLOCK - crawler lock up (Master #500) Not shown

6шт.

2

R29555

KEY

- R29554 lock, set of two (Not shown)

1шт.

3

D41254

CLIP

- radiator lock up, radioator lock up

1шт.

4

D41250

GUARD

SHROUD - instrument panel, instrument panel lock up

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Instrument panel lock up Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

D41251

TAB - lock, instrument panel lock up

1шт.

8

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC), instrument panel lock up

1шт.

9

D41252

GUARD

- instrument panel,instrument panel lock up

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fuel tank lock up Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

D41224

GUARD

- fuel cap, fuel tank lock up

1шт.

12

131-179

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), fuel tank lock up

2шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Hydraulic tank lock up Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, , hydraulic tank lock up 3/8"

2шт.

15

D41245

GUARD

- hydraulic tank, lock up

1шт.

16

223-31

FUSE,10 Amp, Type 3AG

- hydraulic tank lock

1шт.

17

D41240

CAP

- transmission and crankcase lock

2шт.

18

D41253

STRAP

- locking, transmission and crankcase lock up

2шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - transmission and crankcase lock

2шт.
