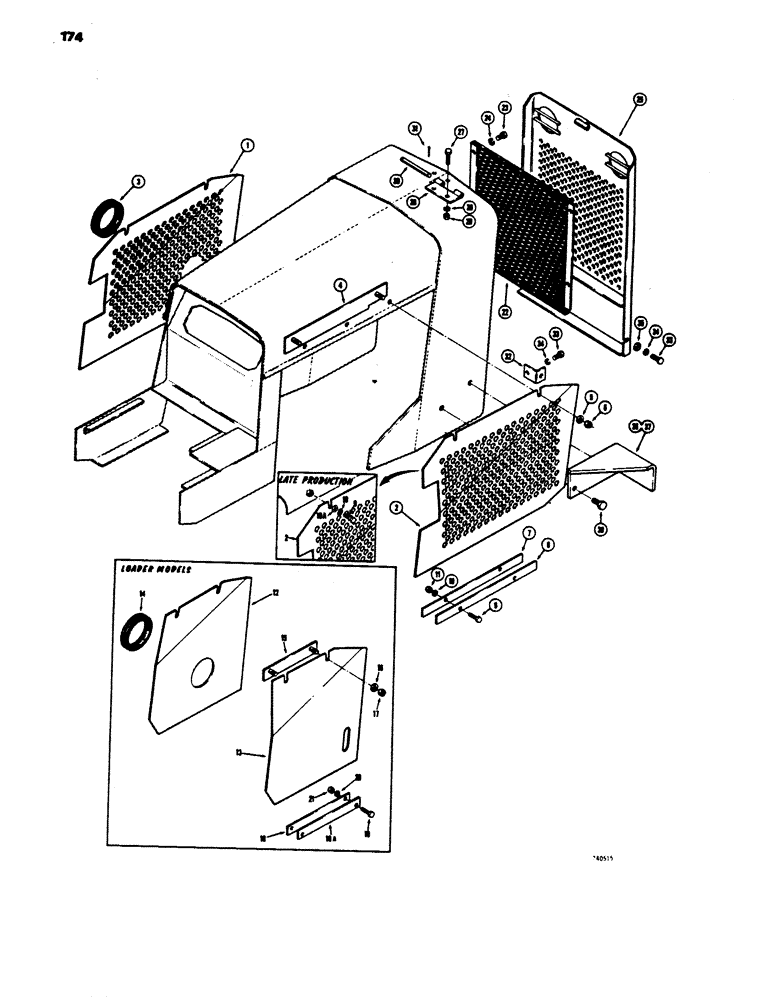

Запчасти Case 450 (174) - SIDE SHEILDS AND BRUSH GUARDS, SIDE SHEILD (USED ON DRAWBAR AND DOZER MODELS ONLY) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D35432
GUARD
SHIELD - side, L.H.
1шт.
2
D35433
GUARD
SHIELD - side, R.H.
1шт.
3
D35424
LINING
TRIM - quick edge
1шт.
4
D35428
PLATE
STRIP - side shield retaining (Used with hoods without cage nuts)
2шт.
5
195-33
WASHER,1/2"
- flat () D35428 strip 1/2"
4шт.
6
131-354
LOCK NUT,1/2"-13, GA
NUT - hex., lock (1/2" - 13 NC) D35428 strip
4шт.
7
D38472
STRIP
- side shield retaining (Inner)
2шт.
8
D38471
STRIP
- side shield retaining (Outer)
2шт.
9
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4-8шт.
10
92-8
LOCK WASHER,1/2"
4шт.
10a
195-53
WASHER,1" x 2" x .134"
- flat (1/2")
4шт.
11
129-105
NUT,Hex, 1/2" - 13, Gr 5
(Replaces 25-108) 1/2"-13, G5
4-8шт.
12
D35430
PANEL
SHIELD - side, L.H., used on loader models only
1шт.
13
D35431
SHIELD
- side, R.H., used on loader models only
1шт.
14
DD35424
TRIM - quick edge, side shield used on loader models only
1шт.
15
D35425
STRIP
- side shield retaining, used on loader models only
2шт.
16
195-33
WASHER,1/2"
- flat (), side shield used on loader models only 1/2"
4шт.
17
131-354
LOCK NUT,1/2"-13, GA
NUT - hex., lock (1/2" - 13 NC), side shield used on loader models only
4шт.
18
D38472
STRIP
- side shield retaining (Inner), used on loader models only
2шт.
18a
D38471
STRIP
- side shield retaining (Outer), used on loader models only
2шт.
19
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
Side shield used on loader models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd
4шт.
20
92-8
LOCK WASHER,1/2"
side shield used on loader models only 1/2"
4шт.
21
129-105
NUT,Hex, 1/2" - 13, Gr 5
(Replaces 25-108), Side shield used on loader models only 1/2"-13, G5
4шт.
22
D35328
GUARD
SCREEN - grille, brush guard
1шт.
23
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
Brush guard Hex, 1/2"-13 x 1", G5, Full Thd
4шт.
24
92-8
LOCK WASHER,1/2"
brush guard 1/2"
4шт.
25
D35330
GUARD - grille, brush
1шт.
26
D40462
BRACKET - mounting, grille, brush guard
1шт.
27
113-273
BOLT
HHCS - 3/8" - 16 NC x 1-1/2", brush guard
2шт.
28
192-43
WASHER,3/8"
LOCK, , Brush guard 3/8"
2шт.
29
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, (Replaces 25-106), Brush guard 3/8"-16, G5
2шт.
30
D40286
PIN - mounting bracket, brush guard
1шт.
31
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), , Brush guard 1/8" x 1"
2шт.
32
D35324
BRACKET - grille, lower, brush guard
2шт.
33
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
Brush guard Hex, 1/2"-13 x 1 1/2", G5, Full Thd
4шт.
34
92-8
LOCK WASHER,1/2"
brush guard 1/2"
4шт.
35
195-33
WASHER,1/2"
- flat (), brush guard 1/2"
2шт.
36
D35332
BUMPER - L.H. Drawbar Models only, brush guard
1шт.
37
D35333
BUMPER - R.H., Drawbar Models only, brush guard
1шт.
