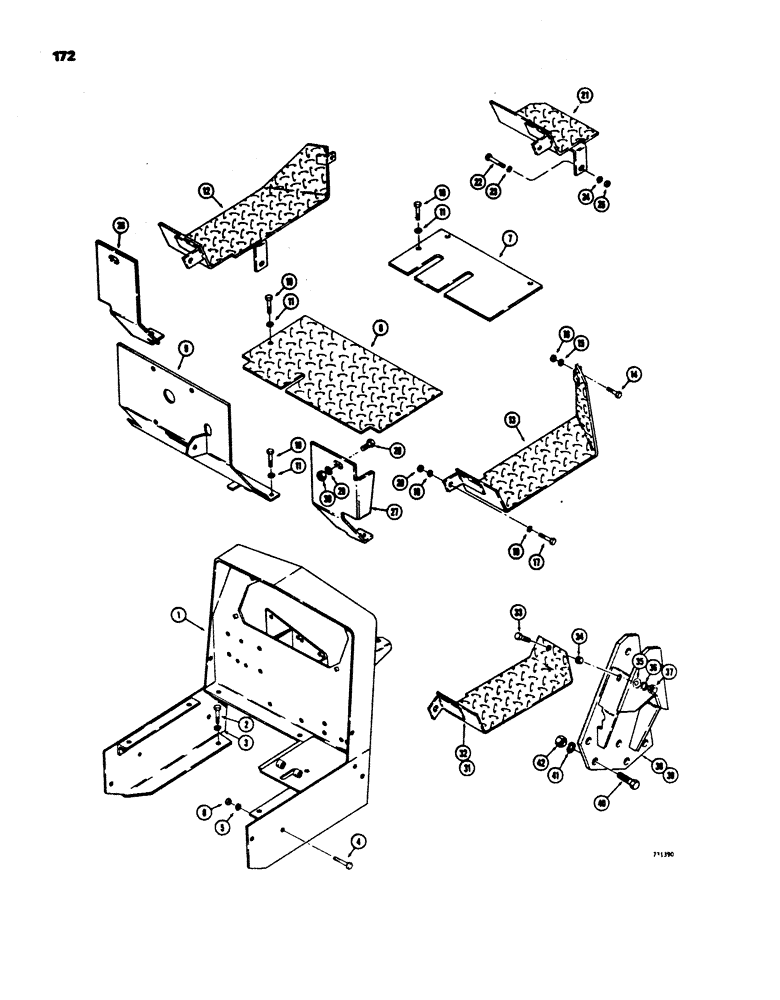

Запчасти Case 450 (172) - COWL, FLOOR PLATES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D35218

COWL - Dozer and Drawbar Models

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

7

D35168

X

PLATE - floor, front (Used on Loader Models before transmission serial no. 2644199 and Dozer Models before transmission serial no. 2644572)

1шт.

8

D35167

PLATE

- floor, rear

1шт.

9

D35169

PLATE - heel

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

11

92-8

LOCK WASHER,1/2"

7шт.

12

D35120

PLATE - step, L.H. (Drawbar and Dozer models before tractor Sn. 3049198 except ROPS models)

1шт.

13

D35121

PLATE - step, R.H. (Drawbar and Dozer models before tractor Sn. 3049198 except ROPS models)

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

4шт.

21

D35116

PLATE

- step (Loader Models only)

1шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

23

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

2шт.

26

R26121

PLATE - heel, L.H.

1шт.

27

R26125

PLATE - heel, R.H.

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

31

F93325

PLATE

- step, L.H. (Drawbar and Dozer Models), 3049198 & aft or previous rops models

1шт.

32

F93326

PLATE - step, R.H. (Drawbar and Dozer Models), s/n 3049198 & aft or previous rops models

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", drawbar & dozer models used s/n 3049198 & aft or previous rops

2шт.

34

F10140

SPACER - plate, drawbar & dozer models used s/n 3049198 & aft or previous rops

2шт.

35

195-25

WASHER,3/8"

- flat (), drawbar & dozer models used s/n 3049198 & aft or previous rops 3/8"

2шт.

36

92-6

LOCK WASHER,3/8"

WASHER - lock, , drawbar & dozer models used s/n 3049198 & aft or previous rops 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), drawbar & dozer models used s/n 3049198 & aft or previous rops

2шт.

38

F93312

BRACKET ASSEMBLY - mounting, L.H., drawbar & dozer models used s/n 3049198 & aft or previous rops

1шт.

39

F93313

BRACKET ASSEMBLY - mounting, R.H., drawbar & dozer models used s/n 3049198 & aft or previous rops

1шт.

40

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Drawbar & dozer models used S/N 3049198 & aft or previous ROPS Hex, 5/8"-11 x 2 1/4", G5

10шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar & dozer models used S/N 3049198 & aft or previous ROPS 5/8"

10шт.

42

25-1010

NUT,5/8"-11, G5

Drawbar & dozer models used S/N 3049198 & aft or previous ROPS 5/8"-11, G5

10шт.
