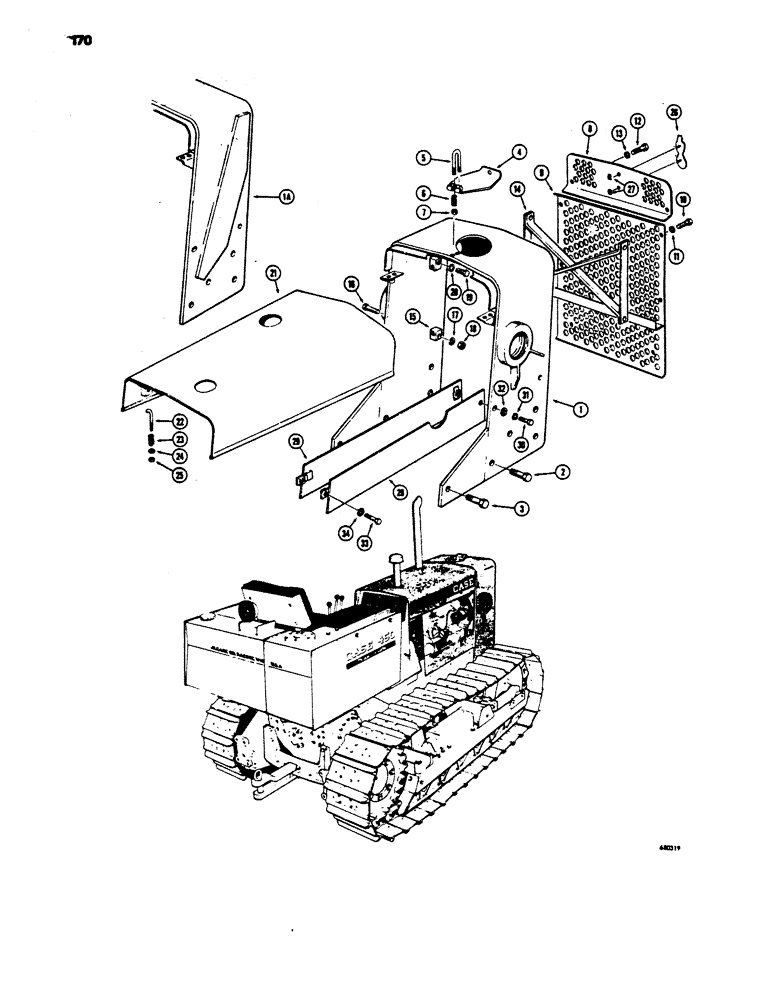

Запчасти Case 450 (170) - HOOD, SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D43687

X

GUARD - radiator (Dozer models) Stud retained lights (Use R31288 guard, (2) D57287 light seals and (2) D57288 light retainers)

1шт.

1

R31288

GUARD ASSY.

GUARD - radiator (Dozer models) Bolt retained lights

1шт.

1

D43689

X

GUARD - radiator (Drawbar Models) Stud retained lights (Use R31289 guard, (2) D57287 light seals, (2) D57288 light retainers)

1шт.

1

R31289

GUARD - radiator (Drawbar Models) Bolt retained lights

1шт.

1a

D43688

GUARD

- radiator (Loader Models) Stud retained lights (Use R31290 guard, (2) D57287 light seals, (2) D57288 light retainers)

1шт.

1a

R31290

GUARD

- radiator (Loader Models) Bolt retained lights

1шт.

2

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(All Models) Hex, 3/4"-10 x 1 1/2", G5

8шт.

3

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Dozer Models only) Hex, 3/4"-10 x 1 1/2", G5

2шт.

4

D30074

LID

- radiator

1шт.

5

D35723

BOLT

"U" BOLT - radiator lid

1шт.

6

23098

SPRING

- "U" Bolt

2шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, hex. (5/16" - 18 NC)

2шт.

8

D43688

GUARD

- headlight

1шт.

9

D35210

RADIATOR

GUARD - grille

1шт.

10

113-472

BOLT

HHCS - 1/2" - 13 NC x 1" (Plated)

6шт.

11

192-42

WASHER - med. sect. lock (1/2") plated

6шт.

12

113-473

HHCS - 1/2" - 13 NC x 1-1-/4" (Plated)

2шт.

13

192-42

WASHER - med. sect. lock (1/2") Plated

2шт.

14

D35190

BRACE

- radiator guard

1шт.

15

D35516

BLOCK

- brace mounting

2шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

25-1010

NUT,5/8"-11, G5

2шт.

19

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

D49084

HOOD

- crawler (Early production)

2шт.

21

R32966

HOOD

- crawler (Late production - cage nuts to mount side screens)

1шт.

22

DD33958

BOLT - hood hold down

4шт.

23

F60482

SPRING

- hood hold down

4шт.

24

195-25

WASHER,3/8"

- plain

4шт.

25

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

26

D40300

EMBLEM

MEDALLION - eagle

1шт.

27

D41526

CLIP - speed, special

2шт.

28

D34996

PANEL - side, R.H.

1шт.

29

D34997

PANEL - side, L.H.

1шт.

30

130820

HHCS - 1/2" - 13 NC x 1-1/4"

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

33

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.
