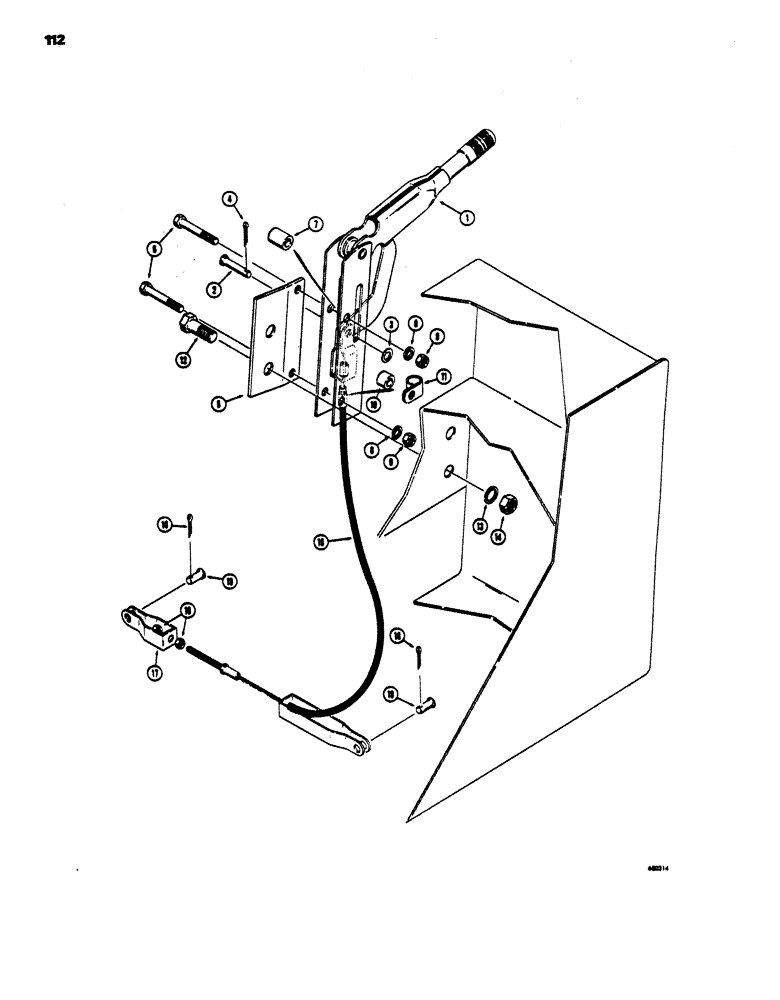

Запчасти Case 450 (112) - PARKING BRAKE (05) - UPPERSTRUCTURE CHASSIS

D40687

LEVER

BRAKE LEVER - parking, Includes: Ref.#1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

- clevis

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

4

132-26

COTTER PIN

- Split (Cotter), 3/32" x 3/4"

1шт.

5

D40686

PLATE - brake mounting (Early production models - in late production models plate is welded to tank assembly)

1шт.

6

26-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 8

HHCS - 5/16" - 18 NC x 1-5/8" (Grade 8)

2шт.

7

D40685

SPACER

- lever

1шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

10

D30863

TUBE

SPACER - clamp

1шт.

11

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable guide

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Early production models) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - hex. (1/2" - 13 NC) (Replaces 25-108)

2шт.

D40688

X

CABLE ASSEMBLY - brake, mounted with 1/4" dia. pins (When stock is exhausted, use D44006 cable for service)

1шт.

D44006

CABLE

ASSEMBLY - brake, mounted with 5/16" dia. pins, Includes: Ref.#15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

CABLE - brake

1шт.

16

129-122

NUT,5/16"-24, G5

1шт.

16

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

17

D42457

CLEVIS - cable (D40668 cable only)

1шт.

17

D43802

CLEVIS

- cable (D44006 cable only)

1шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Cable yoke (D44006 cable only) 5/16" x .940"

2шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - cable yoke, 1/4" dia. x 3/4" (D40688 cable only)

2шт.
