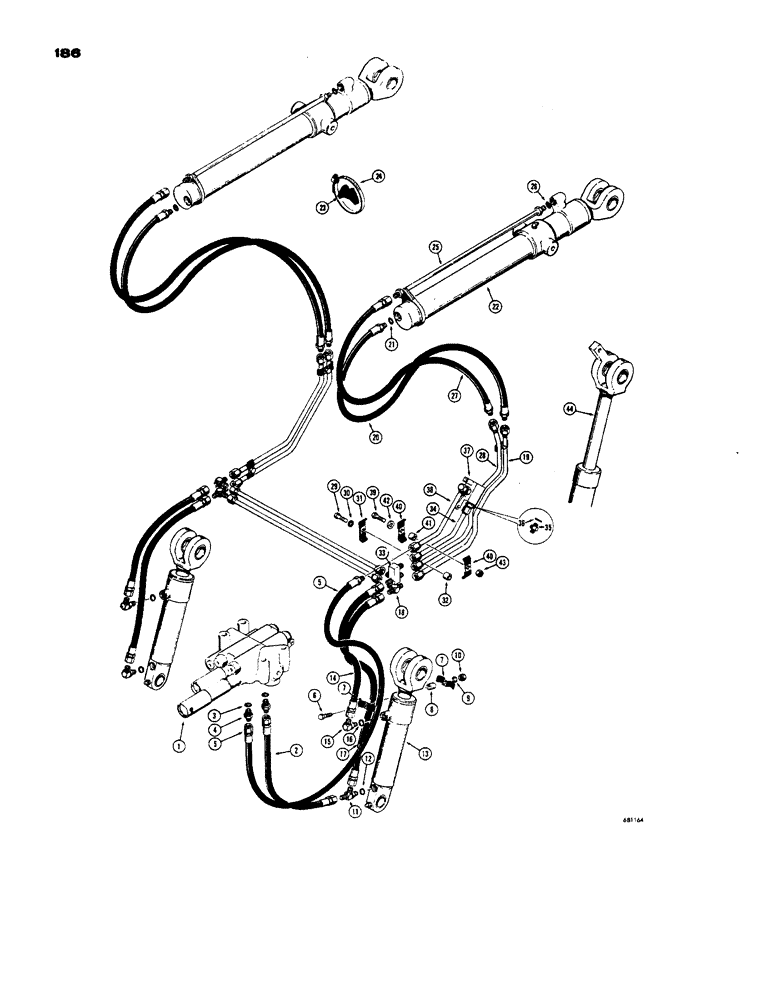

Запчасти Case 450 (186) - LOADER ANTI-ROLLBACK HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

VALVE - equipment control, see Figures 262 and 264 for proper valves

1шт.

2

D30537

HOSE

- leveling cylinder to control valve (19-3/8" long)

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight male, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

5

D21700

HOSE

- control valve to lock valve tube (62-1/2" long)

1шт.

6

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

7

D33316

CLAMP

- hose

2шт.

8

D33552

BUSHING

SPACER - clamp

1шт.

9

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex. lock (5/16" - 18 NC)

1шт.

11

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

REF

INSTRUCTION

CYLINDER - hydra-leveling (See Figure 226 for cylinders)

1шт.

14

D23062

HOSE

- leveling cylinder to crossover (38" long)

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

17

D25670

FLEXIBLE HOSE

HOSE - leveling cylinder to crossover (26" long)

1шт.

18

218-595

TEE,7/8"-14, 37 Degree

- special

1шт.

19

D43552

TUBE

- lower, R.H.

1шт.

20

L13750

HOSE

- dump cylinder, closed end (35" long), Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

22

REF

INSTRUCTION

CYLINDER - dump (See Figure 226 for cylinders)

1шт.

23

D38648

BLOCK

SADDLE - rubber

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

1шт.

25

L13737

TUBE

- dump cylinder - rod end, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

27

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- dump cylinder, rod end (40" long)

1шт.

28

D43553

TUBE

- upper, R.H.

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

30

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

31

D33316

CLAMP

- tube

2шт.

32

D33552

BUSHING

SPACER - clamp

2шт.

33

D45340

ADAPTER

FITTING - special

1шт.

34

D43556

TUBE

- crossover to lock valve

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 36

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

37

D43550

VALVE

- lock (Parts list Figure 184)

1шт.

38

D43566

TUBE

- lock valve, to control valve hose

1шт.

39

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

40

D33316

CLAMP

- hose

2шт.

41

D33552

BUSHING

SPACER - clamp

1шт.

42

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

44

REF

INSTRUCTION

CYLINDER - lift (See Figure 226 for cylinders)

1шт.
