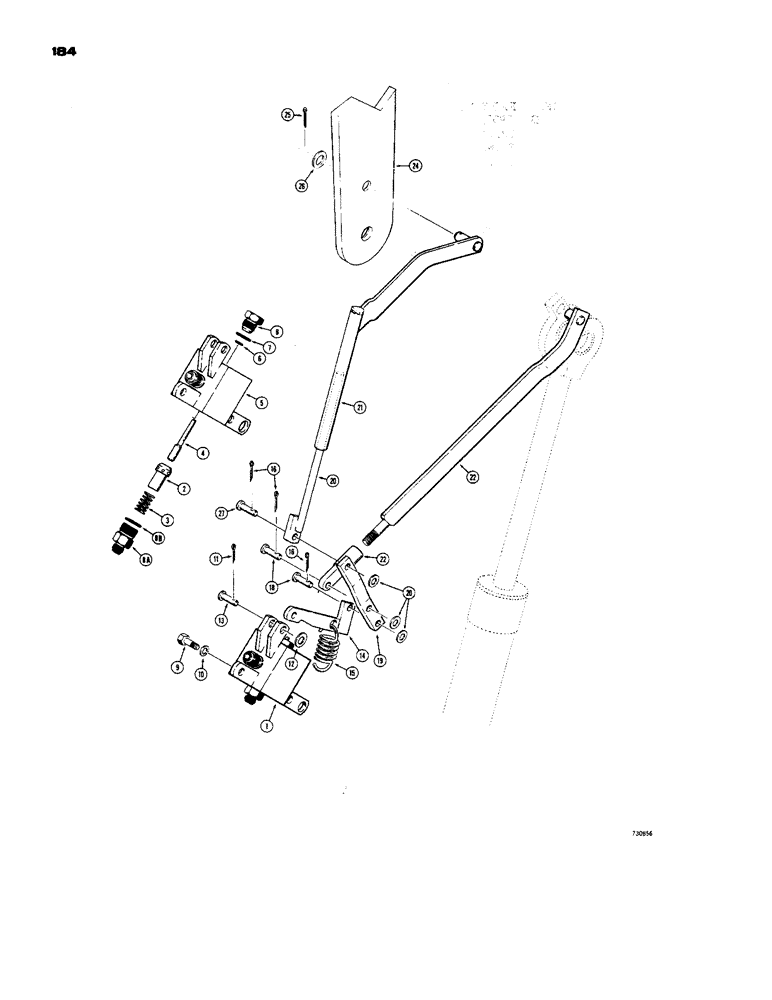

Запчасти Case 450 (184) - LOADER ANTI-ROLLBACK PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D43550

VALVE

- anti-rollback, loader bucket, Includes: Ref. 2 - 8B

1шт.

2

D41036

FITTING

RESTRICTOR - check valve

1шт.

3

D43831

SPRING

- check valve

1шт.

4

D41060

PLUNGER

- check valve

1шт.

5

D43549

VALVE

BODY - valve

1шт.

6

D41038

SEAL

- "O"ring, small

1шт.

8

D41051

GLAND

- valve

1шт.

8a

D43896

ADAPTER - special, Includes: Ref. 8B

1шт.

8b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

11

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

12

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

13

D42809

PIN

- valve control, Serial Range: lever-valve

1шт.

14

D41059

LEVER

- anti-rollback control, at valve

1шт.

15

D41041

SPRING

- lever return

1шт.

16

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

17

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

18

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (3/8" x 1")

2шт.

19

D43128

- connecting, rollback adjustment rod and push rod

1шт.

20

D43127

ROD

- push, valve closing

1шт.

21

NLS

NO LONGER SERVICED

TUBE - push rod engagement

1шт.

22

D41044

ROD

END - rollback adjustment

1шт.

23

D41066

ROD

- rollback adjustment

1шт.

24

D44628

LINK

- loader, inner (R.H.)

1шт.

25

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

26

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

27

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - clevis (3/8" x 1-1/4")

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.
