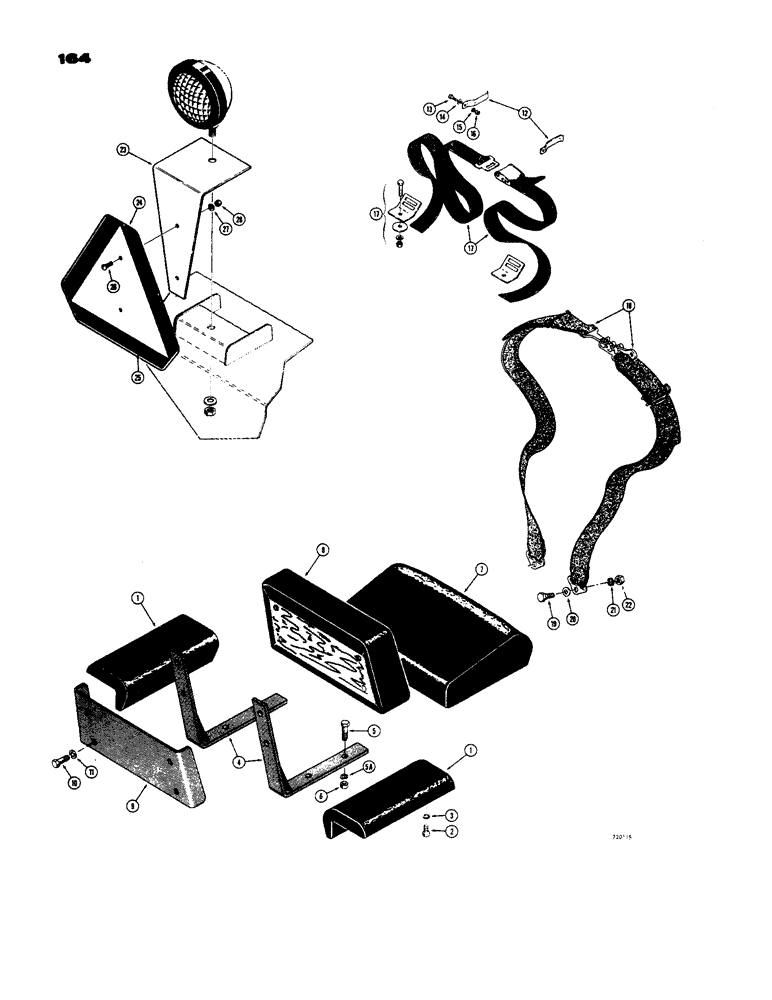

Запчасти Case 450 (164) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D35227

ARM

CUSHION - arm and hip

2шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

D35198

MOUNTING PARTS

BRACKET - seat mounting

2шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 2- NF x 1-1/2"

4шт.

5a

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

6

131-392

NUT

- lock, hex. (1/2" - 20 NF)

4шт.

7

D35226

SEAT

CUSHION - seat

1шт.

8

D44169

CUSHION

- back rest

1шт.

9

D35225

GUARD

SHIELD - back rest

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

12

D50522

HOOK

- D44411 seat belt

2шт.

12

R24720

HOOK

- L48907 seat belt

2шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

HHCS - 5/16" - 18 NC x 7/8", seat belt

2шт.

14

195-21

WASHER,5/16"

- plain (), Seat belt 5/16"

2шт.

15

92-5

LOCK WASHER,5/16"

med sect., seat belt 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), seat belt

1шт.

17

D44411

SEAT

BELT ASSEMBLY - seat, 1-13/16" wide (Includes hardware)

1шт.

18

L48907

BELT

SAFETY BELT, 3" wide

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Seat belt Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

20

95-8

WASHER,1/2"

- standard wrot, seat belt 1/2"

2шт.

21

92-8

LOCK WASHER,1/2"

med. sect., seat belt 1/2"

2шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), seat belt

2шт.

23

D52015

BRACKET - emblem mounting, slow moving vehicle

1шт.

A59449

NO LONGER SERVICED

EMBLEM ASSEMBLY - slow moving vehicle, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

25

321-1751

DECAL

- SMV emblem

1шт.

26

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head (#10 - 24 NC x 7/16"), smv emblem

2шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

28

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), smv emblem

2шт.
