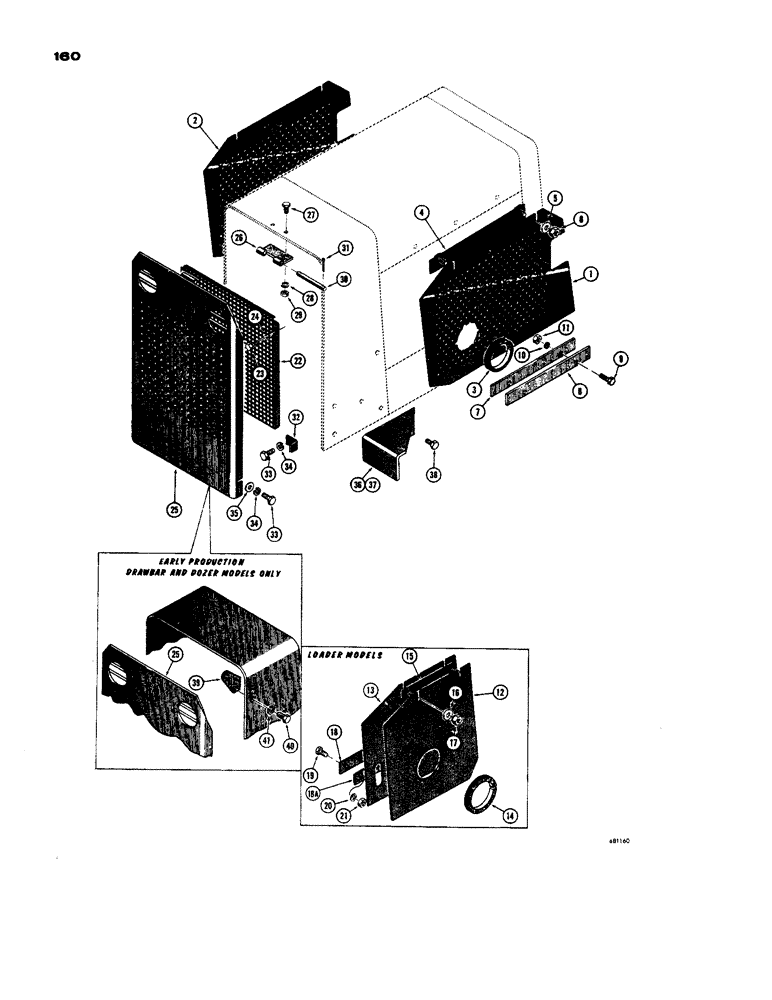

Запчасти Case 450 (160) - SIDE SHIELDS AND BRUSH GUARDS, SIDE SHIELD (USED ON DRAWBAR & DOZER MODELS ONLY) (05) - UPPERSTRUCTURE CHASSIS

1

D35432

GUARD

SHIELD - side, L.H.

1шт.

2

D35433

GUARD

SHIELD - side, R.H.

1шт.

3

D35424

LINING

TRIM - rubber

1шт.

4

D35428

PLATE

STRIP - side shield retaining

2шт.

5

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

6

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

4шт.

7

D38472

STRIP

- side shield retaining (Inner)

2шт.

8

D38471

STRIP

- side shield retaining (Outer)

2шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

12

D35430

PANEL

SHIELD - side, L.H., used on loader models only

1шт.

13

D35431

SHIELD

- side, R.H., used on loader models only

1шт.

14

D35424

LINING

TRIM - rubber, side shield used on loader models only

1шт.

15

D35425

STRIP

- side shield retaining, used on loader models only

2шт.

16

195-33

WASHER,1/2"

- flat (), side shield used on loader models only 1/2"

4шт.

17

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC), side shield used on loader models only

4шт.

18

D38472

STRIP

- side shield retaining (Inner), used on loader models only

2шт.

18a

D38471

STRIP

- side shield retaining (Outer), used on loader models only

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side shield used on loader models only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

med. sect., side shield used on loader models only 1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), side shield used on loader models only

4шт.

22

D35328

GUARD

SCREEN - grille, brush guard

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Brush guard Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

25

D35330

GUARD - grille, brush

1шт.

26

D40462

BRACKET - mounting grille, brush guard

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", brush guard

2шт.

28

92-6

LOCK WASHER,3/8"

brush guard 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), brush guard

2шт.

30

D40286

PIN - mounting bracket, brush guard

1шт.

31

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Brush guard 1/8" x 1"

2шт.

32

D35324

BRACKET - grille, lower, brush guard

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Brush guard Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

med. sect., brush guard 1/2"

4шт.

35

195-33

WASHER,1/2"

- flat (), brush guard 1/2"

2шт.

36

D35332

BUMPER - L.H., Drawbar Models only, brush guard

1шт.

37

D35333

BUMPER - R.H., Drawbar Models only, brush guard

1шт.

38

13-1282

HHCS - 3/4" - 10 NC x 2", brush guard

4шт.

39

D33548

BRACKET - mounting, grille (Upper) Early production models only

2шт.

39

D33548

BRACKET - mounting, grille (Upper) Early production models only

2шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Early production models only) Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Early production models only 1/2"

6шт.
