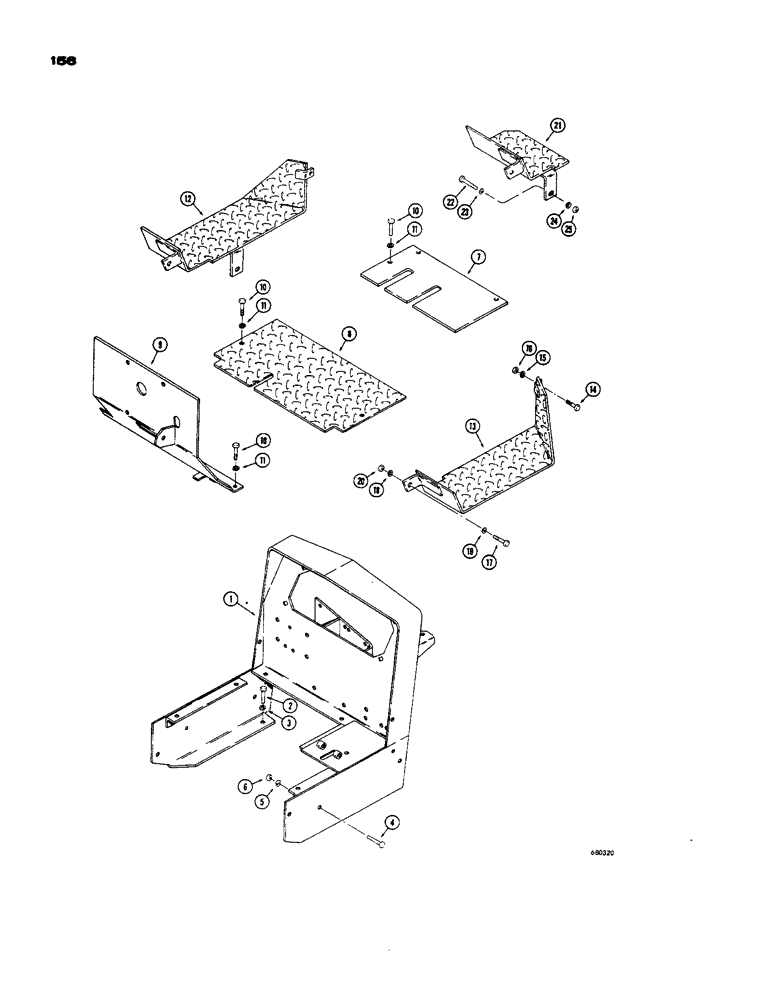

Запчасти Case 450 (156) - COWL. FLOOR PLATES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D35218

COWL - Dozer and Drawbar Models

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

7

D35168

X

PLATE - floor, front

1шт.

8

D35167

PLATE

- floor, rear

1шт.

9

D35169

PLATE - heel

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

7шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

7шт.

12

D35120

PLATE - step, L.H. (Drawbar and Dozer Models only)

1шт.

13

D35121

PLATE - step, R.H. (Drawbar and Dozer Models only)

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC

2шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 12/" - 13 NC x 1-3/4"

4шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

19

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

21

D35116

PLATE

- step (Loader Models only)

1шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

23

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

24

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
