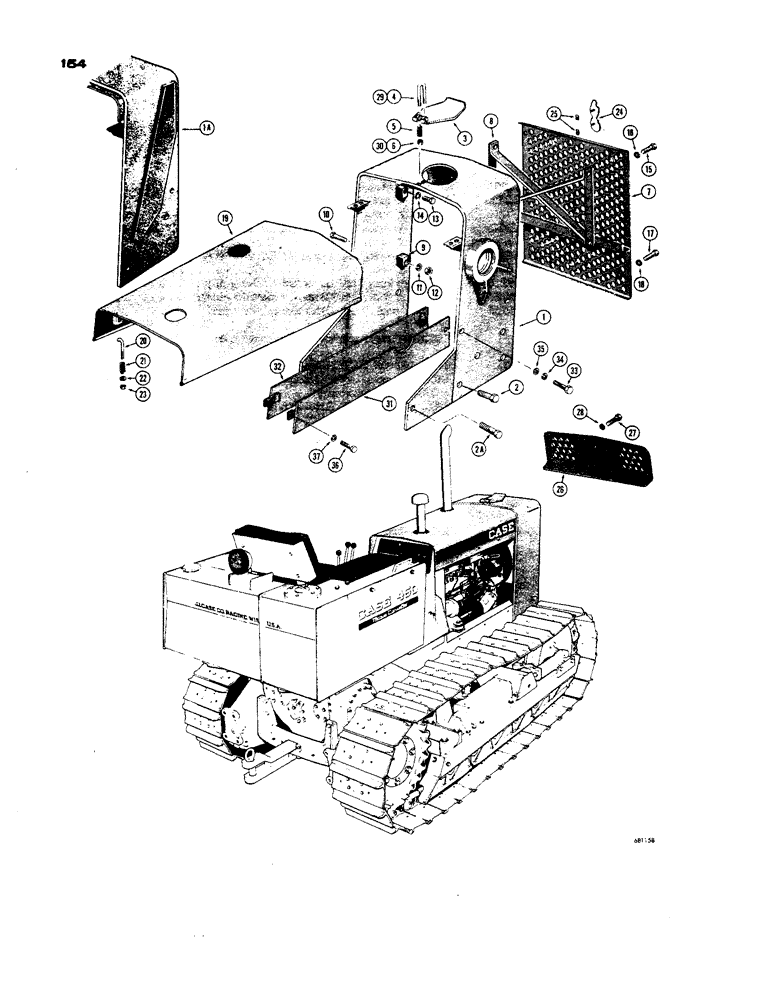

Запчасти Case 450 (154) - HOOD, SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D35194

GUARD - radiator, Drawbar Models only (For service, order (1) D43689 guard and ref. no. 26 thru 30)

1шт.

D35193

RIVET

GUARD - radiator, Dozer Models only (For service order (1) D43687 guard and ref. no. 26 thru 30)

1шт.

1a

D35195

GUARD - radiator, Loader Models only (For service, order (1) D43688 guard and ref. no. 26 thru 30)

1шт.

2

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Drawbar and Loader Models only) Hex, 3/4"-10 x 1 1/2", G5

8шт.

2a

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Dozer Models only) Hex, 3/4"-10 x 1 1/2", G5

10шт.

3

D30074

LID

- radiator

1шт.

4

D29688

U-BOLT

"U" BOLT - radiator lid.(Used on D35194, D35193 and D35195 guards only)

1шт.

5

23098

SPRING

- "U" bolt

1шт.

6

131-365

LOCK NUT

NUT - lock, hex. (5/16" - 24 NF) Used on D35193, D35194 and D35195 guards only

2шт.

7

D35210

RADIATOR

GUARD - grille

1шт.

8

D35190

BRACE

- radiator guard

1шт.

9

D35516

BLOCK

- brace mounting

2шт.

10

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

19

D49084

HOOD

- crawler

1шт.

20

D33958

BOLT

- hood hold down

4шт.

21

F60482

SPRING

- hood hold down bolt

4шт.

22

195-25

WASHER,3/8"

- plain

4шт.

23

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

24

A24526

MEDALLION - eagle

1шт.

25

131-138

PUSH-ON NUT

- Tinnerman

2шт.

26

D43668

GUARD

- light (Used on D43688 and D436689 guards only)

1шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used on D43687, D43688 and D43689 guards only Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

med. sect., used on D43687, D43688 and D43689 guards only 1/2"

2шт.

29

D35723

BOLT

"U" BOLT - radiator lid (Used on D43687, D43688 and D43689 guards only)

1шт.

30

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, hex. (5/16" - 18 NC) Used on D43687, D43688 and D43689 guards only

2шт.

31

D34996

PANEL - side, R.H.

1шт.

32

D34997

PANEL - side, L.H.

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

35

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

36

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.
