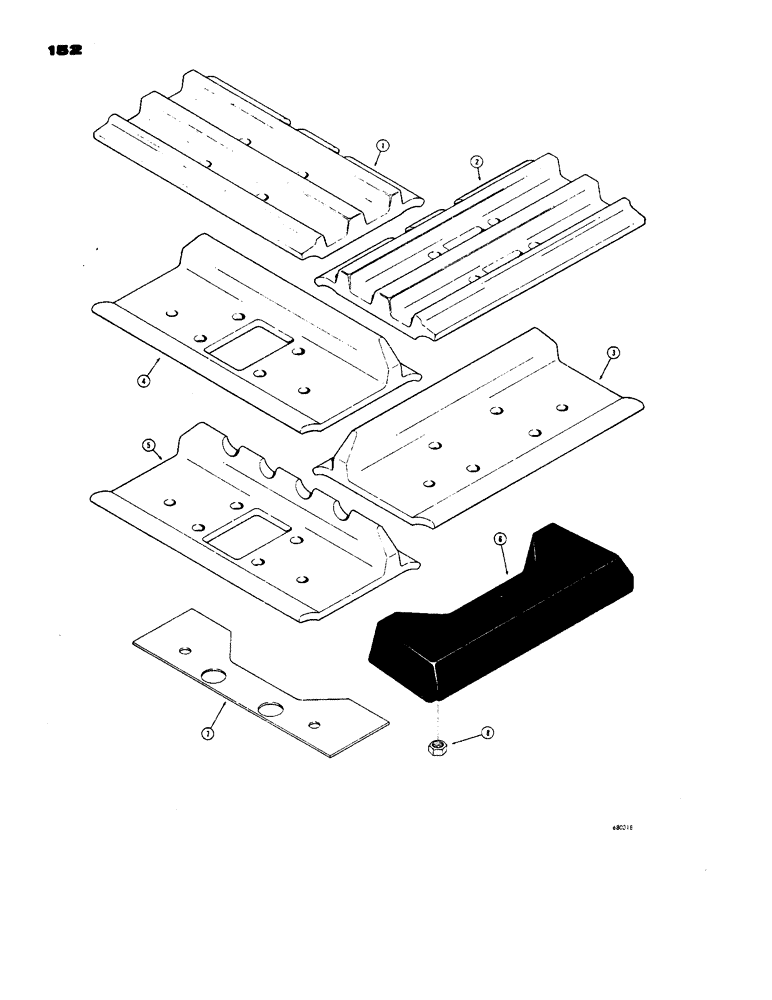

Запчасти Case 450 (152) - TRACK SHOES (OVER - LAPPING), USE WITH 1/2" BOLTS, SEMI-GROUSER - CLOSED (04) - UNDERCARRIAGE

1

D43320

TRACK SHOE

SHOE - track, 12" (All models)

74шт.

1

D43322

SHOE

- track, 14" (All models except Power Angle-Tilt Dozer models only)

74шт.

1

D45922

TRACK SHOE

SHOE - track, 14" offset (L.H.) Power Angle-Tilt Dozer Models only

36шт.

1

D45923

TRACK SHOE

SHOE - track, 14" offset (R.H.) Power Angle-Tilt dozer models only

36шт.

1

D43323

SHOE - track, 16" (Drawbar models only)

72шт.

1

D43324

SHOE - track, 18" (Drawbar models only)

72шт.

1

D43325

TRACK SHOE

SHOE - track, 20" (Drawbar models only)

72шт.

2

D43327

PLATE

SHOE - track, 12" (All models), semi grouser open center

74шт.

2

D43328

TRACK SHOE

SHOE - track, 14" (All models except Power Angle-Tilt Dozer models only), semi grouser open center

74шт.

2

D43329

SHOE - track, 16" (Drawbar models only), semi grouser open center

72шт.

3

D43476

TRACK SHOE

SHOE - track, 12" (All models), grouser closed

74шт.

3

D43477

TRACK SHOE

SHOE - track, 14" offset (L.H.) Power Angle-Tilt Dozer models only, grouser closed

36шт.

3

D43478

PLATE

SHOE - track, 14" offset (R.H.) Power Angle-Tilt Dozer models only, grouser closed

36шт.

3

D43479

TRACK SHOE

SHOE - track, 14" (Drawbar and all Power Angle Dozer models only), grouser closed

74шт.

3

D43480

TRACK SHOE

SHOE - track, 16" (Drawbar models only), grouser closed

72шт.

3

D43481

TRACK SHOE

SHOE - track, 18" (Drawbar models only), grouser closed

72шт.

3

D43482

TRACK SHOE

SHOE - track, 20" (Drawbar models only), grouser closed

72шт.

4

D43468

SPARE PART

SHOE - track, 12" (All models), grouser open center

74шт.

4

D43469

TRACK SHOE

SHOE - track, 14" offset (L.H.) Power Angle-Tilt Dozer models only, grouser open center

36шт.

4

D43470

TRACK SHOE

SHOE - track, 14" offset (R.H.) Power Angle-Tilt Dozer models only, grouser open center

36шт.

4

D43471

TRACK SHOE

SHOE - track, 14" (Drawbar and all Power Angle-Tilt Dozer models only), grouser open center

74шт.

4

D43472

SHOE

- track, 16" (Drawbar models only), grouser open center

72шт.

4

D43473

TRACK SHOE

SHOE - track, 18" (Drawbar models only), grouser open center

72шт.

4

D43474

TRACK SHOE

SHOE - track, 20" (Drawbar models only), grouser open center

72шт.

5

D43484

TRACK SHOE

SHOE - track, 12" (All models), grouser ice

74шт.

5

D43485

TRACK SHOE

SHOE - track, 14" (Drawbar and all Power Angle Dozer models only), grouser ice

74шт.

5

D43486

TRACK SHOE

SHOE - track, 16" (Drawbar models only), grouser ice

72шт.

6

D40469

SHOE (ASSY)

SHOE - track, rubber

74шт.

7

D44154

SHIM

rubber track shoe

74шт.

8

131-367

LOCK NUT

NUT - hex., lock (1/2" x 20 NF), rubber track shoe

148шт.
