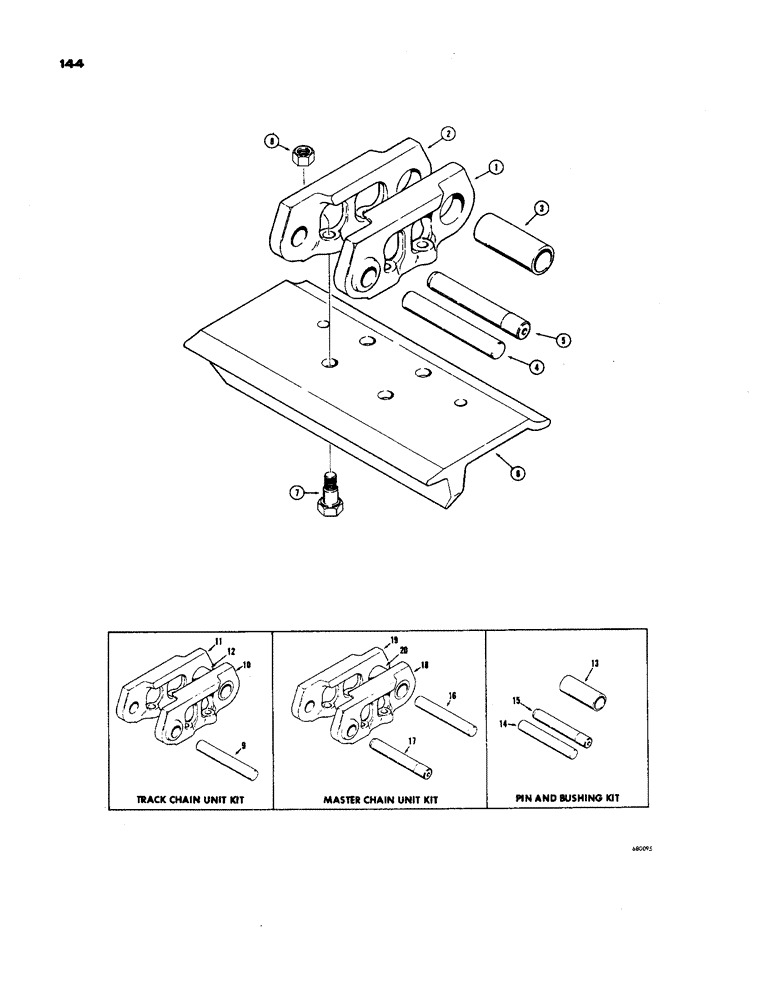

Запчасти Case 450 (144) - TRACK CHAIN (USED ON TRACTOR SERIAL NO. 3036032 TO 3038436), USED ON DOZER & LOADER MODELS (04) - UNDERCARRIAGE

D41619

CHAIN ASSEMBLY - 18 unit, Includes: Ref. 1 - 5

4шт.

1

D41616

DRAG LINK

LINK - track chain (R.H.)

18шт.

2

D41617

LINK

- track chain (L.H.)

18шт.

3

D35031

BUSHING

- track

18шт.

4

D35029

AXLE PIN

PIN - track, standard

17шт.

D43401

PIN

- track, service option (.003" oversized)

17шт.

5

D37598

PIN

- track, master

1шт.

6

REF

INSTRUCTION

SHOE - track (See Figures 150 and 152 for options)

74шт.

7

D48005

BOLT

BOLT - special (1/2" dia.)

288шт.

8

D43242

NUT

- special

288шт.

D41618

CHAIN ASSEMBLY - 19 unit (One per side), used on backhoe models, Includes: Ref. 1 - 5

2шт.

D41619

CHAIN ASSEMBLY - 18 unit (One per side), used on backhoe models, Includes: Ref. 1 - 5

2шт.

1

D41616

DRAG LINK

LINK - track chain (R.H.), used on backhoe models

19шт.

2

D41617

LINK

- track chain (L.H.), used on backhoe models

19шт.

3

D35031

BUSHING

- track, used on backhoe models

19шт.

4

D35029

AXLE PIN

PIN - track, standard, used on backhoe models

18шт.

D43401

PIN

- track, service option (.003" oversized), used on backhoe models

18шт.

5

D37598

PIN

- track, master, used on backhoe models

1шт.

6

REF

INSTRUCTION

SHOE - track (See Figures 150 and 152 for options), used on backhoe models

72шт.

7

D48005

BOLT

BOLT - special (1/2" dia.), used on backhoe models

296шт.

8

D43242

NUT

- special, used on backhoe models

296шт.

D43816

KIT

- track chain unit, Includes: Ref. 9 - 12

68шт.

9

D35029

AXLE PIN

PIN - track, standard, chain unit

2шт.

10

D41616

DRAG LINK

LINK - track chain (R.H.), unit

1шт.

11

D41617

LINK

- track chain (L.H.), unit

1шт.

12

D35031

BUSHING

- track chain, unit

1шт.

D36834

KIT

- pins and bushings, Includes: Ref. 13 - 15

1шт.

13

D35031

BUSHING

- track chain, pin kit

72шт.

14

D40870

PIN

- track, .003" oversized, bushing kit

68шт.

15

D43401

PIN

- track, master (.003" oversized), bushing kit

4шт.

D43817

KIT

- master chain unit, Includes: Ref. 16 - 20

4шт.

16

D35029

AXLE PIN

PIN - track, standard, master chain unit kit

1шт.

17

D37598

PIN

- track, master chain unit kit

1шт.

18

D41616

DRAG LINK

LINK - track chain (R.H.), master unit kit

1шт.

19

D41617

LINK

- track chain (L.H.), master unit kit

1шт.

20

D35031

BUSHING

- track chain, master unit kit

1шт.
