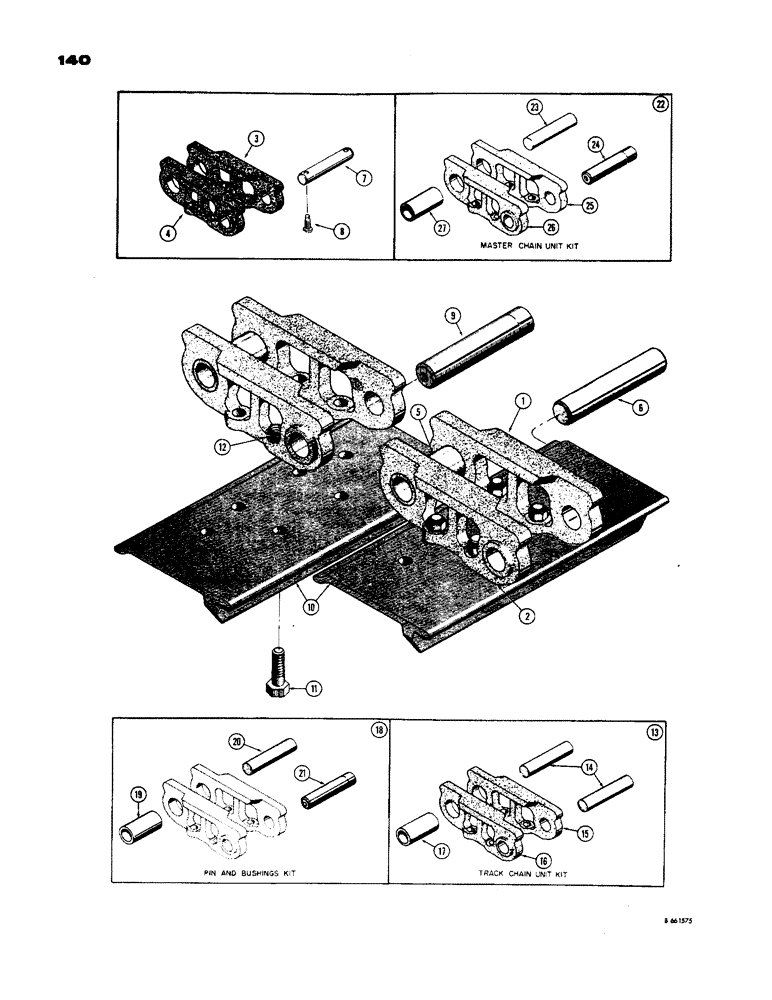

Запчасти Case 450 (140) - TRACK CHAIN (USED BEF. TRAC., S.N. 3036032) (04) - UNDERCARRIAGE

D35036

TRACK CHAIN

CHAIN ASSEMBLY - 18 unit, Includes: Ref. 1 - 9

4шт.

D35036 Is 2.03" across the link faces (inside)

1шт.

1

D35035

DRAG LINK

LINK - track chain, R.H.

18шт.

2

35034

FILTER, ELEMENT

LINK - track chain, L.H.

18шт.

3

D35033

X

LINK - master, R.H. (Use D35035 link and D37598 pin for service)

1шт.

4

D35032

X

LINK - master, L.H. (Use D35034 link and D35798 pin for service)

1шт.

5

D35031

BUSHING

- track chain

18шт.

6

D35029

AXLE PIN

PIN - track chain, standard

17шт.

7

NSS

NOT SOLD SEPARAT

PIN - master (Use D37598 pin for service)

1шт.

8

D35028

PIN

- lock, master

2шт.

9

D37598

PIN

- master

1шт.

10

REF

INSTRUCTION

SHOE - track (See Figure 146 for options)

72шт.

11

D41490

BOLT

- special (7/16" - 20 NF x 1-5/8")

288шт.

12

D29712

SPECIAL NUT

- special

288шт.

D35036

TRACK CHAIN

CHAIN ASSEMBLY - 18 unit, used on backhoe models from trac. s/n 3031017 up to 3036032, Includes: Ref. 1 - 9

2шт.

D38930

CHAIN ASSEMBLY - 19 unit, used on backhoe models from trac. s/n 3031017 up to 3036032, Includes: Ref. 1 - 9

2шт.

1

D35035

DRAG LINK

LINK - track chain, R.H., used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

19шт.

2

D35034

DRAG LINK

LINK - track chain, L.H., used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

19шт.

3

D35033

X

LINK - master, R.H. (Use D35035 link and D37598 pin for service), used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

1шт.

4

D35032

X

LINK - master, L.H. (Use D35034 link and D37598 pin for service, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

1шт.

5

D35031

BUSHING

- track chain, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

19шт.

6

D35029

AXLE PIN

PIN - track chain, standard, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

18шт.

7

NSS

NOT SOLD SEPARAT

PIN - master (Use D37598 pin for service), used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

1шт.

8

D35028

PIN

- lock, master, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

2шт.

9

D37598

PIN

- master, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

1шт.

10

REF

INSTRUCTION

SHOE - track (See Figure 146 for options), used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

74шт.

11

D41490

BOLT

- special, 7/16" dia., used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

296шт.

12

D29712

SPECIAL NUT

- special, used on backhoe models from trac. s/n 3031017, Serial Range: up-3036032

296шт.

13

D36833

LINK

KIT - track chain unit, Includes: Ref. 14 - 17

68шт.

14

D35029

AXLE PIN

PIN - track, standard, chain unit kit

2шт.

15

D35035

DRAG LINK

LINK - track chain, R.H., unit kit

1шт.

16

D35034

DRAG LINK

LINK - track chain, L.H., unit kit

1шт.

17

D35031

BUSHING

- track chain unit kit

1шт.

18

D36834

KIT

- pin and bushing, Includes: Ref. 19 - 21

1шт.

19

D35031

BUSHING

- track chain, pin & bushing kit

72шт.

20

D40870

PIN

- track, .003" oversized, pin & bushing kit

68шт.

21

D43401

PIN

- track, master (.003" oversized), pin & bushing kit

4шт.

22

D36832

LINK

KIT - chain, master, unit kit, Includes: Ref. 23 - 27

4шт.

23

D35029

AXLE PIN

PIN - track chain, standard, master unit kit

1шт.

24

D37598

PIN

- master chain unit kit

1шт.

25

D35035

DRAG LINK

LINK - track chain, R.H., master unit kit

1шт.

26

D35034

DRAG LINK

LINK - track chain, L.H., master unit kit

1шт.

27

D35031

BUSHING

- track chain, master unit kit

1шт.

17

D35031

BUSHING

- track chain, master unit kit

1шт.
