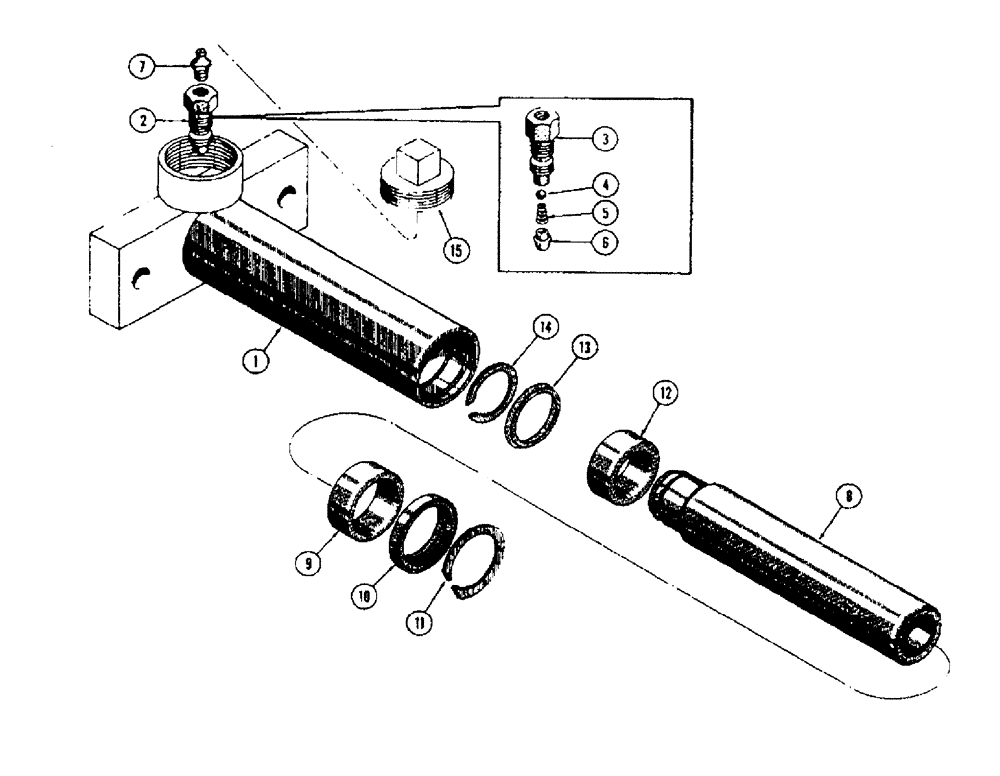

Запчасти Case 450 (138) - HYDRAULIC TRACK ADJUSTER (04) - UNDERCARRIAGE

D35504

ADJUSTER

HYDRAULIC ADJUSTER - complete, Includes: Ref. 1 - 15

2шт.

1

D35507

CYLINDER

TUBE - cylinder

1шт.

Tubes without snap ring groove must use D95144 wiper.

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - complete, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check ball

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - body

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

8

D35506

PISTON

1шт.

9

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- rider

1шт.

10

D37290

WINDSHIELD WIPER

WIPER - piston, use with D37291 snap ring (When stock is exhausted, use D95144 wiper)

1шт.

10

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

Tubes without snap ring groove must use D95144 wiper.

1шт.

11

D37291

SNAP RING,#250, 2.673", Int

RING - snap, retaining (Use with D37290 wiper)

1шт.

12

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

BEARING - backup

1шт.

13

D37288

PACKING

- "U" cup (When stock is exhausted, use D95382 packing)

1шт.

13

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

PACKING - "U" cup

1шт.

14

A27085

RING

SNAP RING - piston

1шт.

15

D43400

PLUG

- pipe

1шт.
