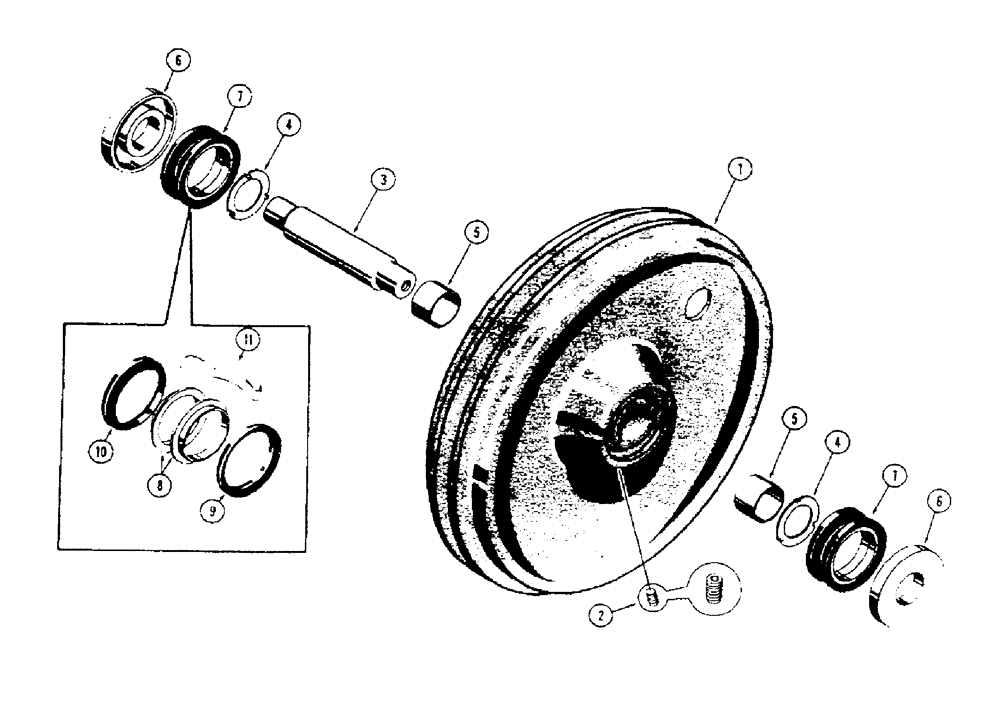

Запчасти Case 450 (138[1]) - IDLER WHEEL (04) - UNDERCARRIAGE

D35271

FRONT IDLER

IDLER WHEEL - complete, Includes: Ref. 1 - 11

2шт.

Use D48595 track adjuster cylinder tube when first subbing the R55697 idler wheel for the D35271

1шт.

1

D35272

FRONT IDLER

HUB - idler wheel

1шт.

2

221-841

PLUG

PLUG - pipe, hex, socket

1шт.

3

D35270

SHAFT

SHAFT - idler wheel

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust

2шт.

5

D35242

BUSHING

BUSHING - split (When stock is exhausted, use D46396 bushing)

2шт.

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

BUSHING - split

2шт.

6

D35265

COLLAR

BUSHING - thrust

2шт.

7

D35267

SEAL

SEAL - face, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.
