(137A) - TRACK CARRIER ROLLERS, D35352 CARRIER ROLLER (NON-FACE

Запчасти Case 450 (137A) - TRACK CARRIER ROLLERS, D35352 CARRIER ROLLER (NON-FACE (04) - UNDERCARRIAGE

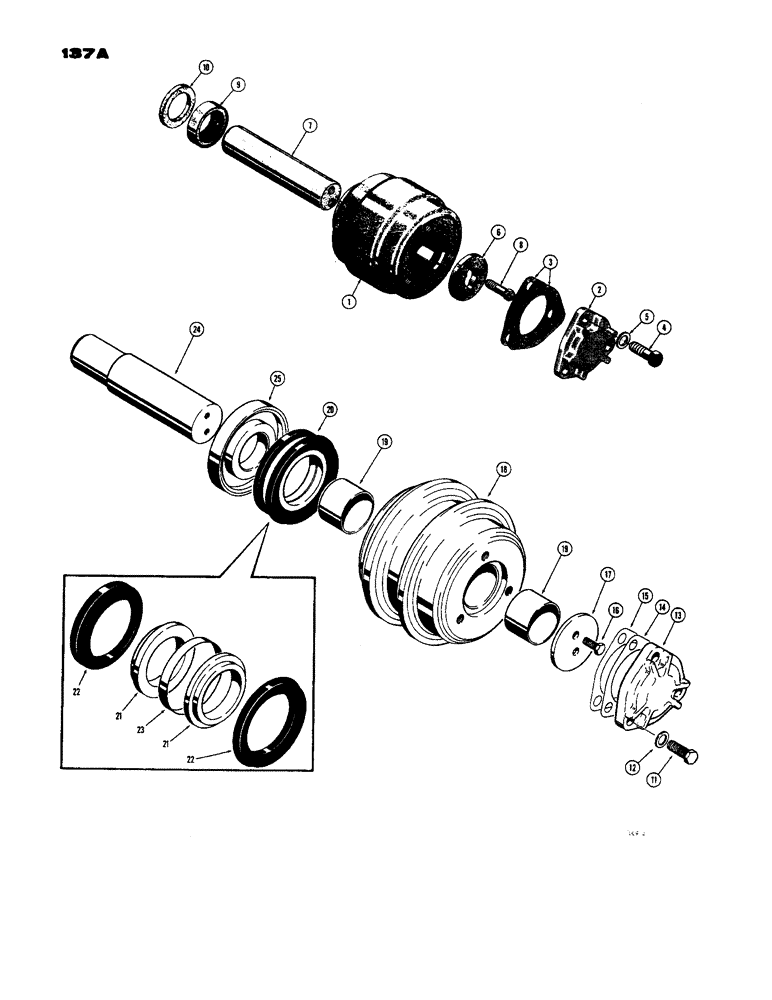

Схема запчастей Case 450 - (137A) - TRACK CARRIER ROLLERS, D35352 CARRIER ROLLER (NON-FACE (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D35352

X

ROLLER - track carrier (When stock is exhausted, use D49923 roller), Includes: Ref. 1 - 10

2шт.

1

D35357

HUB

- roller

1шт.

2

D30381

COVER

- hub

1шт.

3

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

5

D35288

WASHER

- copper

1шт.

6

D30382

WASHER

- thrust

1шт.

7

D35338

SHAFT

- roller

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

D35291

OIL RESERVOIR

SEAL - oil

1шт.

10

D35278

GUARD

SHIELD - oil seal

1шт.

D49923

ROLLER

- track carrier, Includes: Ref. 11 - 25

2шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

D49923 carrier roller (face sealed) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

12

D35288

WASHER

- copper, D49923 carrier roller (face sealed)

1шт.

13

D30381

COVER

- roller, D49923 carrier roller (face sealed)

1шт.

14

D30384

SHIM,.010" Thk

(Brown), D49923 Carrier roller (Face sealed) .010" Thk

1шт.

15

D30383

SHIM,.005" Thk

(Blue), D49923 Carrier roller (Face sealed) .005" Thk

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

D49923 carrier roller (face sealed) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

17

D30382

WASHER

- thrust, D49923 carrier roller (face sealed)

1шт.

18

D49921

HUB - roller, D49923 carrier roller (face sealed), Includes: Ref. 19

1шт.

19

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, D49923 carrier roller (face sealed)

2шт.

20

D35267

SEAL

- face, D49923 carrier roller (face sealed), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - seal, split, D49923 carrier roller (face sealed)

1шт.

D36826

SEAL KIT

KIT - repair, D49923 carrier roller (face sealed), Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - rubber, D49923 carrier roller (face sealed)

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D49923 carrier roller (face sealed)

1шт.

24

D49919

SHAFT

- roller, D49923 carrier roller (face sealed)

1шт.

25

D35265

COLLAR

BUSHING - thrust, D49923 carrier roller (face sealed)

1шт.
