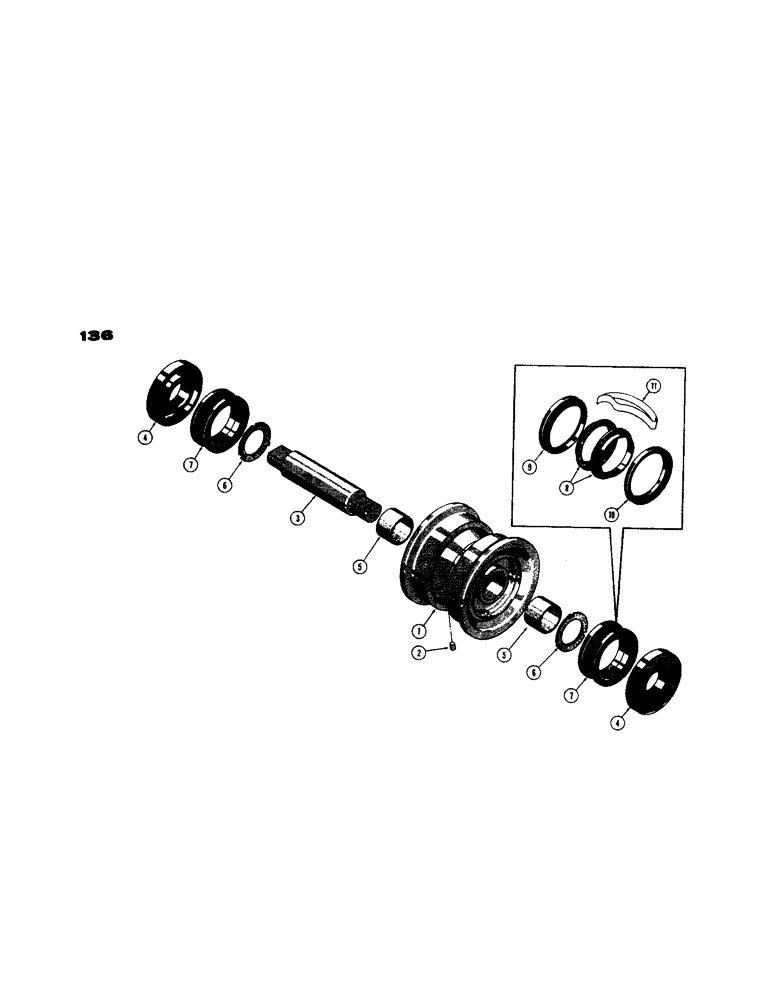

Запчасти Case 450 (136) - TRACK ROLLERS, D35350 TRACK ROLLER (04) - UNDERCARRIAGE

D35350

ROLLER

track, when stock is exhausted, use R5017 kit for service, Includes: Ref. 1 - 11

10шт.

The R5017 kits consists of R24034 roller, (5) D51644 shims and 9-71685 instruction sheet.

1шт.

1

D35351

HUB

- track roller, used on D35350 Roller only (When stock is exhausted, service with D43859 hub and D43858 shaft)

1шт.

1

D43859

BEARING, ROLLER

HUB - track roller, use with D43858 shaft only

1шт.

2

221-841

PLUG

- pipe, Allen head

1шт.

3

D35295

SHAFT - track roller, used on D35350 roller only (When stock is exhausted, service with D43858 shaft and D43859 hub)

1шт.

3

D43858

SHAFT

- track rollers, used with D43859 hub only

1шт.

4

D35265

COLLAR

- thrust

2шт.

5

D35242

BUSHING

- split, use D46396 bushing for service

2шт.

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

6

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

7

D35267

SEAL

- face, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.
