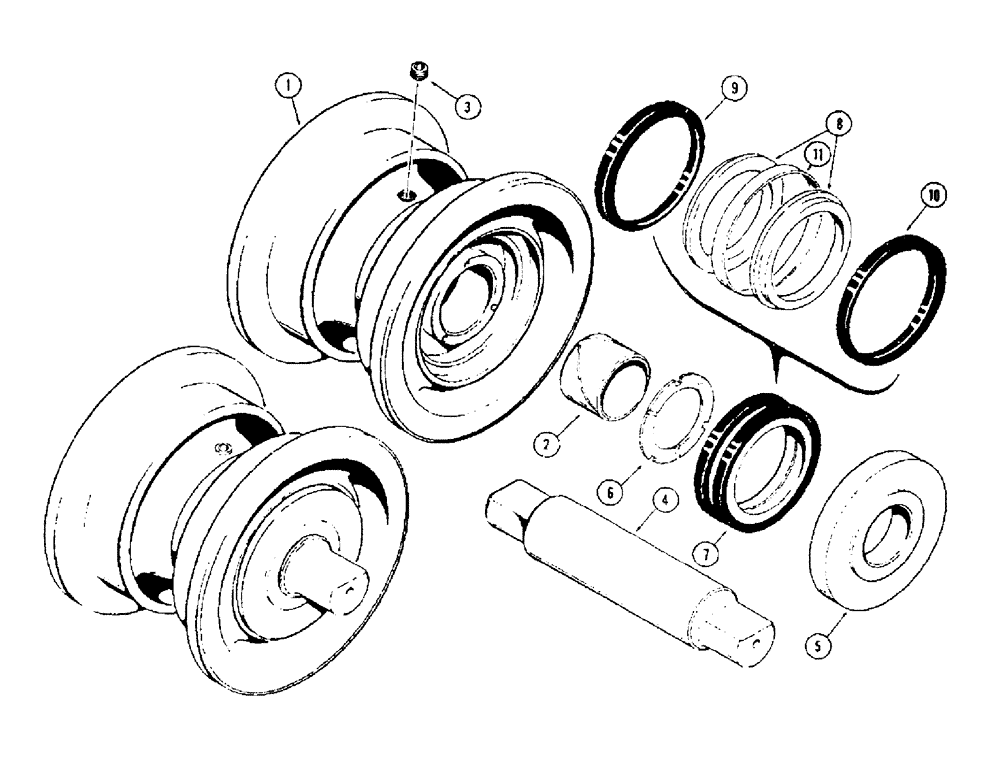

Запчасти Case 450 (136[1]) - TRACK ROLLERS, R24034 TRACK ROLLER (04) - UNDERCARRIAGE

NSS

NOT SOLD SEPARAT

ROLLER track, service with R5017 kit, Includes: Ref. 1 - 11

10шт.

The R5017 kits consists of R24034 roller, (5) D51644 shims and 9-71685 instruction sheet.

1шт.

1

R24033

ROLLER, TRACK

HUB - track roller, Includes: Ref. 2

1шт.

2

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

3

221-841

PLUG

- pipe, Allen head

1шт.

4

D43858

SHAFT

- track roller

1шт.

5

D35265

COLLAR

- thrust

2шт.

6

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust

2шт.

7

D35267

SEAL

- face, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal

1шт.

D36826

SEAL KIT

KIT - field repair, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.
