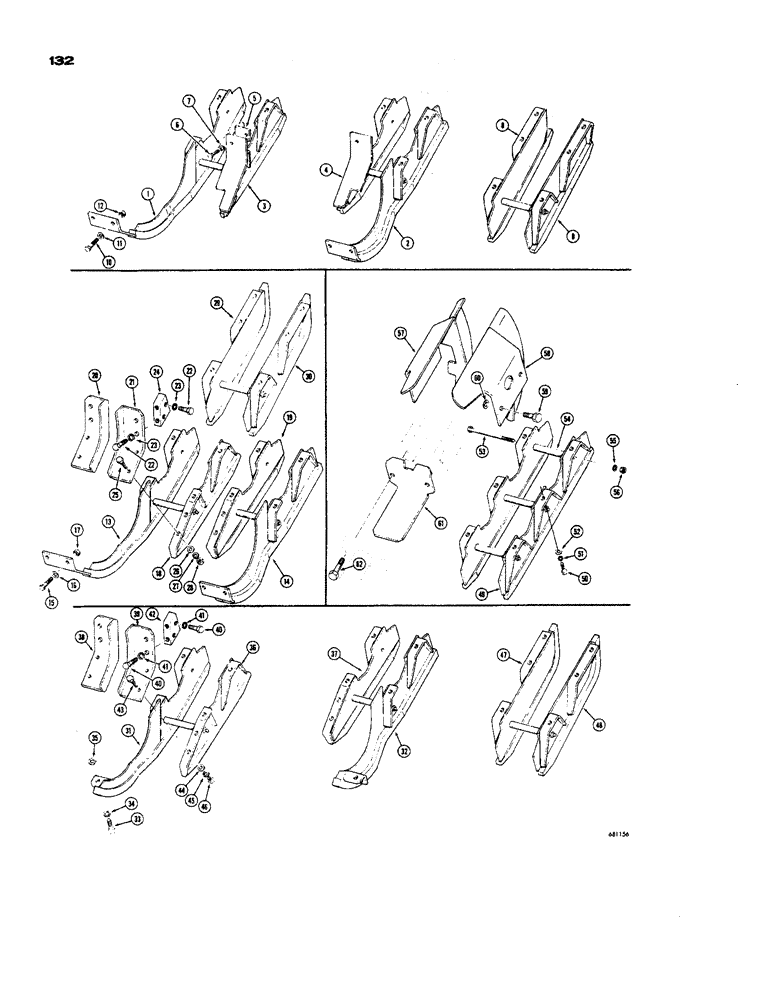

Запчасти Case 450 (132) - TRACK GUIDES (ROCK GUARDS), USED BEFORE TRACTOR SERIAL NO. 3031839 (04) - UNDERCARRIAGE

1

D42120

TRACK GUIDE - rear, inner (R.H.)

1шт.

2

D42121

TRACK GUIDE - rear, inner (L.H.)

1шт.

3

D35383

X

TRACK GUIDE - rear, outer (R.H.) Use refs 18, 20, 22, 23, 24, 25, 26, 27 and 28 for service

1шт.

4

D35382

X

TRACK GUIDE - rear, outer (L.H.) Use refs 19, 21, 22, 23, 24, 25, 26, 27, and 28 for service

1шт.

5

D35379

X

BRACKET - mounting, rear track guide (Use refs 20, 21 and 24 for service)

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

8

D35365

X

TRACK GUIDE - front, L.H. (When stock is exhausted, order ref 30 for service)

2шт.

9

D35364

X

TRACK GUIDE - front, R.H. (When stock is exhausted, order ref 29 for service)

2шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

12

25-1012

NUT,3/4"-10, G5

4шт.

13

D42120

TRACK GUIDE - rear, inner (R.H.), used on trac s/n, Serial Range: 3031839-3036218

1шт.

14

D42121

TRACK GUIDE - rear, inner (L.H.), used on trac s/n, Serial Range: 3031839-3036218

1шт.

15

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used on tractor S/N 3031839 to 3036218 Hex, 3/4"-10 x 2 1/4", G5

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, used on trac s/n, Serial Range: 3031839-3036218

4шт.

17

25-1012

NUT,3/4"-10, G5

Used on tractor S/N 3031839 to 3036218 3/4"-10, G5

4шт.

18

D39567

GUARD

TRACK GUIDE - rear, outer (R.H.), used on trac s/n, Serial Range: 3031839-3036218

1шт.

19

D39566

GUARD

TRACK GUIDE - rear, outer (L.H.), used on trac s/n, Serial Range: 3031839-3036218

1шт.

20

D39559

GUARD

- sprocket, outer (R.H), used on trac s/n, Serial Range: 3031839-3036218

1шт.

21

D39558

GUARD

- sprocket, outer (L.H.), used on trac s/n, Serial Range: 3031839-3036218

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

HHCS - 5/8" - 11 NC x 1-1/2", used on tractor S/N 3031839 to 3036218

8шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on tractor S/N 3031839 to 3036218 5/8"

8шт.

24

D39560

BLOCK

- sprocket guard mounting, used on trac s/n, Serial Range: 3031839-3036218

2шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", used on trac s/n 3031839 to 3036218

4шт.

26

195-33

WASHER,1/2"

- flat (), used on trac s/n 3031839 to 3036218 1/2"

4шт.

27

92-8

LOCK WASHER,1/2"

med. sect., used on trac s/n 3031839 to 3036218 1/2"

4шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on trac s/n 3031839 to 3036218

4шт.

29

D39554

GUARD

TRACK GUIDE - front, R.H., used on trac s/n, Serial Range: 3031839-3036218

2шт.

30

D39553

GUARD

TRACK GUIDE - front, L.H., used on trac s/n, Serial Range: 3031839-3036218

2шт.

31

D42781

GUARD

TRACK GUIDE - rear, inner (R.H.), used on trac s/n 3036218 & aft

1шт.

32

42782

PLATE

TRACK GUIDE - rear, inner (L.H.), used on trac s/n 3036218 & aft

1шт.

33

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used on tractor S/N 3036218 & aft Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on tractor S/N 3036218 & aft 5/8"

2шт.

35

195-41

WASHER,5/8"

- flat (), Used on trac S/N 3036218 & aft 5/8"

2шт.

36

D39567

GUARD

TRACK GUIDE - rear outer (R.H.), used on trac s/n 3036218 & aft

1шт.

37

D39566

GUARD

TRACK GUIDE - rear outer (L.H.), used on trac s/n 3036218 & aft

1шт.

38

D39559

GUARD

- sprocket, outer (R.H.), used on trac s/n 3036218 & aft

1шт.

39

D39558

GUARD

- sprocket, outer (L.H.), used on trac s/n 3036218 & aft

1шт.

40

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used on tractor S/N 3036218 & aft Hex, 5/8"-11 x 1 1/4", G5, Full Thd

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on tractor S/N 3036218 & aft 5/8"

8шт.

42

D39560

BLOCK

- sprocket guard mounting, used on trac s/n 3036218 & aft

2шт.

42

D39560

BLOCK

- sprocket guard mounting, used on trac s/n 3036218 & aft

2шт.

43

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", used on trac s/n 3036218 & aft

4шт.

44

195-33

WASHER,1/2"

- flat (), used on trac s/n 3036218 & aft 1/2"

4шт.

45

92-8

LOCK WASHER,1/2"

med. sect., used on trac s/n 3036218 & aft 1/2"

4шт.

46

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on trac s/n 3036218 & aft

4шт.

47

D39554

GUARD

TRACK GUIDE - front, R.H., used on trac s/n 3036218 & aft

2шт.

48

D39553

GUARD

TRACK GUIDE - front, L.H., used on trac s/n 3036218 & aft

2шт.

49

D35387

GUIDE

TRACK GUIDE - center, used on all models

2шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on all models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

32шт.

51

92-8

LOCK WASHER,1/2"

med. sect., used on all models 1/2"

32шт.

52

195-33

WASHER,1/2"

- flat (), used on all models 1/2"

32шт.

53

13-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

HHCS - 1/2" - 13 NC x 7-1/2", used on all models

10шт.

54

D35372

BUSHING

SPACER - track guide, used on all models

10шт.

55

92-8

LOCK WASHER,1/2"

med. sect., used on all models 1/2"

10шт.

56

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), used on all models

10шт.

57

D39575

GUARD

- rock, idler wheel (L.H.), used on all models

2шт.

58

D39574

GUARD

- rock, idler wheel (R.H.), used on all models

2шт.

59

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Used on all models Hex, 3/4"-10 x 1 1/2", G5

8шт.

60

D35268

SHIM,1/32" Thk

Guard, used on all models 1/32" Thk

1шт.

61

D39576

GUARD

- rock, track frame, used on all models

2шт.

62

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Used on all models Hex, 3/4"-10 x 3", G5

4шт.
