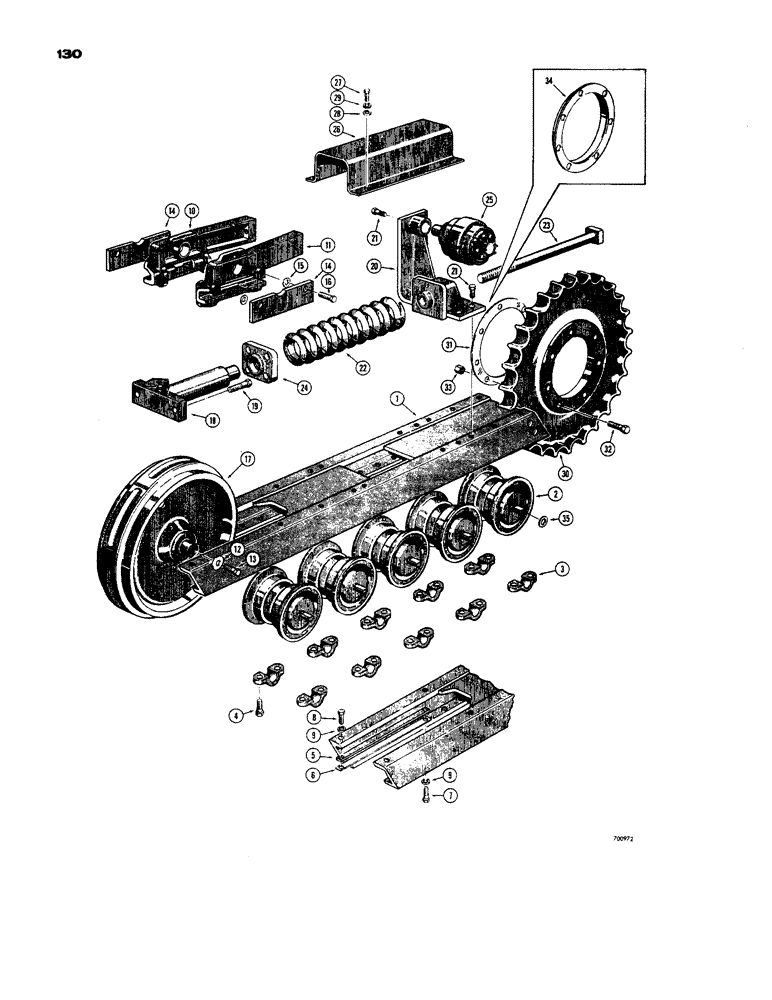

Запчасти Case 450 (130) - TRACTOR FRAME AND RECOIL SYSTEM (04) - UNDERCARRIAGE

1

D35362

FRAME - track (Drawbar and Loader Models only)

2шт.

D35359

FRAME - track, L.H. (Angle-Tilt Dozer Models)

1шт.

D35358

FRAME - track, R.H. (Angle-Tilt Dozer Models)

1шт.

D35360

FRAME - track, L.H. (Angling Dozer Models only)

1шт.

D35361

FRAME - track, R.H. (Angling Dozer Models only)

1шт.

2

D35350

ROLLER

- track, parts list Figure 136 (When stock is exhausted, order D43860 roller for service)

10шт.

D43860

ROLLER

- track, parts list Figure 136 (Service replacement)

10шт.

3

D35346

SHIN

CAP - track roller shaft retainer

20шт.

4

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

40шт.

5

D35290

STRIP

SHIM - wear plate (.049" thick)

1шт.

6

D35276

PLATE

- wear, track channel

4шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

D35274

BRACKET

- idler, R.H.

2шт.

11

D35273

BRACKET

- idler, L.H.

2шт.

12

D21262

WASHER

- special

4шт.

13

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

14

D35269

PLATE

- idler guide

4шт.

15

D35268

SHIM,1/32" Thk

Guide plate 1/32" Thk

1шт.

16

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

17

D35271

FRONT IDLER

IDLER WHEEL - complete (Parts list, Figure 138)

2шт.

18

D35504

ADJUSTER

- track, hydraulic (Parts list, Figure 138)

2шт.

19

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

20

D35355

BRACKET

- mounting, track carrier roller (L.H.)

1шт.

D35354

BRACKET

- mounting, track carrier roller (R.H.)

1шт.

21

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

10шт.

22

D35277

SPRING

- recoil

2шт.

23

D35344

BOLT

- recoil spring (When stock is exhausted, use D38668)

2шт.

D38668

BOLT

STUD ASSEMBLY - recoil spring

2шт.

24

D35343

NUT

- tension adjusting (When stock is exhausted, use D47539 for service)

2шт.

D47539

NUT

- tension adjusting

2шт.

25

REF

INSTRUCTION

TRACK CARRIER ROLLER - see Figure 137A for proper roller

2шт.

26

D35337

COVER

- recoil spring

2шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

28

195-33

WASHER,1/2"

- flat () 1/2"

8шт.

29

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

30

D35003

X

SPROCKET - drive (Used on all models except Backhoe Models before tractor serial no. 3031705, on Backhoe Models before tractor serial no. 3031017) When stock is exhausted, use D39536 or D39535 sprocket)

2шт.

D39536

X

SPROCKET - dirve (Use on all models except Backhoe Models after tractor serial no. 3031705 to 3034836) When stock is exhausted, use D43409 sprocket for service

2шт.

D43409

SPROCKET ASSY.

SPROCKET - drive (Use on all models except Backhoe Models after tractor serial no. 3038435)

2шт.

D38927

X

SPROCKET - drive (Use on Backhoe Models after tractor serial no. 3031016 to 3031773) When stock is exhausted, use D39535 sprocket for service

2шт.

D39535

SPROCKET ASSY.

SPROCKET - drive (Use on Backhoe Models after tractor serial no. 3031744 to 3038436) When stock is exhausted, use D43349 sprocket for service

2шт.

D43349

DRIVE SPROCKET

SPROCKET - drive (Use on Backhoe Models after tractor serial no. 3038435)

2шт.

31

D39530

SHIM,.03125" Thk

Drive sprocket (Use with D39535, D39536, D43409 and D43349 sprockets) .03125" Thk

1шт.

32

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- mounting, sprocket

14шт.

33

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex. (3/4" - 16 NF) special

14шт.

34

D45344

GUARD

SEAL - final drive, service option

4шт.

35

D51644

SHIM

- .0359" thick, between rollers and track frame

1шт.

D43349

DRIVE SPROCKET

SPROCKET - drive (Use on Backhoe Models after tractor serial no. 3038435)

2шт.
