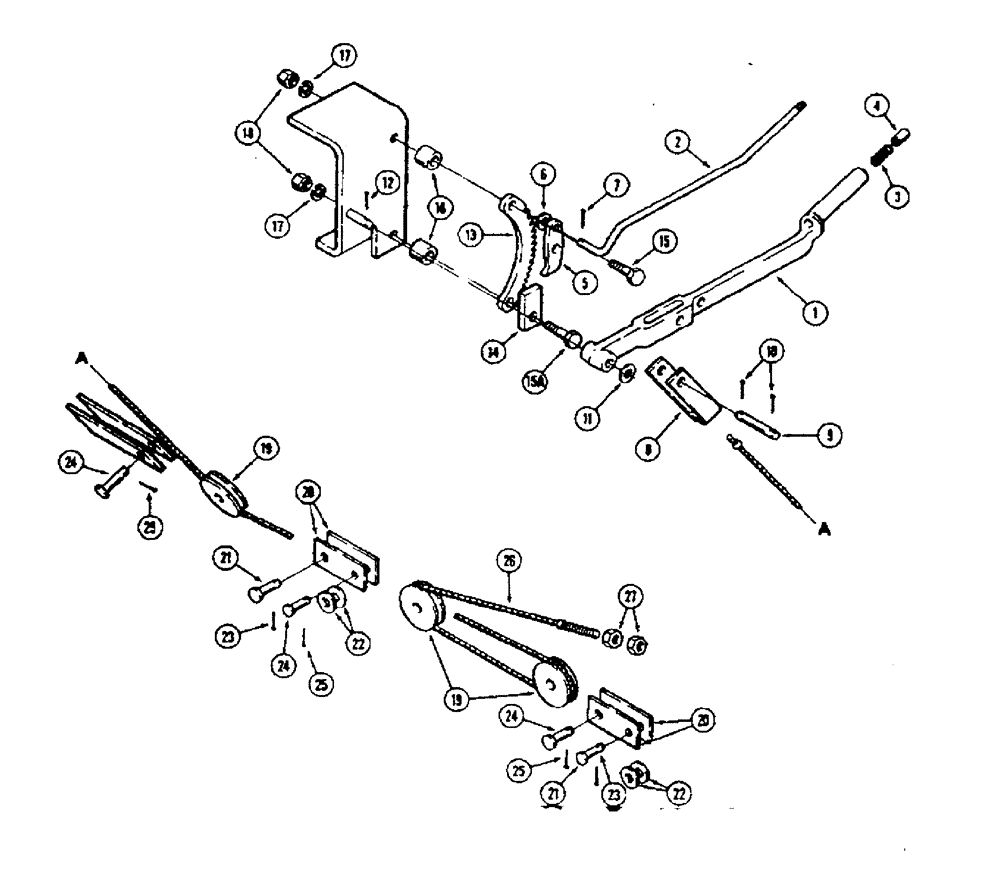

Запчасти Case 450 (122) - PARKING BRAKE, USED BEFORE TRACTOR SERIAL NO. 3035031 (04) - UNDERCARRIAGE

1

R20296

HANDLE

- parking brake

1шт.

2

R20297

ROD - parking brake

1шт.

3

R13850

SPRING

- parking brake rod

1шт.

4

R13851

BUTTON - control, parking brake

1шт.

5

R13848

KEY

PAWL - parking break

1шт.

6

195-18

WASHER,1/4"

- plain () 1/4"

1шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

8

D35004

CHANNEL - hand brake

1шт.

9

72311

CAP COVER

PIN - yoke

1шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

13

R13847

BRACKET

RATCHET - hand brake

1шт.

14

D35006

PLATE - handle stop

1шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

15a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

T31088

SPACER,3/8" Pipe x 1/2"

Ratchet Mounting 3/8" Pipe x 1/2"

2шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

19

D32543

SHEAVE

PULLEY - parking brake cable

3шт.

20

D35007

LINK - pulley

4шт.

21

A8823

PIN,6.29mm OD x 26.99mm L

- yoke

2шт.

22

195-18

WASHER,1/4"

- plain () 1/4"

4шт.

23

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

25

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

26

D35008

NO LONGER SERVICED

CABLE - parking brake

1шт.

27

25-114

NUT,1/4"-28, G5

- hex., 1/4" - 28 NF

2шт.
