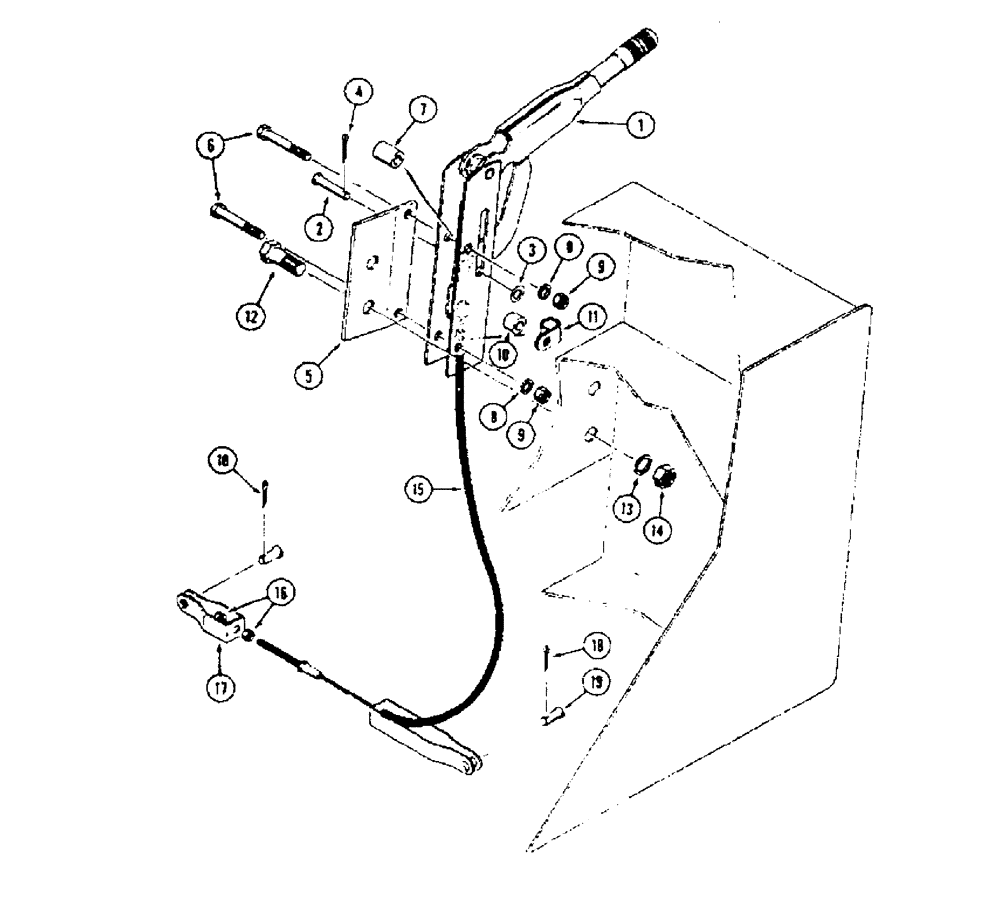

Запчасти Case 450 (122[1]) - PARKING BRAKE, USED ON TRACTOR SERIAL NO. 3035031 AND AFTER (04) - UNDERCARRIAGE

D40687

LEVER

BRAKE LEVER - parking, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - PARKING brake

1шт.

2

D42458

PIN

- clevis

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

D40686

PLATE - brake mounting

1шт.

6

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

7

D40685

SPACER

- lever

1шт.

8

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

10

K8169

SPACER - clamp

1шт.

11

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable guide

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (5/16" - 24 NF)

2шт.

D40688

X

CABLE ASSY - brake, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

CABLE - brake

1шт.

16

129-122

NUT,5/16"-24, G5

2шт.

17

D42457

CLEVIS - cable

1шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - cable yoke

2шт.

19

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.
