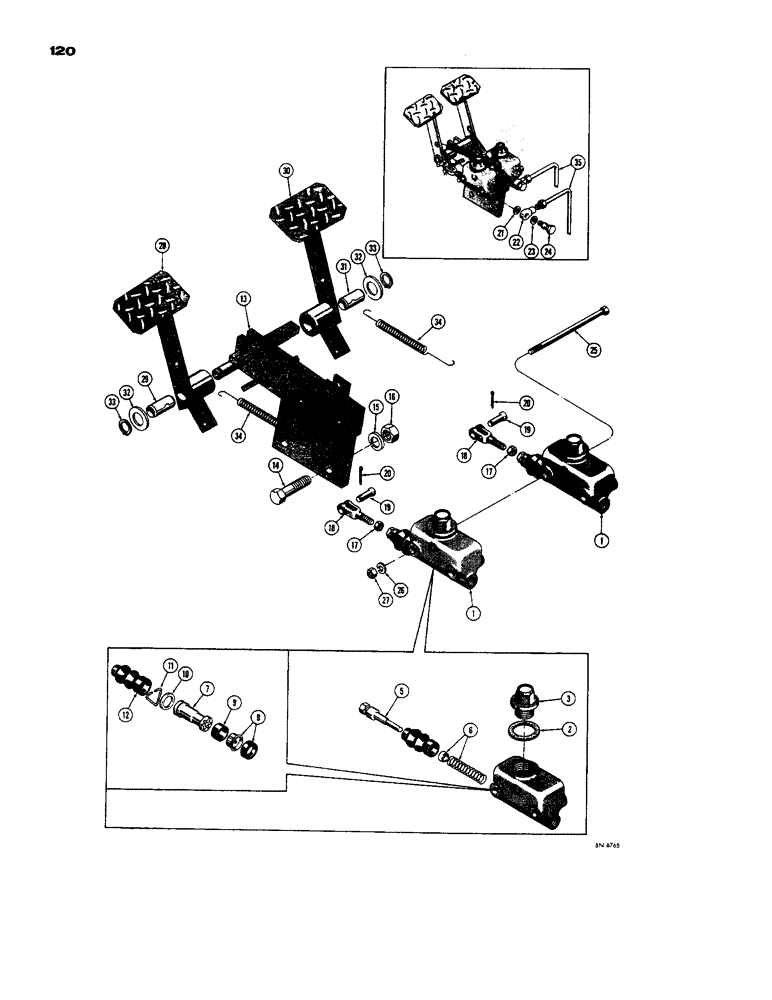

Запчасти Case 450 (120) - BRAKE PEDALS (04) - UNDERCARRIAGE

1

31481

CYLINDER

ASSEMBLY - master, Includes: Ref. 2 - 12

2шт.

2

A19755

GASKET

- filler cap

1шт.

3

A19918

CAP

- filler

1шт.

5

33345

ROD

- push

1шт.

6

33352

SPRING

RETAINER AND SPRING ASSEMBLY

1шт.

5896

KIT

- master cylinder repair, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE

1шт.

9

NSS

NOT SOLD SEPARAT

CUP - master cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - piston stop

1шт.

11

NSS

NOT SOLD SEPARAT

LOCKWIRE - piston stop

1шт.

12

33346

BOOT

- master cylinder

1шт.

13

D34918

SUPPORT

PLATE - mounting, brake

1шт.

14

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

25-1010

NUT,5/8"-11, G5

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

18

D43830

YOKE

END - threaded, (7/16" Clevis)

2шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN - clevis (7/16")

2шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

NLS

NO LONGER SERVICED

- inlet connection (Front)

2шт.

22

50861

FITTING

- inlet

2шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection (Rear)

2шт.

24

A12864

BOLT

- retaining, inlet fitting

2шт.

25

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

2шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

28

D34908

PEDAL - brake, L.H., Includes: Ref. 29

1шт.

29

R19189

SLEEVE

BUSHING - brake pedal (When stock is exhausted, use D40392)

1шт.

D40392

BUSHING

- brake pedal

1шт.

30

D34911

PEDAL - brake, R.H., Includes: Ref. 31

1шт.

31

R19189

SLEEVE

BUSHING - brake pedal (When stock is exhausted, use D40392)

1шт.

D40392

BUSHING

- brake pedal

1шт.

32

195-45

WASHER,3/4"

2шт.

33

T25683

SNAP RING,#75, Ext

Ring, Snap, , brake pedal #75, Ext

2шт.

34

11469

SPRING

- return, brake pedal

2шт.

35

D34921

X

TUBE - master, Serial Range: cylinder-transmission

2шт.
