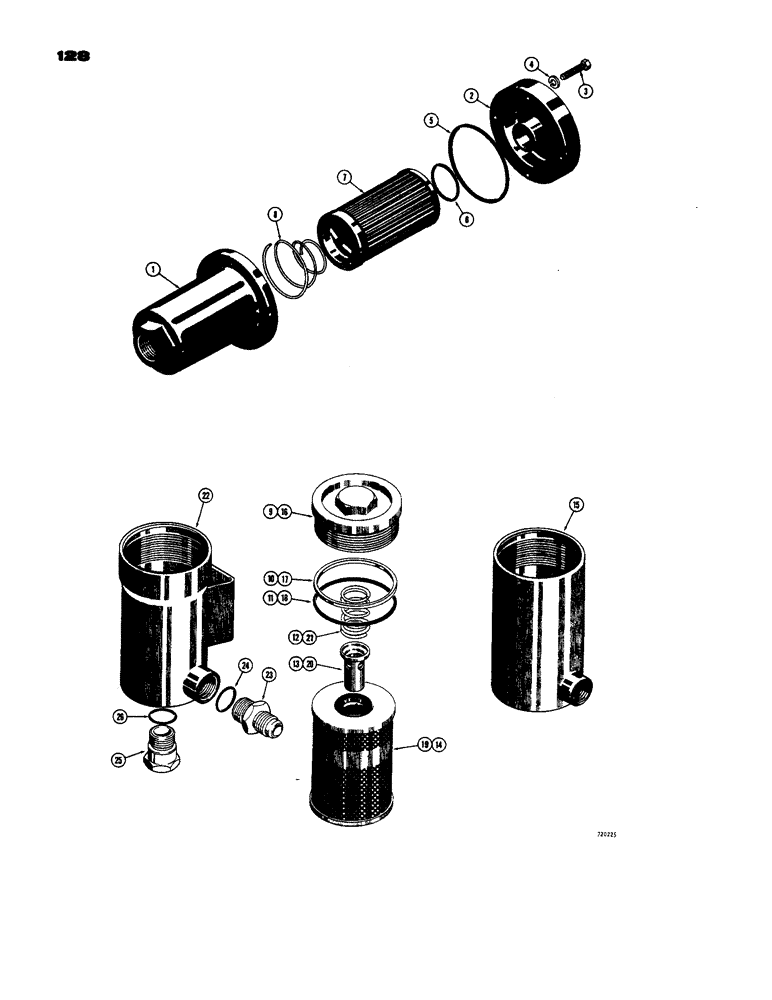

Запчасти Case 450 (128) - TRANSMISSION OIL FILTERS, D35144 TRANSMISSION OIL FILTER (03) - TRANSMISSION

D35144

FILTER

FILTER - transmission oil, suction line, Includes: Ref. 1 - 8

1шт.

1

D37033

HOUSING

- filter

1шт.

2

D37034

HEAD

- filter

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

SEAL - "O" ring, housing

1шт.

6

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring, element

1шт.

7

D37035

FILTER, ELEMENT

ELEMENT - filter

1шт.

8

D37036

SPRING

- element

1шт.

D35153

FILTER

- transmission oil, pressure line (When stock is exhausted order (1) D46132 filter, (1) 218-5063 connector and (1) 218-5094 adapter for service), Includes: Ref. 9 - 15

1шт.

9

D31214

CAP

- D35153 transmission oil filter (pressure line)

1шт.

10

D36095

BACK-UP RING

- backup, D35153 transmission oil filter (pressure line)

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, D35153 transmission oil filter (pressure line)

1шт.

12

D31212

SPRING

- retaining, D35153 transmission oil filter (pressure line)

1шт.

13

D37207

VALVE

- relief, D35153 transmission oil filter (pressure line)

1шт.

14

D31213

FILTER, ENGINE OIL

ELEMENT - (Used in D35153 filter only), D35153 transmission oil filter (pressure line)

1шт.

15

D49023

BODY

- D35153 transmission oil filter (pressure line)

1шт.

D46132

FILTER

- transmission oil, pressure line (Used as service replacement), Includes: Ref. 16 - 22

1шт.

16

D31214

CAP

- D46132 transmission oil filter (pressure line) used as service replacement

1шт.

A62871

ELEMENT

KIT - D46132 transmission oil filter (pressure line) used as service replacement, Includes: Ref. 17 - 19

1шт.

17

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D46132 Transmission oil filter (Pressure line) used as service replacement

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, D46132 transmission oil filter (pressure line) used as service replacement

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT - (Order A62871 element kit for service), D46132 transmission oil filter (pressure line) used as service replacement

1шт.

20

D37207

VALVE

- relief, D46132 transmission oil filter (pressure line) used as service replacement

1шт.

21

D31212

SPRING

- retaining, D46132 transmission oil filter (pressure line) used as service replacement

1шт.

22

D46130

HOUSING

BODY - D46132 transmission oil filter (pressure line) used as service replacement

1шт.

23

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male (Used with D46132 filter only), D46132 transmission oil filter (pressure line) used as service replacement, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D46132 transmission oil filter (pressure line) used as service replacement

1шт.

25

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, male (Used with D46132 filter only), D46132 transmission oil filter (pressure line) used as service replacement, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D46132 transmission oil filter (pressure line) used as service replacement

1шт.

G102080

FILTER

ASSY., D46132 transmission oil filter (pressure line) used as service replacement

1шт.

G102111

HYDRAULIC OIL FILTER

KIT element, D46132 transmission oil filter (pressure line) used as service replacement

1шт.
