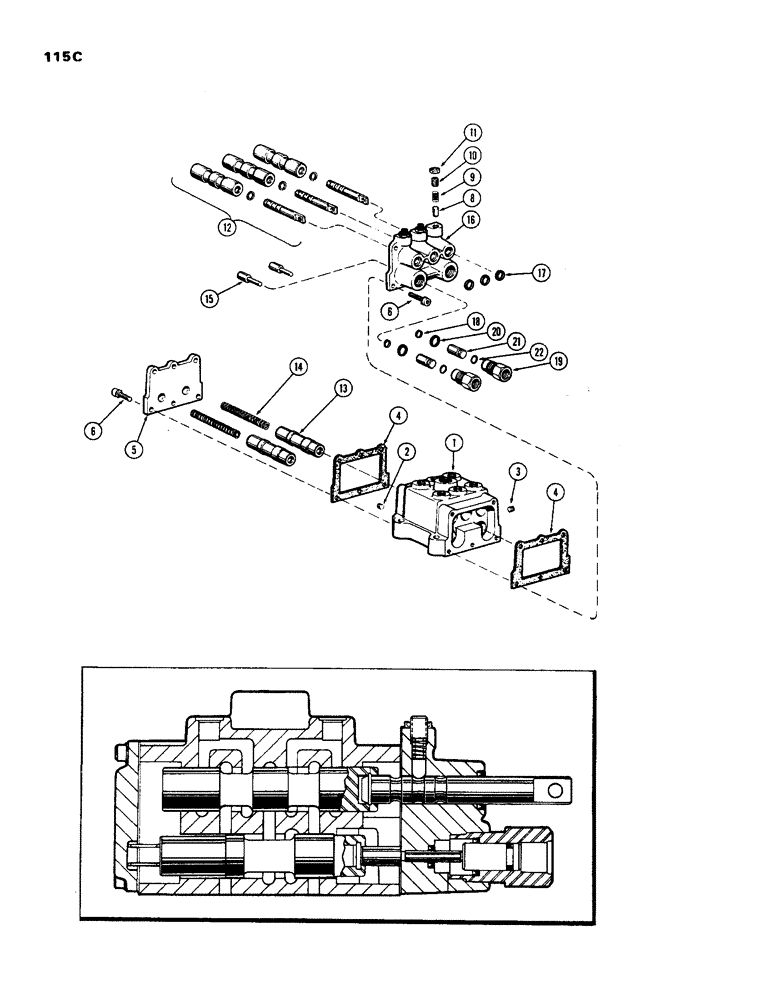

Запчасти Case 450 (115C) - R20724 CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

ASSY. - hydraulic, trans. control, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

221-42

X,Sltd, 1/4" NPT

PLUG - (1/4" P.T. sltd. hd.)

1шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- (1/8" P.T., ctsk. sckt. hd.)

2шт.

4

35665

GASKET

- front and rear cover

2шт.

5

R21384

COVER

- rear, valve

1шт.

6

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - 1/4 x 2-5/8" N.F. Sems

11шт.

8

71120

VALVE

DETENT - valve

3шт.

9

71119

SPRING

- detent

3шт.

10

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set (3/8 x 1/2" N.C., socket hd.)

3шт.

11

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

12

G107659

ROD

SPOOL - valve

3шт.

71146 IS A 2 PC SPOOL ASSY. HELD TOGETHER WITH 71144 SNAPRING.

1шт.

13

74916

SPOOL

VALVE - brake

2шт.

14

71125

SPRING

- brake valve

2шт.

15

71141

ROD

- push, brake valve

2шт.

16

R13941

COVER ASSY

. - front, valve, Includes: Ref. 17 and 18

1шт.

17

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft (5/8 x 13/16 x 3/32")

3шт.

18

51200266

SEAL

- shaft (1/4 x 1/2 x 1/8")

2шт.

19

72989

X

HOUSING ASSY. - piston, brake valve (w/71129 piston), Includes: Ref. 20

2шт.

20

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

"O" RING - piston housing (5/8 x 13/16 x 3/32")

1шт.

21

71129

X

PISTON - valve (15/16" long w/72989 housing)

2шт.

19

A50455

HOUSING

ASSY. - piston, brake valve (w/A50457 piston), Includes: Ref. 20

2шт.

20

35015

"O" RING - piston housing (5/8 x 13/16 x 3/32")

1шт.

21

A50457

PISTON

- valve (1-19/32" long w/A50455 housing)

2шт.

22

71131

RING

- quad (27/64 x 5/8 x 7/64")

2шт.
