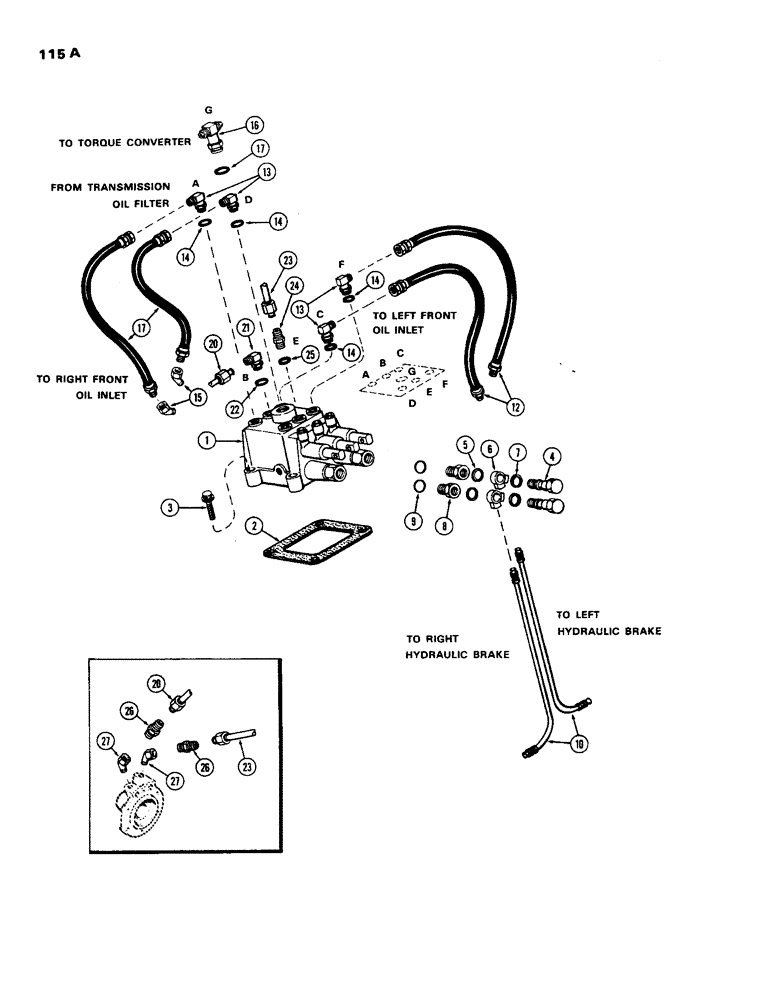

Запчасти Case 450 (115A) - TRANSMISSION HYDRAULICS, 1ST USED TRANS. SN 2661238 (03) - TRANSMISSION

1

R20724

VALVE

ASSY. - control, hydraulic (Repairs Figure 115C)

1шт.

2

A50113

GASKET

- valve

1шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SCREW - ferry cap (3/8 x 2" N.C., 12 pt. ctsk. hd.)

4шт.

4

A12864

BOLT

- connection, brake tube

2шт.

5

33260

GASKET

- connection, inner (33/64" I.D. x 13/16" O.D.)

2шт.

6

51200243

FITTING

- brake line

2шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connection, outer (19/32" I.D. x 13/16" O.D.)

2шт.

8

72125

ADAPTER

- connection bolt

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter seal (41/64 x 51/64 x 5/64")

2шт.

10

A50358

TUBE

- brake, Serial Range: valve-cylinder

2шт.

12

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

6.35 mm ID x 419.00 mm, SAE 100R1 - Hydraulic valve to housing

4шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- hose to valve, 90 degree adjustable, Includes: Ref. 14

4шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

15

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, Hose to housing

2шт.

16

A50356

FITTING

TEE - valve inlet, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 1-1/8 x 3/32"

1шт.

20

A50470

TUBE

- valve to trans. cover (forward)

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- tube to valve (90 degree adjustable), Includes: Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

23

A50471

TUBE

- valve to trans. cover (reverse)

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - tube to valve, Incl. Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

26

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - tube to cover, 3/8" tube x 1/4" P.T.

2шт.

27

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male

2шт.
