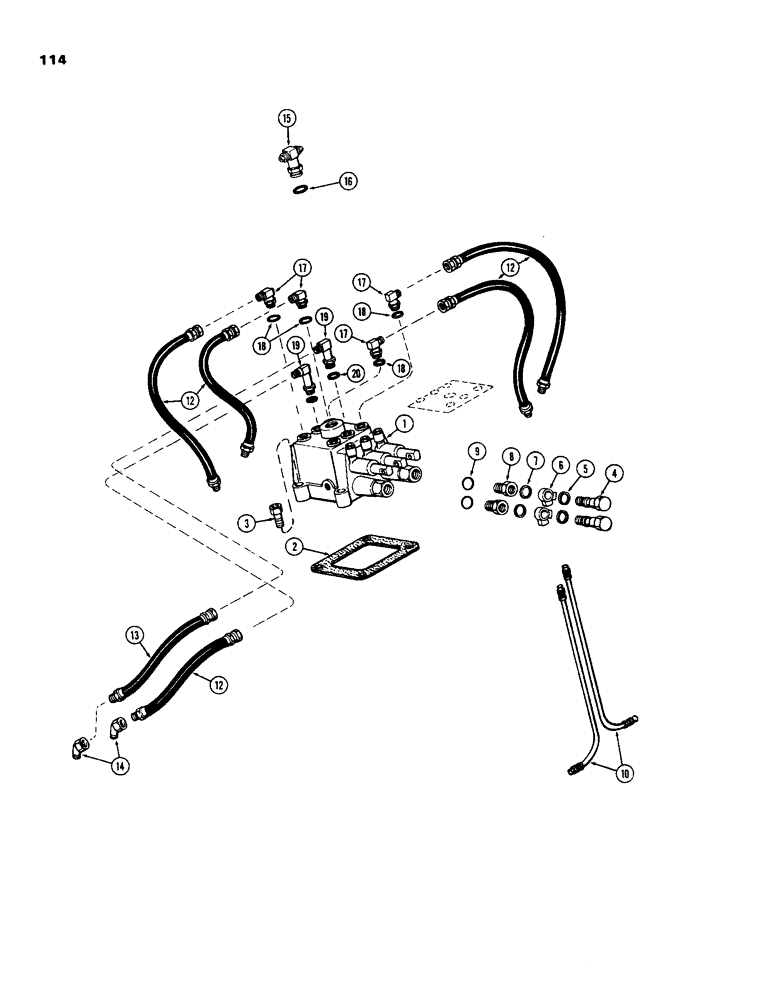

Запчасти Case 450 (114) - TRANSMISSION HYDRAULICS, USED PRIOR TO TRANS. SN 2661238 (03) - TRANSMISSION

1

R20724

VALVE

ASSY. - control, hydraulic (Repairs Figure 115C)

1шт.

2

A50113

GASKET

- valve

1шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SCREW - ferry cap (3/8 x 2" N.C., 12 pt. ctsk hd.)

4шт.

4

A12864

BOLT

- connection, brake tube

2шт.

5

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connection, inner (33/64" I.D. x 13/16" O.D.)

2шт.

6

51200243

FITTING

- brake line

2шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- connection, outer (19/32" I.D. x 13/16" O.D.)

2шт.

8

72125

ADAPTER

- connection bolt

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter seal (41/64 x 51/64 x 5/64")

2шт.

10

A50358

TUBE

- brake, Serial Range: valve-cylinder

2шт.

12

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

6.35 mm ID x 419.00 mm, SAE 100R1 - Hydraulic valve to housing

5шт.

13

A50294

HYDRAULIC HOSE,14.25"

- Valve to LH side 14.25"

1шт.

14

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, Hose to housing

2шт.

15

A50356

FITTING

TEE - valve inlet, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow seal, 3/4 x 1-1/8 x 3/32"

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degree, Includes: Ref. 18

4шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow seal

1шт.

19

R20739

FITTING

ELBOW - adjustable (90 degree long), Includes: Ref. 20

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow seal

1шт.
