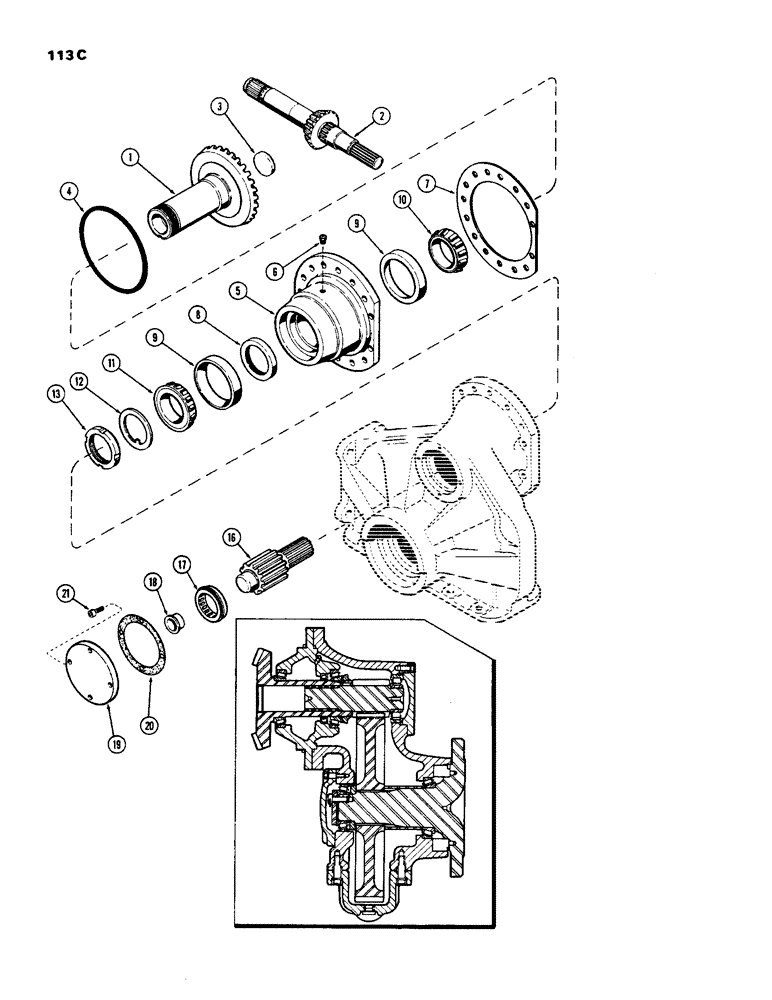

Запчасти Case 450 (113C) - FINAL DRIVE PINION & SHAFT (03) - TRANSMISSION

A50275

GEAR-SET

SHAFT & GEAR - pinion, final drive (matched set), Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

GEAR - pinion (Order A50275 matched set)

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - bevel pinion (Order A50275 matched set)

1шт.

3

A50099

PLUG

- bevel, 2-17/64" cup type

2шт.

4

A50108

SEALING RING

RING - final drive seal, 8-1/4 x 8-1/2 x 1/8"

2шт.

5

A50193

CARRIER

- pinion gear

2шт.

6

A50096

VALVE

- relief, pressure

2шт.

7

A50199

SHIM,.003" Thk

Carrier to trans. .003" Thk

1шт.

7

A50198

SHIM,.005" Thk

Carrier to trans. .005" Thk

1шт.

8

A50419

OIL SEAL

- oil carrier (3 x 4 x 15/32") (Replaces A50097)

2шт.

9

F9803

BEARING CUP

CUP - bearing, inner & outer

4шт.

10

F9804

ROLLER BEARING

CONE - bearing, inner

2шт.

11

A50197

ROLLER BEARING,3" ID x 0.906"

CONE - bearing, pinion outer

2шт.

12

A50103

WASHER

- keyed, bearing

2шт.

13

A50167

NUT

- lock, pinion gear

2шт.

16

A50143

SHAFT

- pinion

2шт.

17

A50145

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25.01mm W

BEARING - outer, pinion shaft

2шт.

18

A50144

ROLLER BEARING,44.99mm ID x 25mm W

RACE - bearing

2шт.

19

A50345

COVER

- pinion shaft

2шт.

20

A50346

GASKET

- cover

2шт.

21

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SCREW - ferry cap, 3/8 x 3/4" N.C. hex. socket

6шт.
