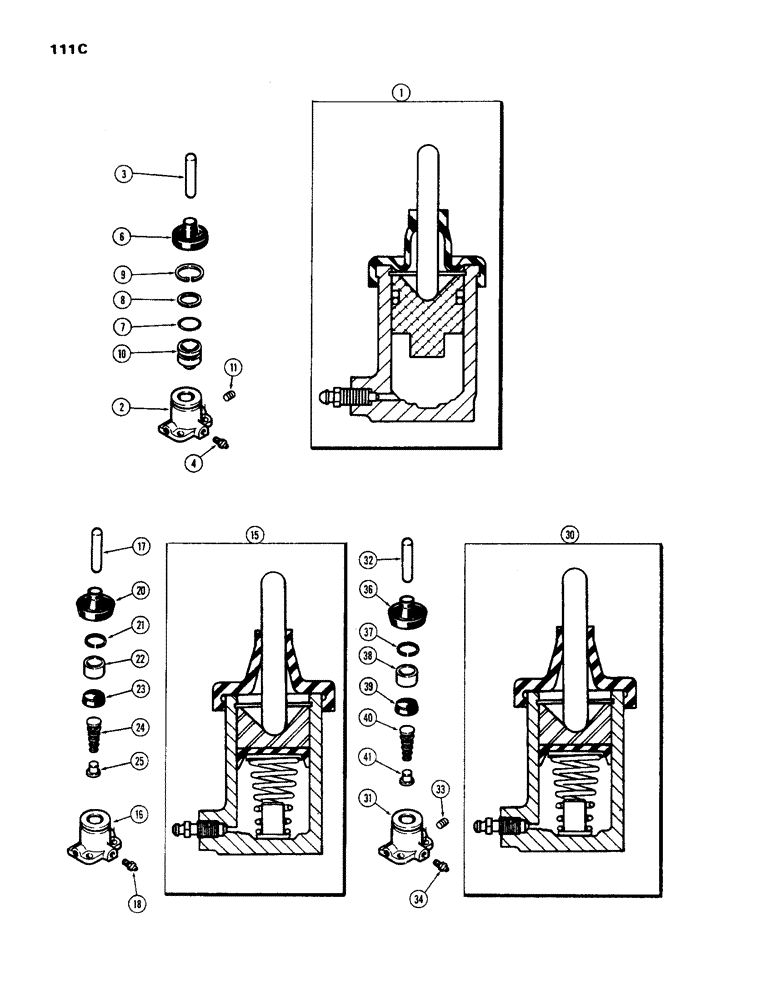

Запчасти Case 450 (111C) - HYDRAULIC BRAKE CYLINDER, A50557 CYLINDER ASSY (03) - TRANSMISSION

1

A50557

CYLINDER

ASSY. - (Replaces A50394 & A50485), Includes: Ref. 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A50557)

1шт.

3

A41489

ROD

- push

1шт.

4

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder

1шт.

A42875

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 8

1шт.

6

A41490

BOOT

- dust, push rod

1шт.

7

NSS

NOT SOLD SEPARAT

"O" RING - piston (Order A42875)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston (Order A42875)

1шт.

9

A30975

SNAP RING,1.188", Int, #118

piston 1.188", Int, #118

1шт.

10

A42874

PISTON

- cylinder

1шт.

11

221-1062

REDUCER,Hex, 1" x 1/4" NPT

PLUG - connector (1/4" tube x 7/16" N.C.)

2шт.

15

A50485

SCREW

CYLINDER ASSY. - (Order A50557), A50485 cylinder assembly 1st used trans s/n 2661567, Includes: Ref. 16 - 25

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - (Order A50557), A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

17

A41489

ROD

- push, A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

18

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

A41506

CYLINDER

REPAIR KIT - cylinder, A50485 cylinder assembly 1st used trans s/n 2661567, Includes: Ref. 20 - 25

1шт.

20

A41490

BOOT

- dust, push rod, A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

21

A36277

SNAP RING,1.125", Int, #112

piston, A50485 cylinder assembly 1st used trans s/n 2661567 1.125", Int, #112

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - (Order A41506), A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

23

NSS

NOT SOLD SEPARAT

CUP - piston (Order A41506), A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

24

A42243

SPRING ASSY. - pressure, A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

25

NSS

NOT SOLD SEPARAT

STOP - spring (Order A41506), A50485 cylinder assembly 1st used trans s/n 2661567

1шт.

30

A50394

CYLINDER ASSY. - (Order A50557), A50394 cylinder assembly used prior to trans s/n 2661567, Includes: Ref. 31 - 41

2шт.

31

NSS

NOT SOLD SEPARAT

BODY - (Order A50557), A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

32

A41489

ROD

- push, A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

33

222-1062

PLUG,7/16"-24, Inv Fl

- port, A50394 cylinder assembly used prior to trans s/n 2661567 7/16"-24, Inv Fl

1шт.

34

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

A41506

CYLINDER

REPAIR KIT - brake, A50394 cylinder assembly used prior to trans s/n 2661567, Includes: Ref. 36 - 41

1шт.

36

A41490

BOOT

- dust, push rod, A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

37

A36277

SNAP RING,1.125", Int, #112

piston, A50394 cylinder assembly used prior to trans s/n 2661567 1.125", Int, #112

1шт.

38

NSS

NOT SOLD SEPARAT

PISTON - cylinder, brake (Order A41506), A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

39

NSS

NOT SOLD SEPARAT

CUP - piston (Order A41506), A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

40

A42243

SPRING ASSY. - pressure (Replaces A41778), A50394 cylinder assembly used prior to trans s/n 2661567

1шт.

41

NSS

NOT SOLD SEPARAT

STOP - spring (Order A41506), A50394 cylinder assembly used prior to trans s/n 2661567

1шт.
