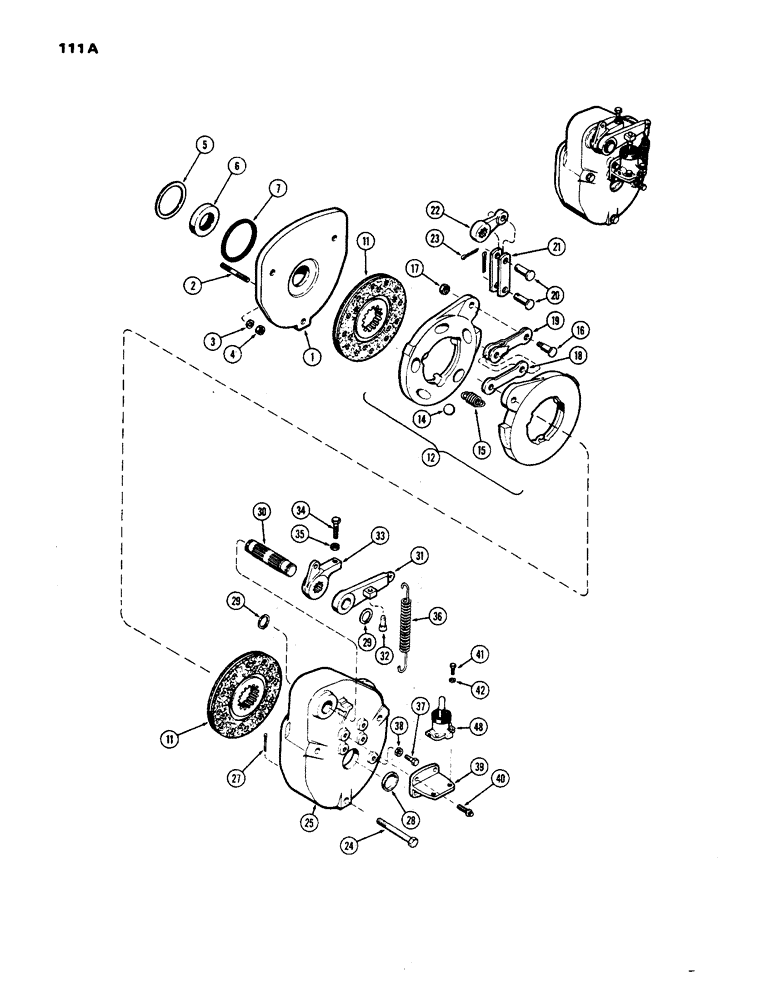

Запчасти Case 450 (111A) - HYDRAULIC BRAKES, W/TWO PIECE BREAK LEVER (03) - TRANSMISSION

1

A50184

FLANGE

PLATE - mounting, L.H. & R.H. Brake

2шт.

2

A50241

STUD

- brake plate (1/2" N.C. x 2-1/8")

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

8шт.

5

A50061

SHIM,0.076mm Thk

(.003"), Pinion shaft 0.076mm Thk

1шт.

5

A50062

SHIM,0.127mm Thk

(.005"), Pinion shaft 0.127mm Thk

1шт.

5

A50063

SHIM,0.254mm Thk

(.010"), Pinion shaft 0.254mm Thk

1шт.

6

A50418

OIL SEAL

- oil, pinion shaft

2шт.

7

A50055

SEALING RING

RING - seal, brake plate (3-1/4 x 3-7/16 x 3/32")

2шт.

11

A50829

DISC

- brake (Replaces A50117)

4шт.

12

R18531

DISC

ACTUATOR ASSY. - brake disc., Includes: Ref. 14 - 19

2шт.

14

211-19

BALL,7/8" Dia

- steel (.) 7/8" Dia

5шт.

15

A30897

SPRING

- tension

3шт.

16

A30898

STEP BOLT

BOLT - dowel, plate retainer

2шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam (5/16" N.F. hex.)

2шт.

18

R18533

LINK

- plate

1шт.

19

F77868

LINK

YOKE - link

1шт.

20

R15370

PIN

- link

4шт.

21

R15369

LINK

- disc actuating

4шт.

22

R15372

LEVER

- disc actuating

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

24

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

25

A50206

COVER

- R.H. brake

1шт.

25

A50207

COVER

- L.H. brake

1шт.

27

R14605

PIN

- cleaner, cover drain hole

4шт.

28

41-1628

PLUG,Cup, 1 3/4", Stainless

- cover (1-3/4" cup type)

2шт.

29

B18208

SNAP RING,#100, Ext

brake shaft #100, Ext

4шт.

30

R15373

SHAFT - brake

2шт.

31

A50122

LEVER - brake, R.H.

1шт.

31

A50123

LEVER - brake, L.H.

1шт.

32

A24141

CUP - seating, push rod

2шт.

33

R17182

LEVER - adjusting, brake

2шт.

34

A50377

BOLT - adjusting lever (3/8 x 1-1/2" N.C. hex)

2шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam (3/8" N.C. hex.)

2шт.

36

R15380

SPRING

- tension, brake

2шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex)

2шт.

38

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

39

A50119

BRACKET

- mounting, brake cylinder

2шт.

40

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - ferry cup (3/8" x 1" N.C. 12 pt. hd.)

8шт.

41

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

48

REF

INSTRUCTION

CYLINDER ASSY. - brake (Order from Figure 111C)

2шт.
