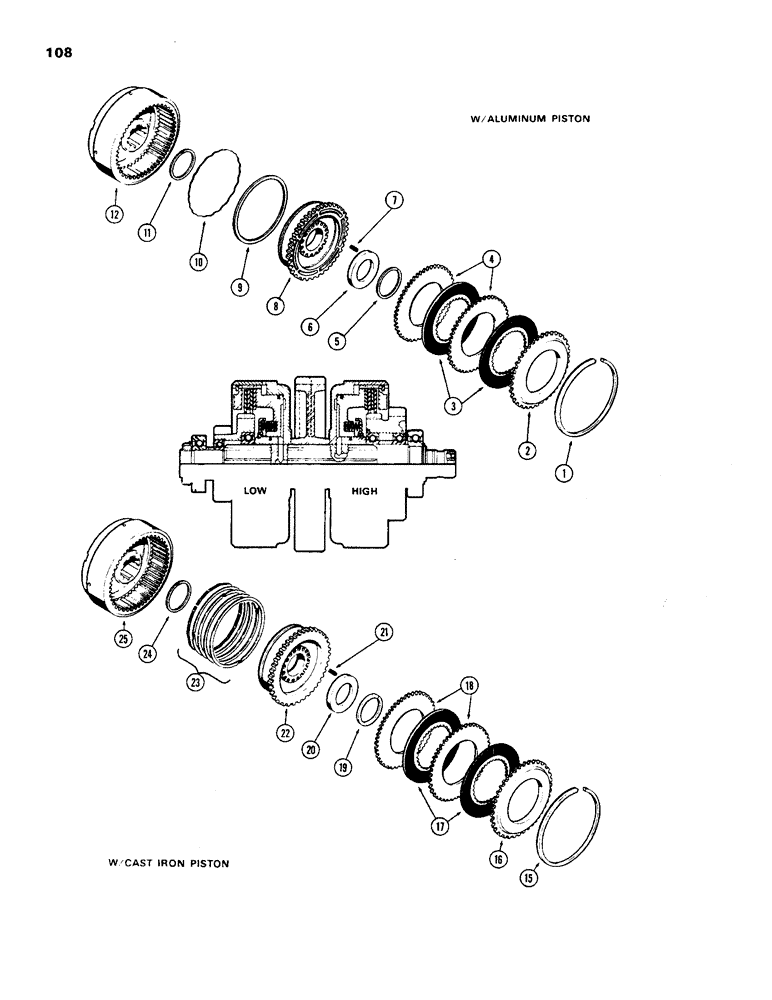

Запчасти Case 450 (108) - HIGH & LOW SPEED CLUTCH, WITH ALUMINUM PISTON, 1ST USED TRANS. SN2644129 (03) - TRANSMISSION

A50412

CLUTCH

ASSY. - high and low speed, Includes: Ref. 1 - 12

4шт.

1

30785

RING

- snap, backing plate

1шт.

2

A50030

PLATE

- backing

1шт.

3

A50029

PLATE

- clutch (Sintered; inner tooth)

2шт.

4

A50028

PLATE

- clutch (Steel; outer tooth)

2шт.

5

A27233

RING

- snap, spring retainer

1шт.

6

R11016

RETAINER

- spring

1шт.

7

R11015

SPRING

- piston

18шт.

8

A50571

PISTON

- clutch (aluminum)

1шт.

9

A50414

SEALING RING

RING - sealing, piston

1шт.

10

A50416

SPRING

EXPANDER - piston ring

1шт.

11

A50415

SEAL

RING - sealing, drum hub

1шт.

12

A50288

DRUM

- clutch

1шт.

A50287

X

CLUTCH ASSY. - high and low speed (Order A50412), w/ cast iron piston used prior to trans s/n 2644129, Includes: Ref. 15 - 25

4шт.

15

30785

RING

- snap, backing plate, w/ cast iron piston used prior to trans s/n 2644129

1шт.

16

A50030

PLATE

- backing, w/ cast iron piston used prior to trans s/n 2644129

1шт.

17

A50029

PLATE

- clutch (Sintered; inner tooth), w/ cast iron piston used prior to trans s/n 2644129

2шт.

18

A50028

PLATE

- clutch (Steel; outer tooth), w/ cast iron piston used prior to trans s/n 2644129

2шт.

19

A27233

RING

- snap, spring retainer, w/ cast iron piston used prior to trans s/n 2644129

1шт.

20

R11016

RETAINER

- spring, w/ cast iron piston used prior to trans s/n 2644129

1шт.

21

R11015

SPRING

- piston, w/ cast iron piston used prior to trans s/n 2644129

18шт.

22

A50186

PISTON

- clutch, w/ cast iron piston used prior to trans s/n 2644129

1шт.

23

A50027

RING

KIT - seal, piston, w/ cast iron piston used prior to trans s/n 2644129

1шт.

24

A50415

SEAL

"O" RING - drum sealing (Replaces A50025), w/ cast iron piston used prior to trans s/n 2644129

1шт.

25

A50288

DRUM

- clutch, w/ cast iron piston used prior to trans s/n 2644129

1шт.
